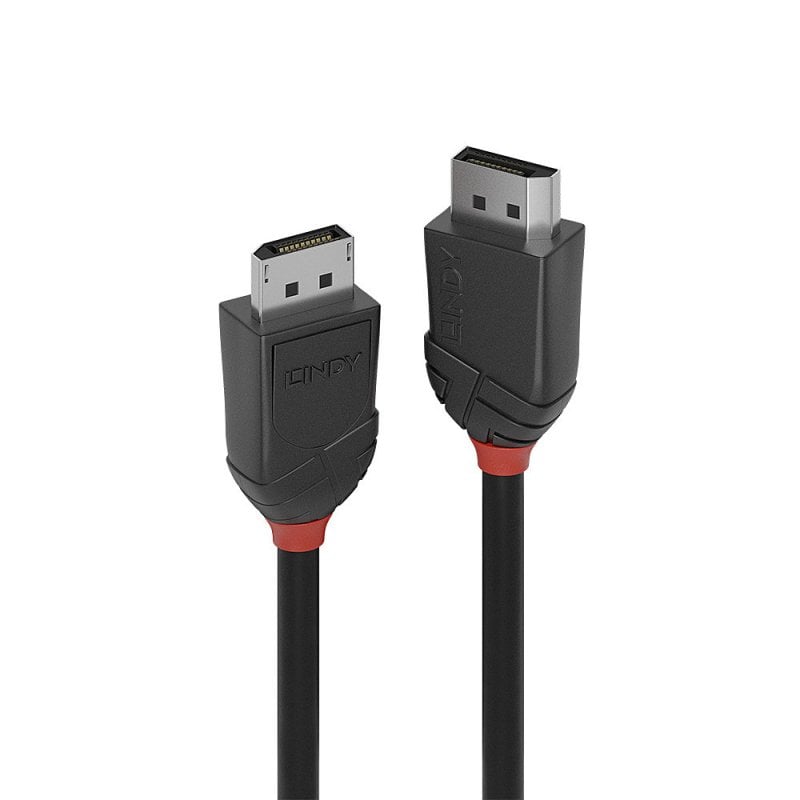

1m DisplayPort 2.1 80Gbps Cable, Black Line

Part No: 36520
  • £21.98
199 In Stock Now   |
Loading...

Product Summary

  • Entry level DisplayPort 2.1 cable for home and small office applications
  • Supports resolutions up to 16K@60Hz 4:4:4 10-Bit with DSC (Display Screen Compression)
  • Robust ABS housing 24K gold plated connectors and contacts
  • Triple shielded cable, corrosion resistant bare copper 30AWG conductors
  • DisplayPort 2.1, 16K, 10K, 8K 4K, 80Gbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort 2.1 cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

UHD resolutions up to 16K 15360x8640@60Hz 4:4:4 10-Bit With DSC (Display Screen Compression). DSC is a visually lossless compression standard that allows higher resolutions and refresh rates by reducing the data bandwidth required for transmission. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby True HD.

With support for the full 80Gbps bandwidth of DisplayPort 2.1 (UHBR20), Black Line cables deliver the highest possible data rates over a passive copper connection. This enables uncompressed 8K video at 60Hz with 10-bit 4:4:4 chroma, or 4K at ultra-high refresh rates up to 240Hz ideal for immersive applications such as high-end gaming, virtual production, simulation, and medical imaging. The extreme bandwidth also ensures full compatibility with emerging up to 16K display formats when using DSC.

Black Line DisplayPort 2.1 80G cables are premium connections that feature triple shielding with 30AWG bare copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Black Line DisplayPort 2.1 80G Cables are available in lengths: 1m, 2m, 3m.

Connectors

  • Connector A: DisplayPort Male
  • Connector B: DisplayPort Male
  • Housing Material: ABS
  • Connector Plating: 24K Gold 15µm
  • Pin Construction: Gold Plated
  • Pin Plating: 24K Gold 3µm
  • Dimensions (approx.) WxDxH: 20.7x42.6x13mm (0.81x1.68x0.51in)

Cable Construction

  • Length: 1m (3.28ft)
  • Standard: DisplayPort 2.1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7mm (0.27in)
  • Jacket Material: PVC
  • Conductor Material: Bare Copper
  • Conductor Gauge: 30 AWG
  • Shielding: Aluminium Mylar

Specifications

  • Supported Bandwidth: 80Gbps
  • Maximum Resolution: 16360 x 8640 (16K) @ 60Hz, 4:4:4, 10-bit
  • Nominal Attenuation:
    • 100 MHz - 450 MHz < 5.1 dB
    • 450 MHz - 8100 MHz  < 33.28 dB
    • 8100 MHz - 13500 MHz < 38.0 dB
  • Minimum Bend Radius: 48mm (1.89in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH, UL (Raw Cable)

Purchasing Information

  • No.: 36520
  • EAN: 4002888365208

This product is also available in other lengths

  • 36520 - 1m (3.28ft)
  • 36521 - 2m (6.56ft)
  • 36522 - 3m (9.84ft)
