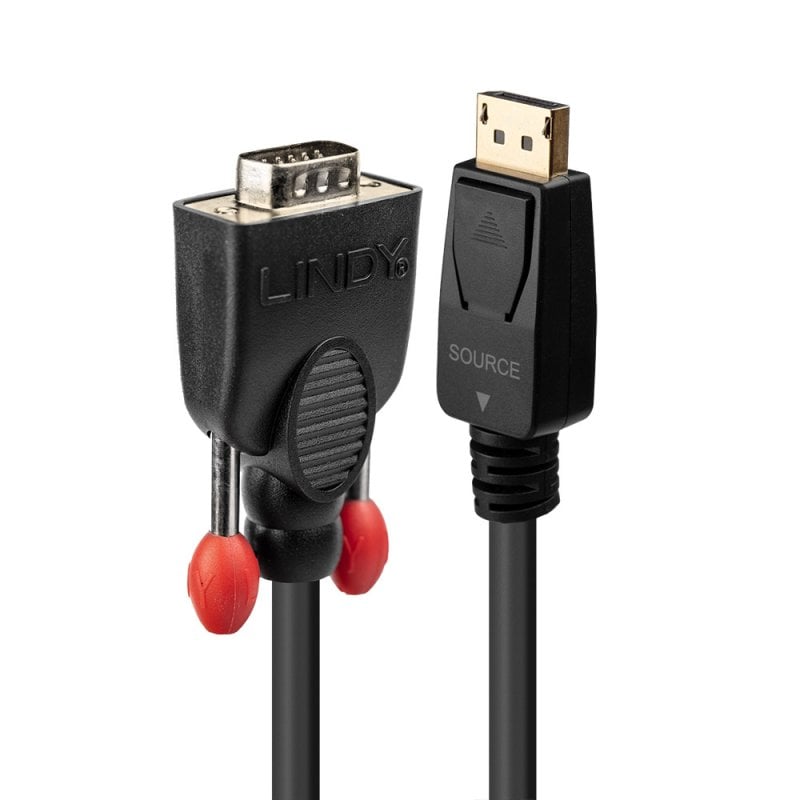

2m Display Port to VGA Adapter Cable

The Lindy DisplayPort to VGA Cable is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a legacy VGA display or projector. It converts the digital signal from the DisplayPort connection into an analogue VGA signal and supports high definition video resolutions up to 1920x1200@60Hz.

This cable can also be used to add another display to extend the available desktop workspace and increase productivity.

Connectors

• Connector A: DisplayPort Male
• Connector B: VGA Male
• Housing Material:
• DisplayPort: ABS
• VGA: PVC
• Connector Plating: Gold plated
• Pin Construction: Copper
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH:
DisplayPort: 42x19.8x11.6mm (1.65x0.78x0.46in)
VGA: 53x33.8x16.7mm (2.09x1.33x0.66in)

Cable Construction

• Length: 2m (6.56ft)
• Standard: VGA, DisplayPort 1.1
• Colour: Black
• Type: Round
• Jacket Diameter: 6mm (0.24in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 28AWG
• Shielding: Aluminum Braid 85%

Specifications

• Supported Bandwidth: 1.65Gbps
• Maximum Resolution: 1920x1200@60Hz
• Nominal Attenuation:
100MHz-450MHz 2.44-5.099dB
450MHz-8100MHz  5.094-32.906dB
• Minimum Bend Radius: 60mm (2.36in)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature:  -10°C - 85°C (14°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH, UL (Raw Cable) & California Proposition 65

Purchasing Information

• No.41942
• EAN: 4002888419420

• Datasheet for 41942 DisplayPort to VGA Cable
• UKCA DoC for 41942 DisplayPort/VGA converter cable, 2m
• Product Safety Information
