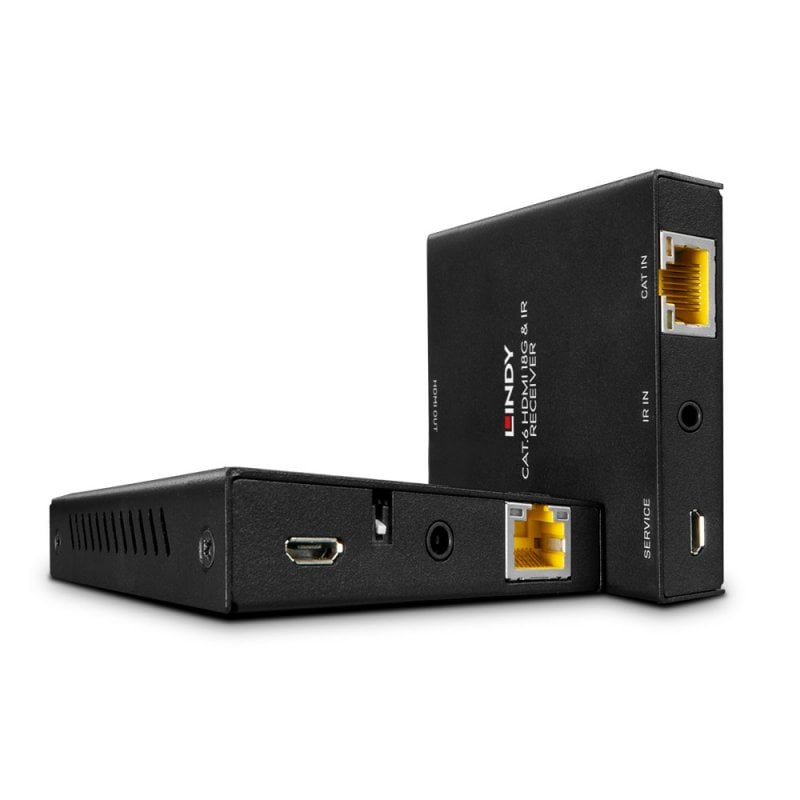

50m Cat.6 HDMI 4K60 & IR Extender with PoC & Loop Out

The Lindy Cat.6 HDMI® 4K60 & IR Extender with PoC is an effective, reliable solution for extending high quality 4K HDMI® signals over distances up to 50m (164.04ft) with standard Cat.5e/6 network cable. Support for the HDMI® 2.0 18G specification allows the transmission of highly detailed 4K Ultra HD resolutions. With support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut, perfect for a true home cinema experience or eye-catching digital signage in retail settings. HDCP 2.2 compliance allows 4K video content from copy protected sources such as Blu-Ray movies, media players and streaming services to be viewed without compatibility issues. Support for lossless audio formats including DolbyTrueHD and DTS-HD adds powerful multi-channel sound to video content, providing an enhanced experience and sense of realism for the viewer.

The extender features an HDMI® loop-through output on the transmitter which allows for simultaneous viewing using local and remote displays. This versatility provides a suitable solution for use in various scenarios such as educational presentation systems, home cinema, entertainment systems, or trade shows. The built in EDID dip switch enables the user to control which EDID is taken from either display, making installation and configuration simple ensuring maximum compatibility with HDMI displays and projectors. PoC allows both power and data signals over a Cat.6 cable in a point to point configuration, adding flexibility as only one power supply is required for both the transmitter and receiver units. Ideal when power outlets are limited.

Featuring IR Pass-through, the source equipment can be seamlessly controlled from the remote displays side of the installation using compatible infrared remote controls. This provides simple and complete control for the user.

Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: HDMI®
• Interface Standard: 2.0
• Supported Bandwidth: 18Gbps
• Maximum Distance: 50m (164.04ft) – Cat.6/7, 30m (98.42ft)– Cat.5e
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass Through: Pass-through
• Supported Audio: Up to 7.1 (Pass-through)
• Separate Audio Ports: -
• IR Support: 20-60kHz
• CEC Support: -
• Serial Interface: -
• Transmission Protocol: -
• Transmission Medium: 1 x Cat.5e/6 or higher
• Laser Class (only for Fibre): -
• Wavelength (only for Fibre): -
• Chipset: Transmitter: SIL9396 / Receiver: SIL9630
• Special Features:
PoC (Power over Cable)
IR Pass-through
Loop Out

Connectors

• Transmitter Input: HDMI® Type A 19pin (Female), Micro-USB (Female), DC12V Power
• Transmitter Output: HDMI® Type A 19pin (Female), RJ45 (Female), IR (Female)
• Receiver Input: RJ45 (Female), IR (Female), Micro-USB (Female)
• Receiver Ouput: HDMI® Type A 19pin (Female)
• Bidirectonal Ports: -
• Power: 5.5/2.1mm barrel size

Physical Properties

• Dimensions (approx.) WxDxH:
Transmitter: 70x97x15mm (2.76x3.82x0.59in)
Receiver: 70x97x15mm (2.76x3.82x0.59in)
• Housing Material: Metal
• Net Weight:
Transmitter: 0.156kg (0.34lb)
Receiver: 0.151kg (0.33lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 – 90% RH (no condensation)
• Power Requirements: 12VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 220x130x70mm (8.66x5.12x2.76in)
• Gross Weight: 0.605kg (1.33lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• Transmitter
• Receiver
• 12VDC 1A Multi-country Power Supply (UK, EU, US & AUS)
• IR Transmitter
• IR Receiver
• Mounting kit with 4x brackets and 8x screws
• Lindy Manual

Purchasing Information

• No.: 38205
• EAN: 4002888383509
