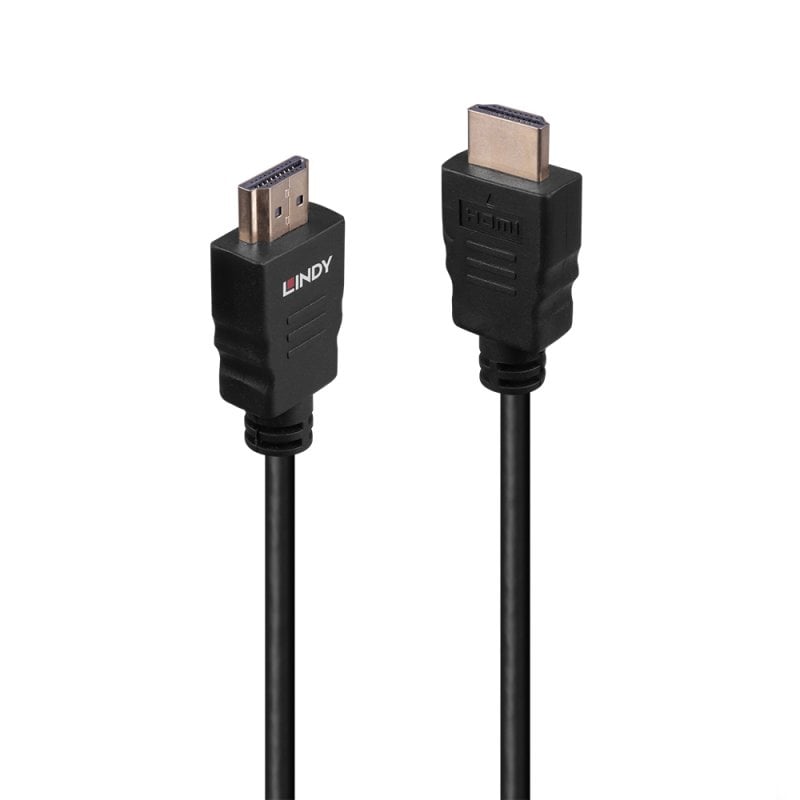

5m High Speed HDMI Cable

The Lindy HDMI® Cable is designed with sustainability in mind, incorporating up to 50% recycled copper and a jacket made entirely from recycled TPE materials. The cable ensures high performance while supporting eco-conscious manufacturing.

The cable features triple shielded construction with 30AWG bare copper for premium performance, featuring gold connectors and gold flashed contacts to maintain signal integrity and reliability.

Supporting 18Gbps bandwidth the Lindy HDMI® Cable can support UHD resolutions up to 3840x2160@60z 4:4:4 8-bit, Whilst also transmitting up to 30 channel audio including Dolby® True HD & DTS-HD Master Audio.

The Lindy HDMI® Cable is available in lengths from 1 - 5m.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Connectors

• Connector A: HDMI® Type A Male
• Connector B: HDMI® Type A Male
• Housing Material: TPE (Thermoplastic Elastomer)
• Connector Plating: Gold Plating
• Pin Construction: Copper Alloy
• Pin Plating: Gold Plating
• Dimensions (approx.) WxDxH: 20.3 x 35.8 x 10.5mm (0.79 x 1.40  x 0.41in)

Cable Construction

• Length: 5m (16.44ft)
• Standard: High Speed HDMI®
• Colour: Black
• Type: Round
• Jacket Diameter: 7mm (0.27in)
• Jacket Material: TPE (Thermoplastic Elastomer)
• Conductor Material: Copper
• Conductor Gauge: 28AWG
• Shielding: Tin Plated
• Braid Shielding: Aluminium-Mylar

Specifications

• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• Nominal Attenuation:
  • 300kHz-825MHz <5dB
  • 825MHz-2.475GHz <5dB
  • 2.475GHz-4.125GHz <12dB
  • 4.125GHz-5.1GHz <20dB
• Minimum Bend Radius: 48mm (1.89in)
• Operating Temperature: -30°C - 80°C (-22°F - 176°F)
• Storage Temperature: -10°C - 85°C (14°F - 185°F)
• ATC Approved: Yes

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 37413
• EAN: 4002888374132

This product is also available in other lengths

• 37410 - 1m (3.28ft)
• 37411 - 2m (6.56ft)
• 37412 - 3m (9.84ft)
• 37413 - 5m (16.44ft)

• UKCA DoC 34710-34713
