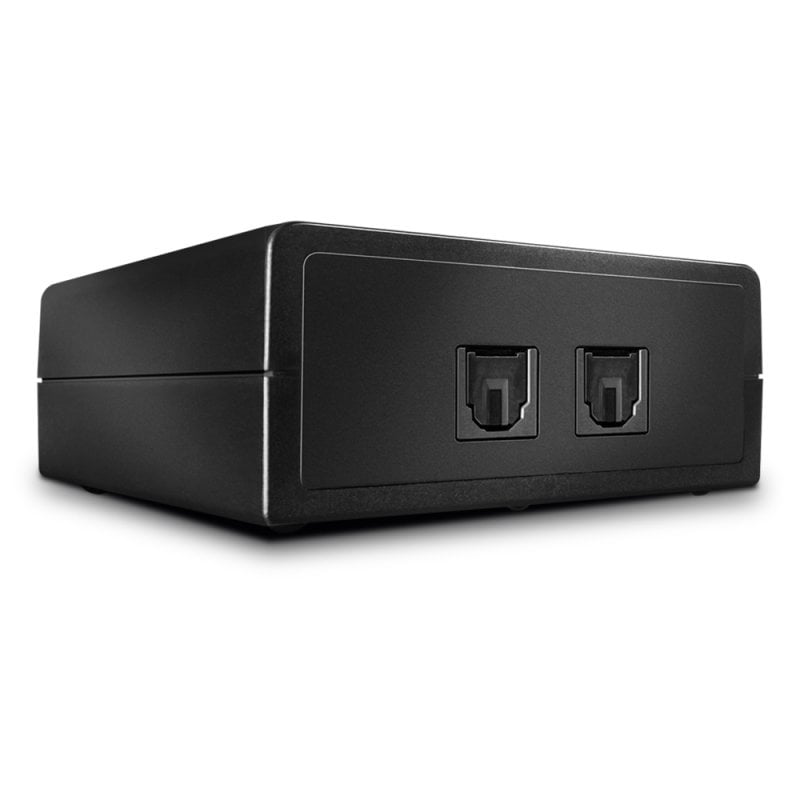

2 Port Automatic Optical Audio Switch

The Lindy 2 Port Automatic Optical Audio Switch allows users to connect two digital optical Toslink sources to a single optical TosLink (SPDIF) input on an AV amplifier, Hi-Fi or home cinema system.

The optical switch will automatically detect the live signal and switch to this channel.

Ideal for use with games consoles, HD players, set top boxes, PC’s etc. and saves on wear and tear of constant plugging and unplugging of cables.

Please note: TosLink cables are not included.

Specifications

• AV Interface: TosLink
• Interface Standard: -
• Supports Bandwidth: 32 - 96kHz
• Maximum Resolution: -
• HDCP Support: -
• Supported Audio: S/PDIF, 2-Channel LPCM, Uncompressed PCM / LPCM, Dolby AC-3, Dolby 5.1, Dolby Digital and DTS
• Separate Audio Ports: -
• IR Support: -
• CEC Support: -
• Serial Interface: -
• Special Features: Automatic switching of active ports

Connectors

• Input: 2 x TosLink (Optical Fibre)
• Output: 1 x TosLink (Optical Fibre)
• Control: -
• Power: 5.5/2.1mm DC socket

Physical Properties

• Dimensions (approx.) WxDxH: 75x65x30mm (2.95x2.56x1.18in)
• Housing Material: Plastic
• Net Weight: 0.055kg (0.12lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 20 - 80% RH (non-condensing)
• Power Requirements: 5VDC 1.2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 155x120x60mm (6.1x4.72x2.36in)
• Gross Weight: 0.273kg (0.6lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH

Package contents

• 2 Port Automatic Optical Audio Switch
• USB A to DC Cable, Barrel Size: 5.5/2.1mm
• Lindy Manual

Purchasing Information

• No.: 70436
• EAN: 4002888704366

• Manual for 70436 2 Port Automatic Optical Audio Switch
• Manual For Lindy 70436/70437 Auto Optical Audio Switch
• UKCA Doc for 70436/70437
• Product Safety Information
