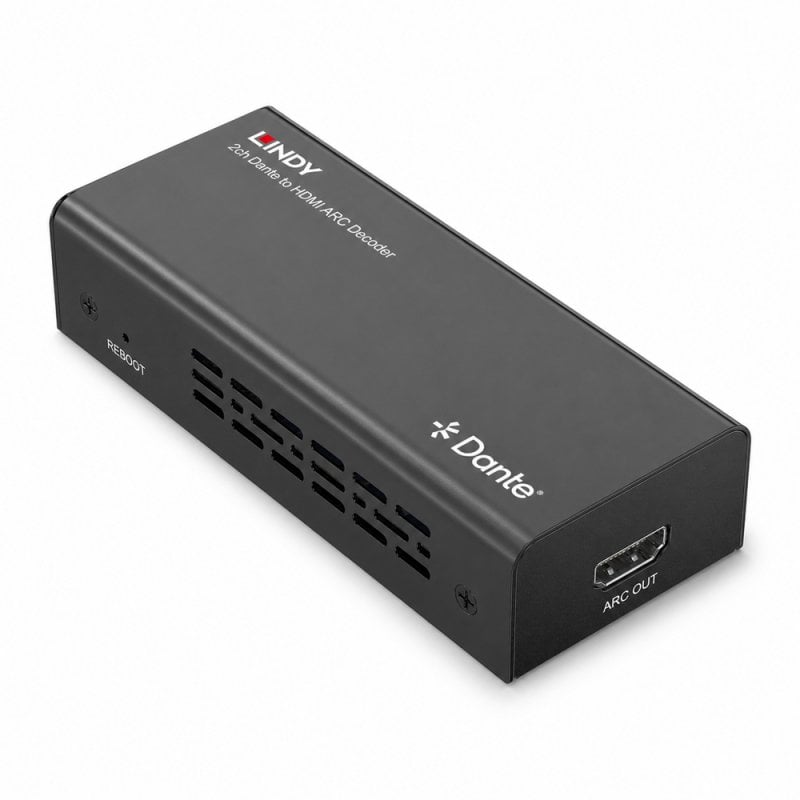

2ch Dante® to HDMI® ARC Decoder

Part No: 70621
  • £215.38
67 In Stock Now   |
Loading...

Product Summary

  • Converts Dante® network audio into high quality HDMI® ARC audio, enabling seamless integration with displays and AV systems in professional IP-based environments
  • Supports multiple sample rates up to 96kHz at 24-bit resolution, ensuring accurate, low latency audio playback across corporate, education, hospitality and digital signage applications
  • Compatible with Dante® and AES67 audio systems, providing flexible deployment within scalable and interoperable networked audio infrastructures
  • 802.3af PoE support enables simplified single-cable installation, while optional USB-C powering provides additional flexibility for AV racks, meeting rooms and distributed audio systems
  • 3 year warranty

SECTION 1 - HERO HEADLINE

Convert Dante® Audio into HDMI® ARC Output



The Lindy 2ch Dante® to HDMI® ARC Decoder provides a reliable solution for converting Dante® network audio into high quality HDMI® ARC audio, making it ideal for professional AV, conferencing, education and digital signage environments.

SECTION 2 - FEATURE CALLOUT

Professional Dante® Audio Decoding for HDMI® ARC Systems

Designed for modern IP-based AV systems, this compact decoder extracts 2 channel audio from Dante® and AES67 audio networks and converts it into HDMI® ARC output with support for multiple sample rates and configurable latency settings. Flexible PoE or USB-C powering and straightforward configuration make it ideal for scalable professional AV installations and distributed audio systems.

SECTION 3 - AT A GLANCE

At a Glance

Dante® to HDMI® ARC conversion
Converts Dante® audio streams into HDMI® ARC audio output.

Supports multiple sample rates
Provides accurate and flexible audio system integration.

PoE or USB-C powered
Supports simplified installation with flexible powering options.

Compact professional design
Ideal for AV racks, displays and distributed audio systems.

SECTION 4 - KEY BENEFITS

Key Benefits

Converts Dante® audio for HDMI® ARC systems
Provides seamless integration between Dante® network audio infrastructures and HDMI® ARC-enabled displays and AV systems.

Supports flexible audio configuration
Multiple sample rates and configurable latency settings help ensure accurate synchronisation and reliable audio performance across AV environments.

Compatible with Dante® and AES67 systems
Supports integration into scalable networked audio infrastructures using standard Dante® Controller management tools.

Simplifies installation and deployment
802.3af PoE support allows single cable installation, while optional USB-C powering provides flexibility where PoE infrastructure is unavailable.

Suitable for modern AV environments
The compact metal housing and reliable operation make the decoder ideal for meeting spaces, education facilities, hospitality systems and digital signage applications.

Supports long-distance network audio distribution
Audio can be transported up to 100m over standard Ethernet infrastructure without requiring dedicated analogue cabling.



SECTION 5 - TYPICAL APPLICATIONS

Typical Applications

The 2ch Dante® to HDMI® ARC Decoder is ideal for routing networked audio to HDMI® ARC-enabled displays and AV systems within meeting rooms, lecture theatres, hospitality venues, digital signage installations and distributed audio environments. It is also suitable for corporate AV, education and professional audio systems requiring reliable Dante® audio playback.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The decoder supports Dante® and AES67 protocols with 24-bit audio at 44.1, 48 and 96kHz sample rates. It features one RJ45 network input, one HDMI® ARC output and supports transmission distances up to 100m (328.08ft) over standard Ethernet infrastructure.

Power can be supplied via 802.3af PoE or optional USB-C power input, with maximum power consumption of 1W. The compact metal enclosure measures 114 x 48 x 26mm and is designed for dependable deployment within professional AV and distributed audio systems.

The decoder is supplied with mounting ears and screws, a user manual and is backed by a 3-year warranty.

The terms HDMI, HDMI High Definition Multimedia Interface, HDMI Trade Dress, and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dante and Dante software are licensed trademarks of Audinate Pty Ltd.

Specifications

  • Sample Rate: 44.1/48/96kHz
  • Bit Depth: 24-bit
  • Protocol: Dante, AES67
  • Supported Bandwidth: 100Mbps
  • Maximum Distance: 100m (328.08ft)

Connectors

  • Input: RJ45 (Female), USB-C power (Female)
  • Output: HDMI® (Female)

Physical Properties

  • Dimensions WxDxH: 114x48x26mm (4.48x1.88x1.02in)
  • Housing Material: Metal
  • Net Weight: 0.18kg (0.40lb)
  • Operating Temperature: -5° - 55°C (23°F - 131°F)
  • Storage Temperature: -25°C - 70°C (-13°F - 158°F)
  • Power Requirements: 5VDC 3A / 802.3af PoE
  • Power Consumption: 1W (max)
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 135x75x35mm (5.31x2.95x0.46in)
  • Gross Weight: 0.26kg (0.57lb)
  • Warranty (Years): 3
  • Product Compliance: CE, UKCA, FCC, RoHS & REACH, CP65

Package Contents

  • 2ch Dante to HDMI® ARC Decoder
  • 2x mounting ears with screws
  • User Manual

Purchasing Information

  • No.: 70621
  • EAN: 4002888706216
