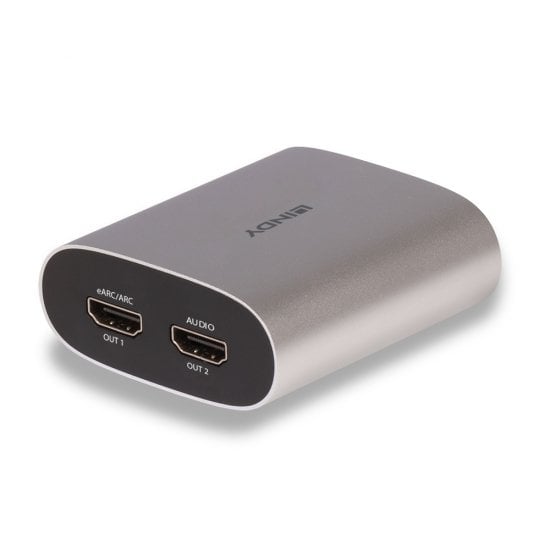

4K60 HDMI eARC Extractor

The Lindy 4K HDMI® extractor allows users to seamlessly extract digital audio from an HDMI® Source and HDMI® eARC display, while sending the video signal to a 4K UHD display. This is a perfect solution for separating audio signals too your AV Receiver or sound bar.

This extractor supports the full 18G HDMI® 2.0 bandwidth to display 4K UHD 4096x2160@60Hz resolutions with additional pass-through support for the REC.2020 colour space that covers the wider colour gamut required for HDR (high dynamic range) content, for enhanced contrast and more lifelike colour. Featuring support for HDCP 2.2, this is ideal for use with the latest source devices including set-top boxes, games consoles and media players.

With support for multi-channel audio including 7.1 Channel audio this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to the audio device. HDMI® High Bit Rate audio pass through also allows high-resolution audio files to playback without compression for a flawless music listening experience.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.0b
• Supported Bandwidth: 18Gbps
• Maximum Input Resolution: 4096x2160@60Hz 4:4:4 8bit
• Maximum  Output Resolution:4096x2160@60Hz 4:4:4 8bit
• Chipset: Sil9437CNUC
• HDCP Support: 2.2
• Supported Audio: PCM 2.0, LPCM 5.1/ 7.1 Dolby digital
• Separate Audio Ports: HDMI® Audio only Port
• Special Features: EDID Management, CEC Pass-through
• HDMI® Audio Formats: PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
• Maximum Supported Audio Sample Rate: 24-bit/192KHz

Connectors

• Input: 1 x HDMI® Type A (19-pin female) / 1x USB Micro-B (Power)
• Output: 2 x HDMI Type A ( 19-pin female)

Physical Properties

• Dimensions (approx.) WxDxH: 65x70x27mm (2.36x2.75x1.06in)
• USB Cable Length: 1m (39.37in).
• Housing Material: Aluminum Enclosure
• Net Weight: 0.083kg (0.18lb)
• Operating Temperature: 0°C -40 °C (32°F - 140°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20-90% RH (non-condensing)
• Colour: Sliver

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 65 x 70x 27mm (2.55x 2.75 x 1.06in)
• Gross Weight: 0.1916kg (0.42lb)
• Warranty: 2 years
• Product Compliance: CE, FCC, RoHS & REACH

Package Contents

• 1 x HDMI® eARC Extractor
• 1 x USB Cable (USB-A to Micro USB)
• 1 x User Manual
