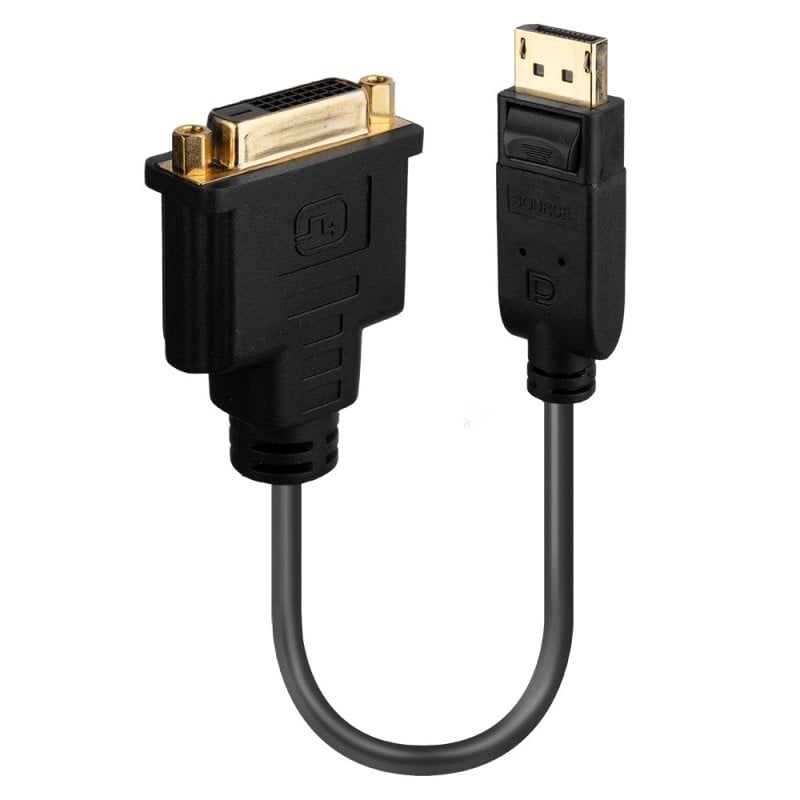

Display Port 1.2 to DVI-D Basic Adapter

Part No: 41004
  • £12.14
403 In Stock Now   |
Loading...

Product Summary

  • Converts a DisplayPort signal into DVI
  • Supports resolutions up to 1920x1080@60Hz / 1920x1200@60Hz
  • Add a DVI monitor as a secondary display
  • Quick and simple Plug & Play installation
  • 2 year warranty


The Lindy DisplayPort to DVI Converter is perfect for connecting a DisplayPort-equipped source, such as a PC or laptop, to a DVI monitor or projector. It supports high-definition video resolutions up to 1920x1080@60Hz and 1920x1200@60Hz, ensuring clear and detailed visuals for various uses.

With compact dimensions, The Lindy DP to DVI converter can be easily installed in locations with limited space, allowing for a tidy setup behind PCs or with laptop workstations. The design provides a cost-effective solution by enabling connectivity without the need to replace legacy displays and cabling when upgrading to modern PCs or laptops.

Additionally, the converter can be used to add a secondary monitor, supporting extended or mirrored desktop modes to increase productivity and expand screen real estate. Enhanced reliability and compatibility are ensured through internal copper shielding, making the Lindy DisplayPort to DVI Converter a dependable choice for both personal and professional use.

Specifications

  • AV Interface: DisplayPort to DVI
  • Interface Standard: DisplayPort 1.2 / DVI
  • Supported Bandwidth: 10.8Gbps
  • Maximum Input Resolution: 1920x1080@60Hz / 1920x1200@60Hz
  • Maximum Output Resolution: 1920x1080@60Hz / 1920x1200@60Hz
  • Chipset: NXP 3361B
  • HDCP Support: HDCP 1.4
  • Supported Audio: -
  • Separate Audio Ports: -
  • Special Features: -

Connectors

  • Input: DisplayPort Male
  • Output: DVI-D Female (Single Link)

Physical Properties

  • Dimensions (approx.) WxDxH:47.2x38.7x15.8mm (1.86x1.52x0.62in) 20x36x11mm (0.79x1.42x0.43in)/DP
  • Cable Length: 150mm (5.91in)
  • Housing Material: PVC
  • Jacket Material: PVC
  • Jacket Diameter: 6.5mm (0.26in)
  • Minimum Bend Radius: 65mm (2.56in)
  • Net Weight: 0.053kg (0.12lb)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Colour: Black

Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.062kg (0.14lb)
  • Warranty (Years): 2
  • Certified:CE, UKCA,  FCC, RoHS & REACH

Package Contents:

  • DisplayPort 1.2 to DVI Converter

Purchasing Information

  • No. 41004
  • EAN: 4002888410045
