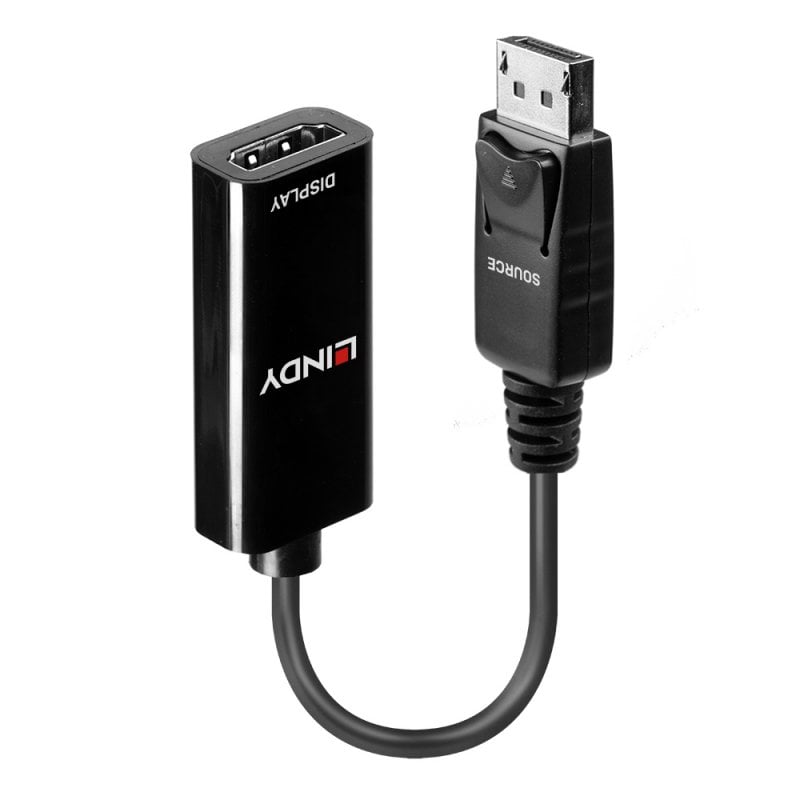

DisplayPort 1.2 to HDMI 4K30Hz Passive Adapter Converter

The Lindy DisplayPort to HDMI® Converter is perfect for connecting a DisplayPort-equipped source, such as a PC or laptop, to an HDMI® monitor or TV. It supports resolutions up to 4K 3840x2160@30Hz and allows audio pass-through, provided the video source supports this feature. This ensures high-quality video and audio output for an enhanced viewing experience.

This versatile converter can also be used to add a secondary monitor, supporting extended or mirrored desktop modes to boost productivity and increase screen real estate. Its lightweight, low-profile design makes it ideal for traveling, while the plug & play installation expands your connectivity options effortlessly. This makes it particularly suitable for BYOD (Bring Your Own Device) applications.

Please note that this converter requires the source device or graphics card to support DP++ in order to provide dual-mode signals. This feature ensures seamless compatibility and functionality across various devices, making the Lindy DisplayPort to HDMI® Converter a reliable and convenient solution for modern connectivity needs.

Specifications

• AV Interface: DisplayPort to HDMI
• Interface Standard: DisplayPort 1.2, HDMI 1.4
• Supported Bandwidth: 10.2Gbps
• Maximum Input Resolution: 3840x2160@30Hz
• Maximum  Output Resolution: 3840x2160@30Hz
• Chipset: PS8402A
• HDCP Support: HDCP 1.4
• Supported Audio: Pass-through
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: DisplayPort Male
• Output: HDMI Type A Female

Physical Properties

• Dimensions (approx.) WxDxH: 20.8x51x11.5mm (0.82x2.01x0.45in) / HDMI 20.1x44.5x9mm (0.79x1.75x0.35in)
• Cable Length: 150mm (5.91in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 5mm (0.2in)
• Minimum Bend Radius: 60mm (2.36in)
• Net Weight: 0.03kg (0.07lb)
• Operating Temperature: 0°C - 80°C (32°F - 176°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 10 - 85% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.038kg (0.08lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH

Package Contents:

• DisplayPort 1.2 to HDMI 1.4 Converter

Purchasing Information

• No. 41718
• EAN: 4002888417181
