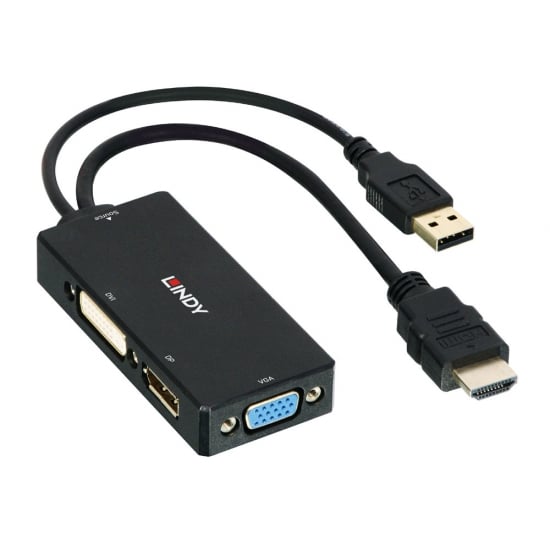

HDMI to DisplayPort, DVI-D & VGA Converter

Part No: 38182
  • £71.04
7 In Stock Now   |
Loading...

Product Summary

  • Converts HDMI® signals into DisplayPort, DVI or VGA signals
  • Supports Ultra HD resolutions 3840x2160@30Hz for DisplayPort and Full HD 1920x1200@60Hz for DVI/VGA
  • Easily connect with a single legacy or modern display at any one time
  • Quick and simple plug & play installation
  • 2 year warranty
The Lindy HDMI® to DisplayPort, DVI and VGA Converter allows users to connect either a DisplayPort, DVI or VGA screen to an HDMI® source. Supporting 4K resolutions up to 3840x2160@30Hz on DisplayPort displays, content can be viewed with superior clarity and stunning accuracy. DVI and VGA monitors are supported with a maximum resolution of 1920x1200@60Hz. The integrated USB cable can be connected to a USB port or USB power supply to power the converter.

With its lightweight, low profile design, this converter easily fits into a notebook bag and simply expands available connectivity options, so users can connect to the most commonly used digital and analogue video equipment, without having to carry multiple adapters - ideal for BYOD applications.

Plug & play, it is quick and easy to use as it can be powered by the included USB cable that connects to either a USB output or a USB power supply.
Specifications
  • AV Interface: HDMI® to DP, DVI & VGA
  • Interface Standard: HDMI®, DP 1.2, DVI-D & VGA
  • Supported Bandwidth: Max. 3Gbps per lane
  • Maximum Input Resolution: 4K@30Hz
  • Maximum  Output Resolution:
      • DP: 4K@30Hz
      DVI/VGA: 1920x1200@60Hz
  • Chipset: STDP2600, PS8222, AG6200
  • HDCP Support: HDCP 1.4
  • Supported Audio: 7.1 LPCM digital audio up to 192kHz 24bit
  • Separate Audio Ports: -
  • Special Features:Optional power via USB

Connectors
  • Input: HDMI® Type A Male, USB Type A Male (for power)
  • Output: DisplayPort Female, DVI-D Female, VGA Female

Physical Properties
  • Dimensions (approx.) WxDxH:
      • Housing: 86.9x40.02x16.18mm (3.42x1.58x0.64in)
      HDMI®: 45.57x19.86x11.2mm (1.79x0.78x0.44in)
      USB: 49.55x16.21x7.92mm (1.95x0.64x0.31in)"
  • Cable Length: 150mm (5.91in)
  • Housing Material: ABS
  • Jacket Material: ABS
  • Jacket Diameter: 5.5mm (0.22in)
  • Minimum Bend Radius: 55mm (2.17in)
  • Net Weight: 0.06kg (0.13lb)
  • Operating Temperature: 0°C - 65°C (32°F - 149°F)
  • Storage Temperature: -10°C - 125°C (14°F - 257°F)
  • Humidity: 20 - 95% RH (non-condensing)
  • Colour: Black

Miscellaneous
  • Packaging Type: Polybag
  • Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
  • Gross Weight: 0.07kg (0.15lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS & REACH

Package Contents
  • HDMI® to DisplayPort, DVI & VGA Converter

Purchasing Information
  • No.38182
  • EAN: 4002888381826
