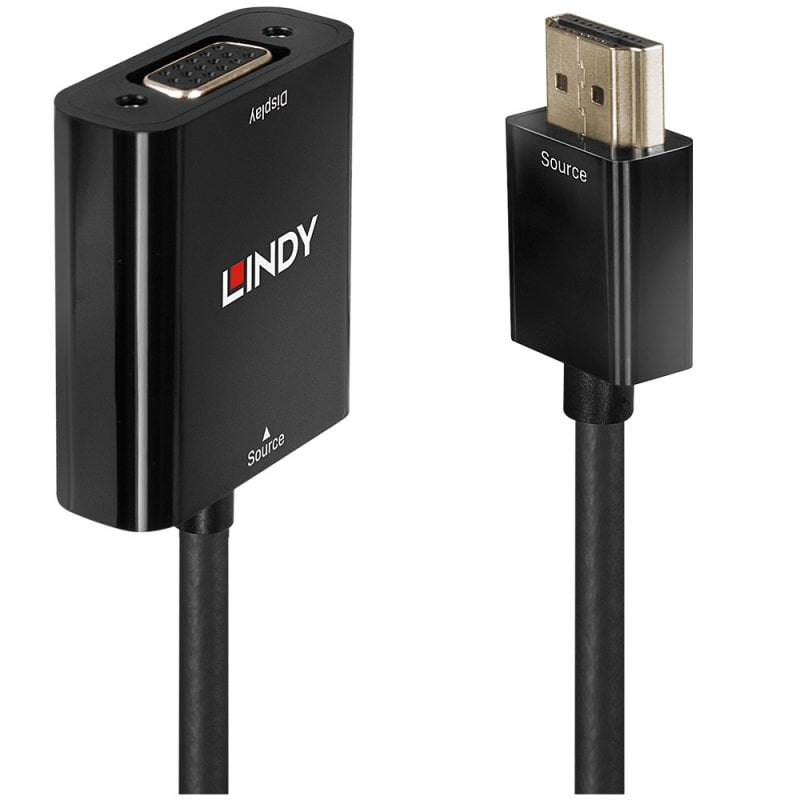

HDMI to VGA Converter

The Lindy HDMI® to VGA converter converts signals from an HDMI® equipped source into an analogue VGA signal. It supports resolutions up to 1080p and 1920x1200 for PC VGA displays. This allows the connection of modern HDMI® capable devices, such as PCs, notebooks and ultrabooks, to an older VGA display or projector.

The compact dimensions mean it can be easily installed in restricted spaces, allowing for tidy installation behind PCs or for use with laptop workstations. The converter provides connectivity without the expense of having to replace legacy displays and cabling when upgrading to modern PCs or laptops.

Specifications

• AV Interface: HDMI® to VGA
• Interface Standard: HDMI®, VGA
• Supported Bandwidth: 4.95 Gbps
• Maximum Input Resolution: 1920x1080
• Maximum Output Resolution: 1920x1200@60Hz 12bit
• Chipset: Algoltek AG6200A
• HDCP Support: -
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: HDMI® Type A Male
• Output: VGA Female

Physical Properties

• Dimensions (approx.) WxDxH:
37x42x14.5mm (1.46x1.65x0.57in)
21x17.4x9.6mm (0.83x0.69x0.38in) / HDMI
• Cable Length: 100mm (3.94in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 4.8mm (0.19in)
• Minimum Bend Radius: -
• Net Weight: 0.027kg (0.06lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 5 - 95% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.037kg (0.08lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH

Package Contents

• HDMI® to VGA Converter

Purchasing Information

• No. 38291
• EAN: 4002888382915

• Datasheet for 38291 HDMI to VGA Converter
• UKCA DoC for 38291 HDMI to VGA Converter
• Product Safety Information
