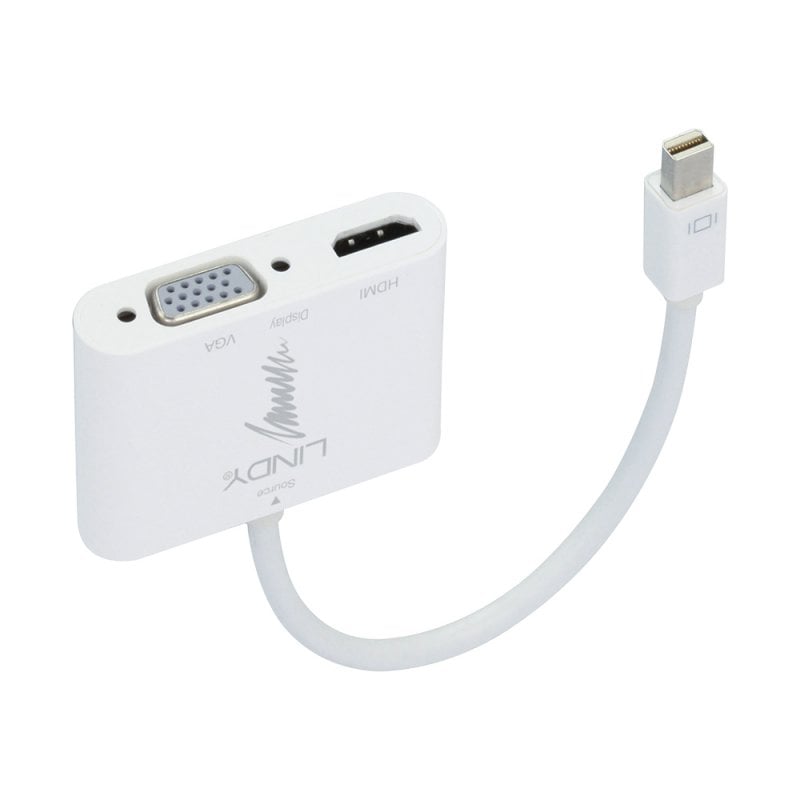

Mini DisplayPort 1.2 to HDMI 1.4 & VGA Converter

The Lindy Mini DisplayPort to HDMI and VGA Converter allows users to connect either a HDMI or VGA screen to a Mini Displayport source. Supporting 4K resolutions up to 3840x2160@60Hz on HDMI displays. VGA monitors and projectors are supported with up to 1920x1080@60Hz.

With its lightweight, low profile design, this converter easily fits into a notebook bag and simply expands available connectivity options, so users can connect to various digital and analogue video devices, without having to carry multiple adapters.

Specifications

• AV Interface: DisplayPort to HDMI, VGA
• Interface Standard: Displayport 1.2, HDMI 1.4, VGA
• Supported Bandwidth: 4.95Gbps
• Maximum Input Resolution: 3840x2160@60Hz 4:2:0@8bpc
• Maximum  Output Resolution:
HDMI: 3840x2160@60Hz 4:2:0@8bpc
VGA: 1920x1200@60Hz
• Chipset: VGA : ANX9833
• HDMI : PS8339B
• HDCP Support: HDCP 1.4
• Supported Audio: Pass-through for HDMI
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: Mini DisplayPort Male
• Output:
VGA Female
HDMI Female

Physical Properties

• Dimensions (approx.) WxDxH: 60x42x14mm (2.36x1.65x0.55in) 11x18.7x9mm (0.43x0.74x0.35in) / mDP
• Cable Length: 150mm (5.91in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 4.5mm (0.18in)
• Minimum Bend Radius: 45mm (1.77in)
• Net Weight: 0.04kg (0.09lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 10 - 85% RH (non-condensing)
• Colour:White

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.048kg (0.11lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH

Package Contents:

• Mini DisplayPort 1.2 to HDMI 1.4 & VGA Converter

Purchasing Information

• No. 41070
• EAN: 4002888410700

• Product Safety Information
