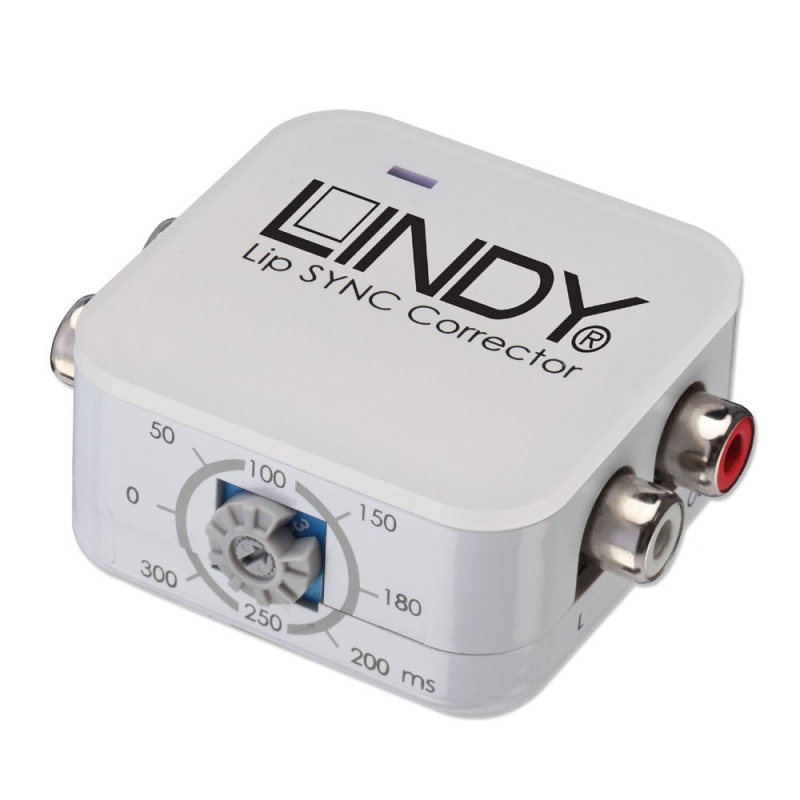

Phono Lip Sync Corrector

The Lindy Phono Lip Sync Corrector allows the user to simply correct audio lip sync issues between L/R analogue devices, ensuring sound and video is harmonised for a great listening experience.

With both L/R Phone Input and Output connections, this audio corrector is a perfect solution for connecting DVD Players, set top boxes or games consoles to amplifiers or TVs, with the ability to delay any audio signal that is out of sync with the video signals and avoid frustrating mismatched sound, a common issue especially when distributing audio and video over long lengths or multiple AV devices.

Featuring a simple manual dial for easy adjustment of 8 separate delay settings, the device is ideal for first time users, while efficient, simple functionality also ensures fuss-free connectivity and use.

Specifications

• Video Interface: -
• Interface Standard: -
• Supported Bandwidth: -
• Maximum Resolution: -
• HDCP Support: -
• Audio Interface: RCA (Phono)
• Chipset: CS5343+TPA5050+PCM5101A
• Supported Audio: LPCM 2.0
• Maximum Supported Audio Sample Rate: 48kHz
• Input Impedance: 35K Ω
• Output Impedance: 560 Ω
• Output Voltage: 2V RMS
• Frequency Response: ±1db
• Signal to Noise Ratio: 90.6dB
• Special Features: Audio Delay

Connectors

• Input: L/R Analogue (Phono)
• Output: L/R Analogue (Phono)
• Power: 5.5/2.1mm DC Socket

Physical properties

• Dimensions (approx.) WxDxH: 46x46x23.5mm (1.81x1.81x0.93in)
• Housing Material: Plastic
• Net Weight: 0.1kg (0.22lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20~90% RH (non-condensing)
• Power Requirements: 5VDC 1A
• Colour: White

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 155x60x120mm (6.1x2.36x4.72in)
• Gross Weight: 0.27kg (0.6lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS and REACH

Package contents

• Lip Sync Corrector
• Multi-Country Power Supply (EU, UK, US & AUS)
• PSU Adapters: UK, EU, US & AUS
• LINDY Manual

Purchasing information

• No.: 70449
• EAN: 4002888704496

• Manual
• Product Safety Information
