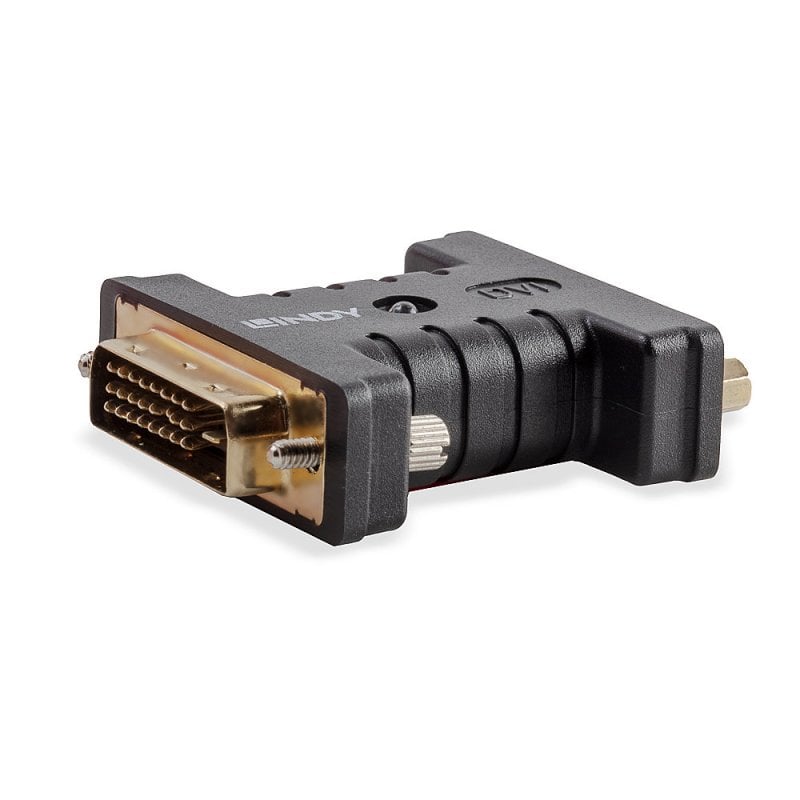

DVI EDID Emulator with Cloning

Part No: 32117
  • £34.97
50 In Stock Now   |
Loading...

Product Summary

  • Continuously emulates DVI EDID Information
  • Supports resolutions up to 1920x1200@60Hz
  • Cloning function allows for the use of copied EDID’s or various pre-set EDID data.
  • Powered via DVI source interface.
  • 3 year warranty

The Lindy DVI EDID Emulator with Cloning is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV / KVM Extenders, Switches & Splitters. It can also be used in place of a monitor to keep the PC or Server awake for remote access over IP.

Problems can occur when using various AV devices such as KVM Switches, Splitters & Extenders amongst others. These devices are often unable to pass the EDID information back to the source device. This emulator allows the user to clone the EDID information from a display which can be provided to the source prior to the installation of any intermediary devices.

This Emulator also includes pre-set EDID data which includes the most commonly used DVI resolutions and refresh rate combinations, which allows for simple installation as it can be used with many displays quickly without the need to clone EDID information.

Specifications:

  • AV Interface: DVI
  • Interface Standard: 1
  • Supported Bandwidth: 3.96Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Video EDID:
          720x400@70Hz
          640x480@60/67/72/75Hz
          800x600@56/60/72/75Hz
          832x624@75Hz
          1024x768@60/70/75Hz
          1152x864@75Hz
          1152x870@75Hz
          1440x900@60Hz
          1280x960@60Hz
          1280x1024@60/75Hz
          1680x1050@60Hz
          1920x1080@60Hz
          1600x1200@60Hz
          1920x1200@60Hz
  • Audio EDID: -
  • HDCP Support: -
  • Special Features: EDID Cloning

Connectors:

  • Input: DVI
  • Output: DVI
  • Power: -

Physical Properties:

  • Dimensions (approx.) WxDxH: 55x43x15mm (2.17x1.69x0.59in)
  • Housing Material: PVC
  • Net Weight: 0.035kg (0.08lb)
  • Operating Temperature: 0°C - 85°C (32°F - 185°F)
  • Storage Temperature: -40°C - 85°C (-40°F - 185°F)
  • Humidity: 5-95%
  • Power Requirements: -
  • Colour: Black

Miscellaneous:

  • Packaging Type: Polybag
  • Packaging Dimensions: 133x144mm (5.24x5.67in)
  • Gross Weight: 0.0354kg (0.08lb)
  • Warranty (Years): 3
  • Certificated: CE, FCC, RoHS & REACH

Package Contents:

  • DVI EDID Emulator
  • Lindy Manual

Purchasing Information:

  • No.: 32117
  • EAN: 4002888321174
