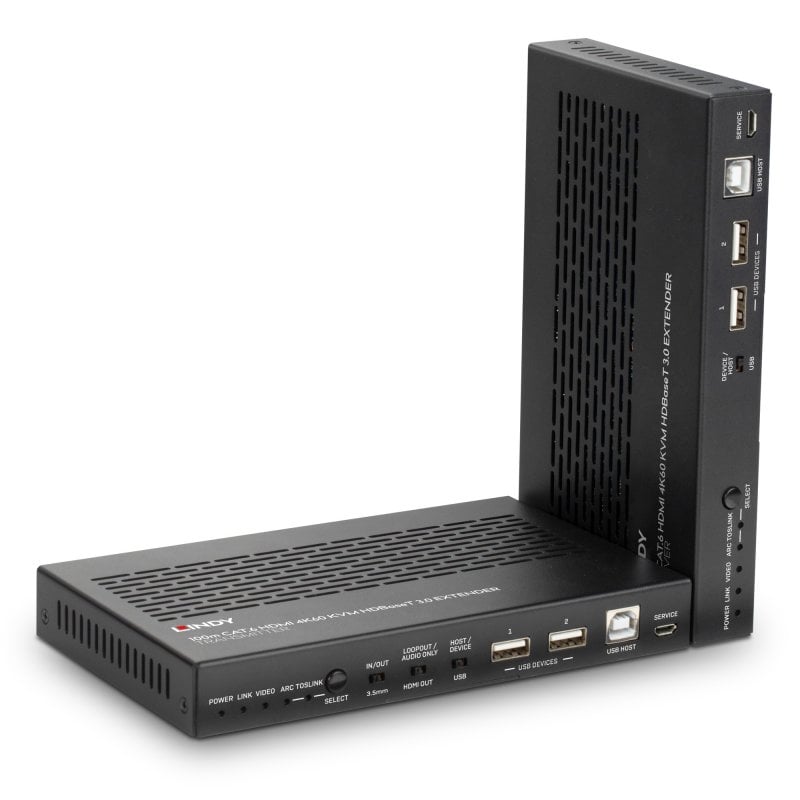

100m Cat.6A HDMI 4K60, Audio, IR & RS-232 HDBaseT 3.0 KVM Extender

Part No: 38344
  • £1,137.43
153 In Stock Now   |
Loading...

Product Summary

  • Distributes HDMI® resolutions up to 100m over Cat.6A or above network cable via HDBaseT technology
  • Supports HDMI® 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
  • ARC Support as well as USB, RS-232, CEC & Ethernet pass-through & bi-directional IR for simple control
  • Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
  • 3 year warranty

SECTION 1 - HEADLINE

Uncompressed HDMI® 4K60 and USB Extension Up to 100m



The Lindy 100m Cat.6A HDMI® 4K60, Audio, IR & RS-232 HDBaseT® 3.0 KVM Extender is a professional end-to-end solution for extending uncompressed HDMI® video, USB control and multiple AV signals over long distances using a single Cat.6A or above cable.

SECTION 2 - FEATURE

High-Performance HDBaseT 3.0 KVM Extension

Designed for professional AV installations, this HDBaseT 3.0 extender delivers uncompressed HDMI® 4K60 video, USB KVM control, audio and multiple control signals up to 100m over Cat.6A or above cabling. With Power over Cable, ARC support, HDMI® loop-out and extensive control options including IR, RS-232, CEC and Ethernet, it provides a flexible and reliable long-distance AV solution.

SECTION 3 - AT A GLANCE

At a Glance

Uncompressed HDMI® up to 100m
Transmit 4K60 AV signals over Cat.6A or above cable.

4K60 HDR support
High quality Ultra HD video with enhanced colour and contrast.

USB KVM on both units
Control source devices from either side of the installation.

Power over Cable
Single power supply for simplified installation.

SECTION 4 - KEY BENEFITS

Key Benefits

Uncompressed 4K60 HDMI® transmission
Supports HDMI® 2.0 bandwidth up to 18Gbps and uncompressed resolutions up to 3840x2160@60Hz 4:4:4, delivering exceptional image quality over long distances.

Flexible audio routing options
ARC, audio embedding and de-embedding, plus optical and analogue audio connections, allow easy integration with amplifiers, soundbars and external audio systems.

Local HDMI® monitoring
An HDMI® loop-out port on the transmitter allows an additional local display to be connected at the source side of the installation.

USB KVM control from both ends
USB 2.0 host and device connections on both units allow keyboards, mice and other peripherals to control the source system from either side of the setup.

Comprehensive control integration
Bi-directional IR, RS-232, Ethernet and CEC pass-through support advanced remote control and seamless integration into larger AV and control systems.

Simplified installation with PoC
Power over Cable allows both units to be powered from a single power supply at the transmitter, ideal where power access is limited at the receiver location.



SECTION 5 - TYPICAL APPLICATIONS

Typical Applications

Ideal for premium digital signage, conference rooms, lecture halls, event spaces and professional AV environments, this extender enables high-quality uncompressed video distribution, flexible audio management and remote KVM control over long distances.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The Lindy 100m Cat.6A HDMI® 4K60, Audio, IR & RS-232 HDBaseT 3.0 KVM Extender supports HDMI® 2.0 with bandwidth up to 18Gbps, uncompressed resolutions up to 3840x2160@60Hz 4:4:4 8bit and HDCP 2.3 compatibility. Using HDBaseT 3.0 over Cat.6A or above cable, it can extend signals up to 100m while maintaining high AV performance.

The system provides HDMI®, USB 2.0, IR, RS-232, Ethernet and CEC pass-through, along with HDMI® loop-out, ARC and audio embedding and de-embedding support. Optical and analogue audio ports on both units enable flexible connection to external audio devices, while USB host and device ports on each unit support KVM-style control from both ends of the installation.

With durable metal housings, mounting brackets and a secure screw-type DC power connection, the extender is designed for reliable professional installations. Power over Cable allows operation from a single 24VDC power supply, helping simplify deployment while ensuring dependable long-distance performance. It is backed by a 3-year warranty.

Specifications

  • AV Interface: HDMI®
  • Interface Standard: 2.0, USB 2.0
  • Supported Bandwidth: 18Gbps
  • Available USB Bandwidth: 350Mbps
  • Maximum Distance: 100m (229.66ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.3
  • EDID Pass Through: Pass-through
  • Supported Audio: HDMI® Audio Pass-through, TosLink (Optical) Up to 5.1Ch, 3.5mm Up to 2.0Ch
  • Separate Audio Ports: TosLink (Optical), 3.5mm
  • IR Support: 20-60kHz
  • CEC Support: Pass-through
  • Serial Interface: RS-232
  • Transmission Protocol: HDBaseT 3.0
  • Transmission Medium: Cat.6A or above
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS3000
  • Special Features:
    HDMI® Loop Out Port
    USB Host/Device on each unit
    PoC (Power over Cat.6)
    ARC and Audio embedding/de-embedding Support

Connectors

  • Transmitter Input: HDMI® Type A (Female), USB Type B (Female), 3.5mm IR (Female)
  • Transmitter Output: HDMI® Type A (Female), RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 2 x USB Type A (Female)
  • Transmitter Bi-directional Ports: 3.5mm Audio (Female), RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
  • Receiver Input: RJ-45 (Female), USB Type B (Female), TosLink (Optical) (Female), 3.5mm IR (Female)
  • Receiver Output: HDMI® Type A (Female), 2 x USB Type A (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
  • Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
  • Power: 5.5/2.1mm

Physical Properties

  • Dimensions (approx.) WxDxH: 170x88x20mm (6.69x3.46x0.79in) per unit
  • Housing Material: Metal
  • Net Weight: 0.862kg (1.9lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 290x75x220mm (11.42x2.95x8.66in)
  • Gross Weight: 1.101kg (2.43lb)
  • Warranty (Years): 3
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • HDBaseT HDMI® KVM Extender, Transmitter
  • HDBaseT HDMI® KVM Extender, Receiver
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 4 x Mounting Ears & 8 x Screws
  • 2 x 3-Pin Terminal Block
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 38344
  • EAN: 4002888383448
