1500m Fibre Optic DVI-D Single Link Extender

Part No: 38113
  • £779.36
Item out of Stock   |
Loading...

Product Summary

  • Extends DVI-D signals at distances of up to 1500m using a single fibre optic cable (not included)
  • Supports HDTV resolutions up to 1920x1200@60Hz / 1080p@60Hz
  • 6Gbps Total Bandwidth over Single 2-core Fibre Optic Cable Link
  • TAA compliant
  • 3 year warranty
Easy to set up and install the compact Lindy LC Fibre Optic DVI-D Extender is the most cost effective, high quality solution on the market for sending DVI-D signals over incredible distances. Send DVI-D signals without compression or any degradation over standard LC duplex multimode (50/125µm) fibre cable up to 500m (not included) or up to an incredible 1500m using a LC duplex singlemode (9/125µm) fibre optic cable.

DVI-D control over a single cable!

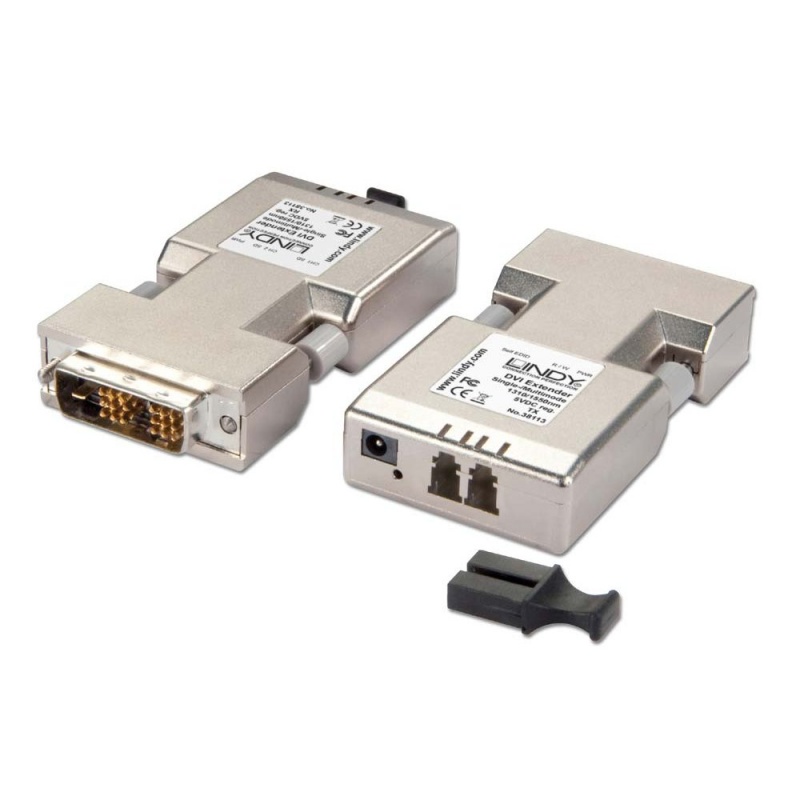

The extender system comprises two modules, a transmitter and a receiver, which are connected directly to both the DVI-D source and display. The modules are then connected together using a single, standard 'off the shelf' LC Fibre cable fibre optic cable (not included). As standard the extender modules are directly attached to the DVI source and display equipment however if this is not possible due to space limitations or port orientations then the modules may be connected using DVI-D extension cables.
Please note: This product does not support HDCP

Specifications

  • AV Interface: DVI-D
  • Interface Standard: DVI-D 2.0 (Single Link)
  • Supported Bandwidth: 4.95Gbps
  • Maximum Distance
      • 500m (1640.4ft) - 1x LC Duplex (50/125µm)
      1500m (4921.2ft) - 1x LC Duplex (9/125µm)
  • Maximum Resolution: 1920x1200@60Hz
  • HDCP Support: -
  • EDID Pass Through: -
  • Supported Audio: -
  • Separate Audio Ports: -
  • IR Support: -
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: 1 x Duplex LC (50/125µm / 9/125µm)
  • Laser Class (only for Fibre): 1
  • Wavelength (only for Fibre): 1310/1550nm
  • Chipset: -
  • Special Features: Self-EDID learning

Connectors

  • Transmitter Input: DVI-D (Male)
  • Transmitter Output: Duplex LC (Female)
  • Receiver Input: Duplex LC (Female)
  • Receiver Ouput: DVI-D (Male)
  • Bidirectonal Ports: -
  • Power: 3.5/1.35mm DC socket

Physical Properties

  • Dimensions WxDxH: 40x70x15mm (1.57x2.76x0.59in) per unit
  • Housing Material: Metal
  • Net Weight: 0.1kg (0.22lb) per unit
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 65°C (-4°F - 149°F)
  • Humidity: 10 - 75% RH (non-condensing)
  • Power Requirements: 5VDC
  • Colour: Silver

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 260x170x70mm (10.24x6.69x2.76in)
  • Gross Weight: 0.8kg (1.76lb)
  • Warranty (Years): 3
  • Certified: CE, UKCA, FCC, RoHS, REACH, TAA

Package Contents

  • Transmitter unit
  • Receiver unit
  • 2 x Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy manual

Purchasing Information

  • No. 38113
  • EAN: 4002888381130
