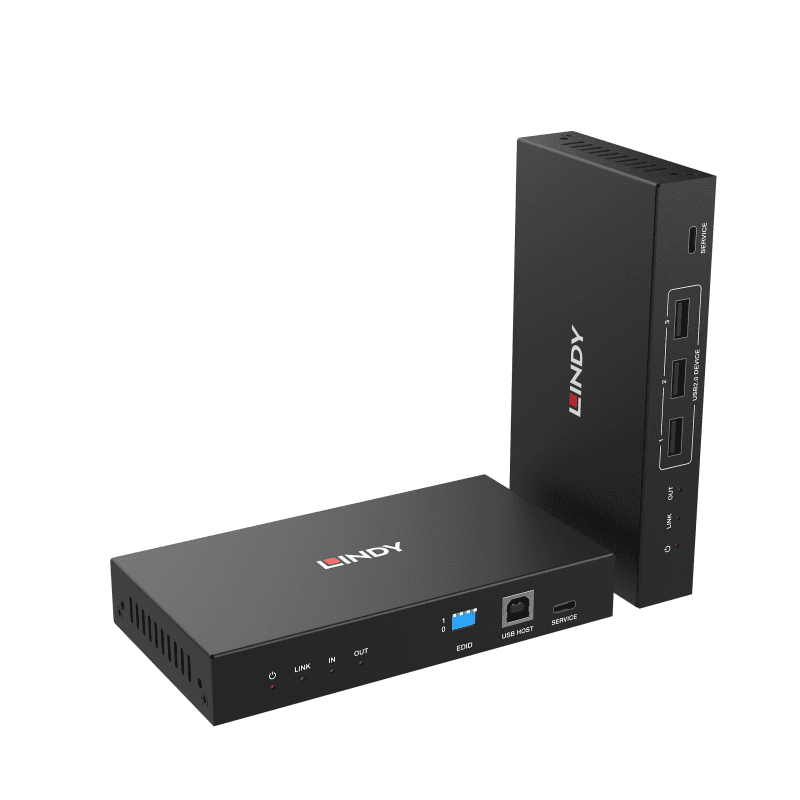

5km Fibre Optic HDMI 4K60 KVM USB 2.0, RS-232 & IR Extender

The Lindy Fibre Optic HDMI® 4K60 KVM USB 2.0, RS-232 & IR Extender is a high-performance, reliable solution for transmitting AV and data signals over extra-long distances via LC duplex fibre optic cabling.

Supported distance and cable types:
5km - LC Duplex OS2 Singlemode (9/125µm)
300m - LC Duplex OM4 Multimode (50/125µm)

Supporting uncompressed resolutions up to 4K Ultra HD, this extender delivers video with exceptional clarity. HDR (High Dynamic Range) provides enhanced brightness, superior contrast, and a wider colour gamut.
An HDMI® loop-out port on the transmitter enables local simultaneous viewing, ideal for monitoring or creating an additional viewing zone.

This extender includes all the essential connections for professional AV and KVM applications. The receiver features USB 2.0 device ports (supporting up to 5V 1A each), allowing seamless integration with KVM setups, presentation systems, and collaboration or meeting room environments.

With bi-directional IR ports on both the transmitter and receiver, users can control source equipment from the display side and displays from the source location. RS-232 connections ensure easy integration with existing control systems. The screw-type DC power connector provides a secure and reliable connection, ideal for professional installations where accidental disconnection must be avoided.
An analog audio de-embedding port on the receiver allows the separate management of audio signals, while the built-in EDID management function ensures maximum compatibility with displays and projectors.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: HDMI®
• Supported Bandwidth: 18Gbps
• Maximum Distance: 5km (16404.2ft) / 300m (984.24ft)
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID: Dip Switch with presets, copy and user-defined functions
• Supported Audio: Pass-through
• Separate Audio Ports: 3-Pin Terminal Block
• Serial Interface: RS-232 Pass-Through
• Transmission Medium: Duplex LC (50/125µm or 9/125µm)
• Laser Class (only for Fibre): 1
• Wavelength (only for Fibre): 1330nm
• Special Features: USB 2.0, HDMI® loop-out, de-embedding Audio, bi-directional IR

Connectors

• Transmitter Input: HDMI® (Female), 3.5mm IR (Female), USB Type B (Female)
• Transmitter Output: Duplex LC, HDMI® (Female), 3.5mm IR (Female)
• Receiver Input: Duplex LC, 3.5mm IR (Female)
• Receiver Ouput: HDMI® (Female), 3x USB Type A (Female), 3.5mm IR (Female), 3-Pin Terminal Block Audio
• Control ports: USB Type C (Female), 3-Pin Terminal Block
• Power: 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 144x78x23mm (5.67x3.07x0.91in) per unit
• Housing Material: Metal
• Net Weight: 1.2Kg (2.65lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 10-90% RH (non-condensing)
• Power Requirements: 12VDC 3A
• MTBF: >30000 hours
• Colour: black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 245x185x75mm (9.65x7.28x2.95in)
• Gross Weight: 1.47Kg (3.24lb)
• Warranty (Years): 3
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• Transmitter unit
• Receiver unit
• USB 2.0 Type A/B Cable, 1.5m
• IR Emitter Cable, 1.5m
• IR Receiver Cable, 1.5m
• 3x 3-Pin Terminal Block
• 4x mounting ears with screws
• 2x Multi-Country Power Supply
• Lindy manual

Purchasing Information

• No.: 39366
• EAN: 4002888393669
