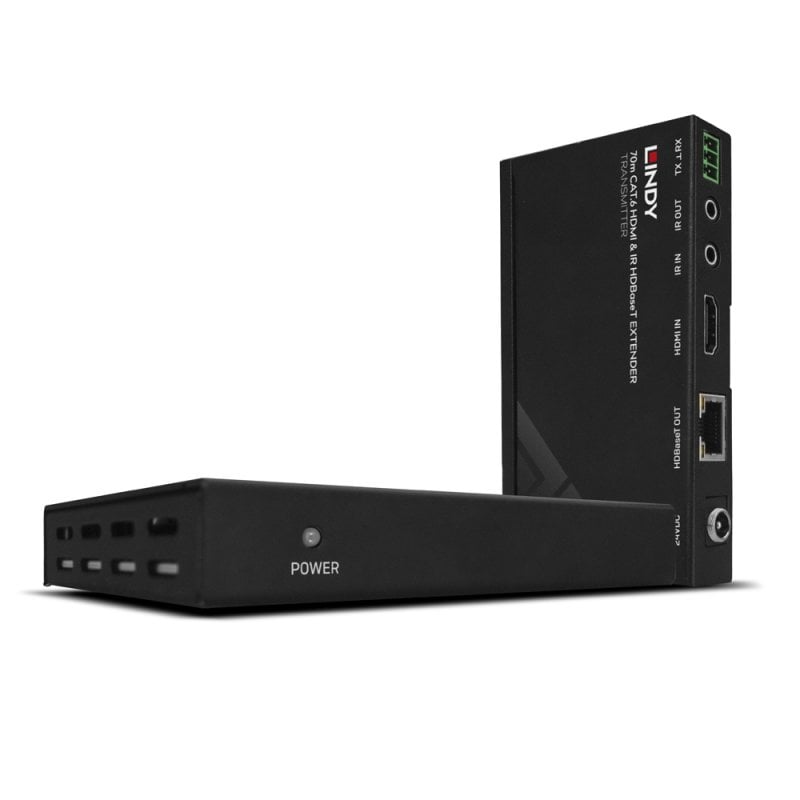

70m Cat.6 HDMI 4K30, IR & RS-232 HDBaseT Extender with PoC
- £260.98
Product Summary
- Distributes HDMI® resolutions up to 70m over Cat.6 network cable via HDBaseT technology
- Supports HDMI® 10.2G resolutions up to 4K@30Hz 4:4:4
- CEC pass-through and bi-directional IR for simple control
- Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
- 3 year warranty
Extend with HDBaseT. Control with Confidence.
70 Metres of HDMI®. Full Control.
The Lindy 70m HDMI® 4K30 HDBaseT Extender with PoC, IR, and RS-232 delivers a professional-grade AV solution for transmitting 4K Ultra HD signals over long distances via Cat.6 cable. Combining HDBaseT reliability with Power over Cable (PoC), bi-directional IR, RS-232 serial control, and CEC pass-through, this extender supports video resolutions up to 3840x2160@30Hz 4:4:4* with audio and control — all over a single cable. Ideal for commercial signage, conference rooms, and education environments, it offers easy installation, centralised power, and total control integration.
*The following distances and resolution combinations are possible:
- 70m: 1920x1080@60Hz 4:4:4 8bit
- 40m: 3840x2160@60Hz 4:2:0 8bit / 30Hz 4:4:4 8bit
AT A GLANCE
HDBaseT Technology
Reliable long-distance transmission of HDMI®, audio & control
70m extension over Cat.6
Simplifies infrastructure with low-cost UTP cable.
4K@30Hz 4:4:4 support
Delivers high-quality video with vivid clarity.
Power over Cable (PoC)
Simplifies installation – only one power supply needed.
Bi-directional IR & RS-232
Remote source/display control and automation integration.
EDID pass-through
Ensures proper format negotiation for connected displays.

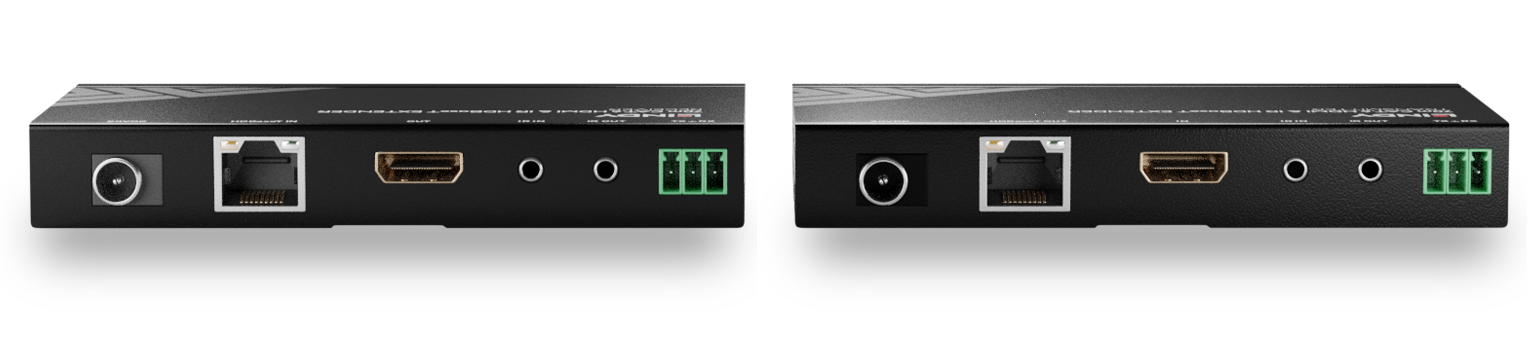

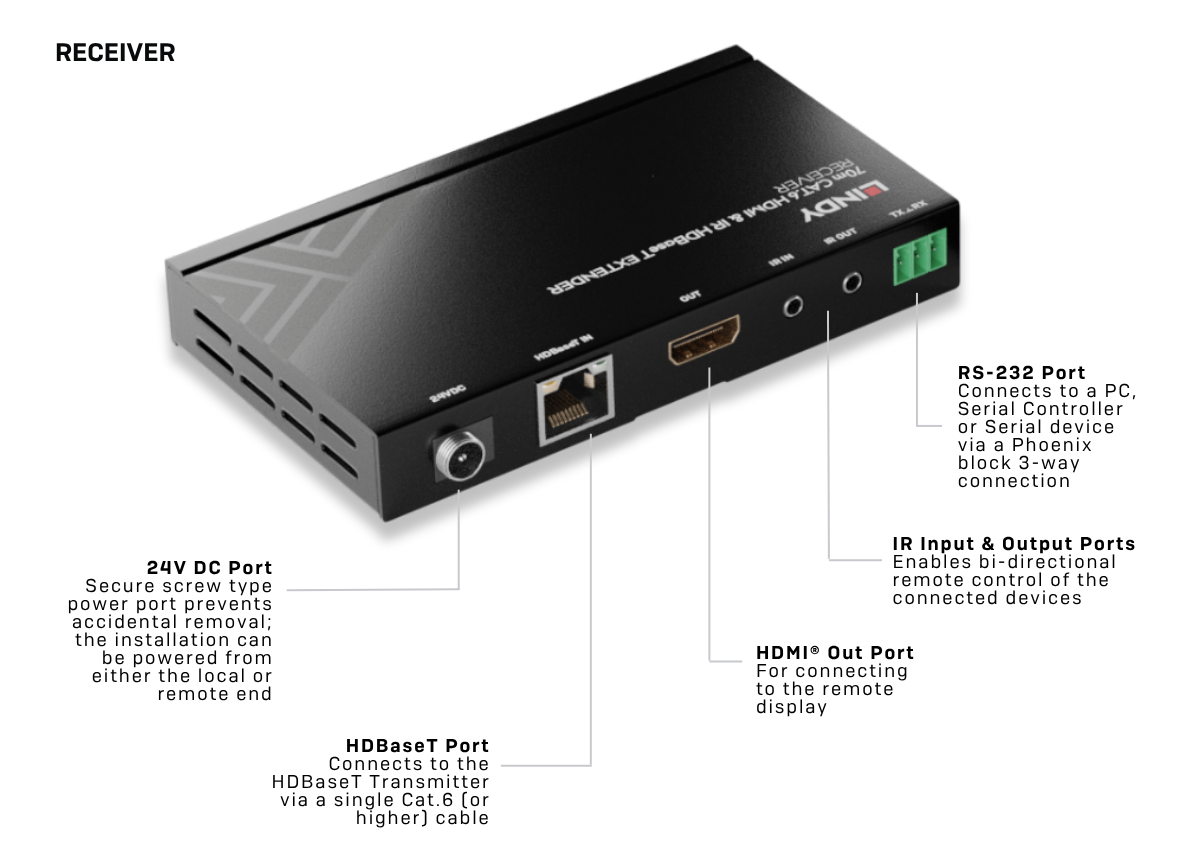

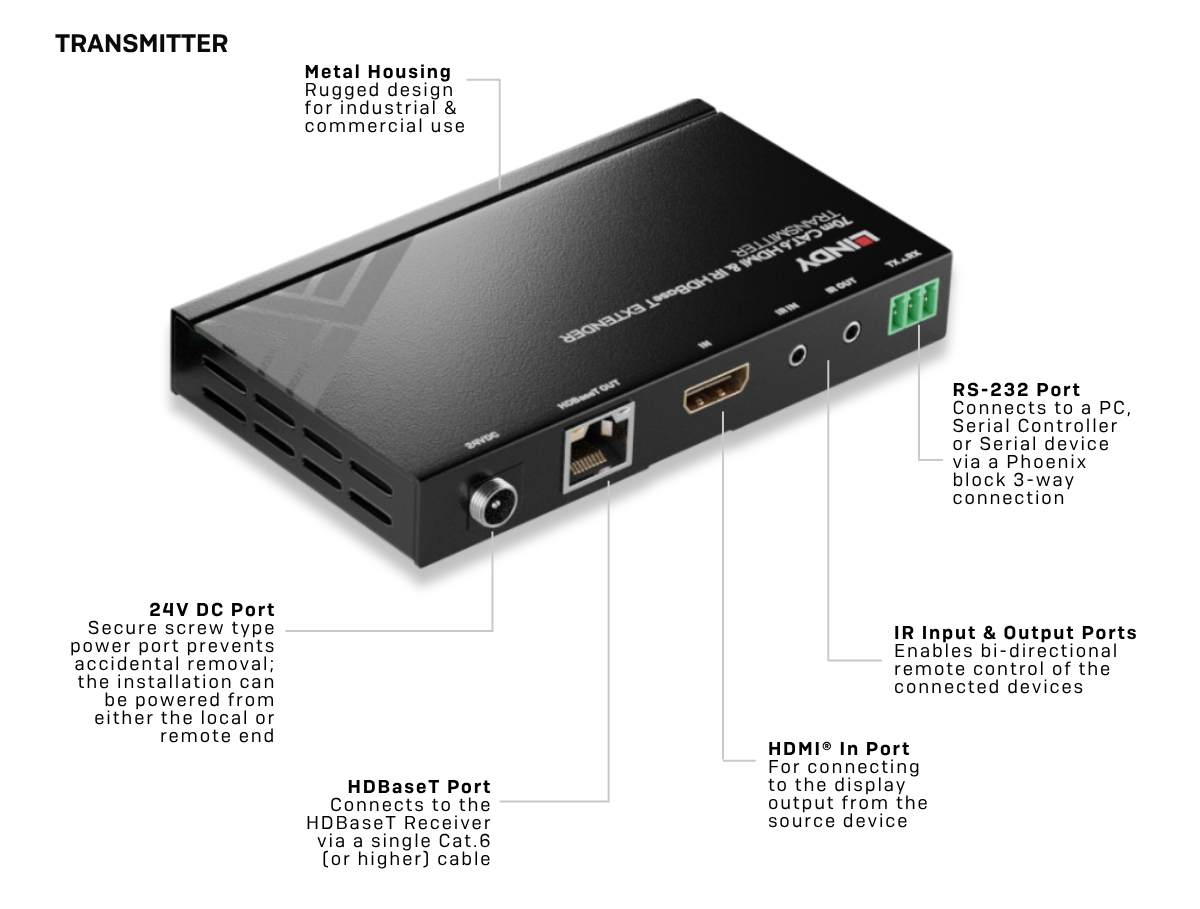

CONNECTION OVERVIEW

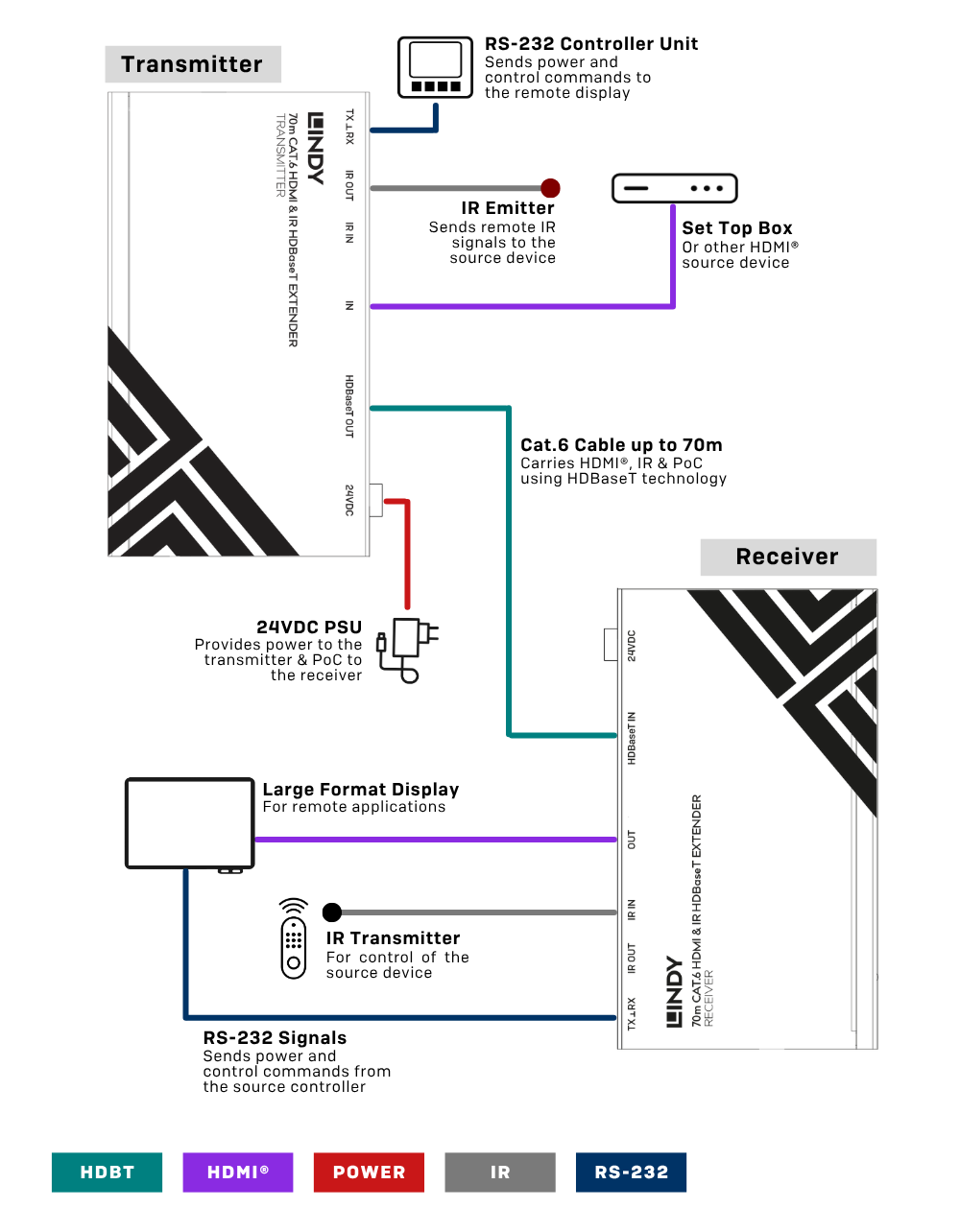

INSTALLATION EXAMPLE
TYPICAL SECTORS
Broadcasting & Media Production
Education & Training
Retail & Point of Sale
Healthcare
Digital Signage
Meeting Rooms
APPLICATIONS
Digital Signage
Distribute 4K content to remote displays from a central source.
System Integration
Extend HDMI® with IR/RS-232 for control and automation.
Education
Connect AV racks to projectors in large classrooms or lecture halls.
Events
Rapid deployment of long-distance AV with local device control.
Control Rooms
Extend sources to monitoring displays with remote switching.
Conference Rooms
Deliver flawless 4K visuals from discreetly installed equipment.
TRUST HDBaseT. EXTEND WITH LINDY.
With HDBaseT transmission, 4K30 resolution, Power over Cable, and versatile control options, the Lindy 70m HDMI® Extender is the go-to solution for AV professionals. Whether you’re building a fully automated conference system or a flexible signage setup, it delivers clean, controlled, long-distance AV with ease.
