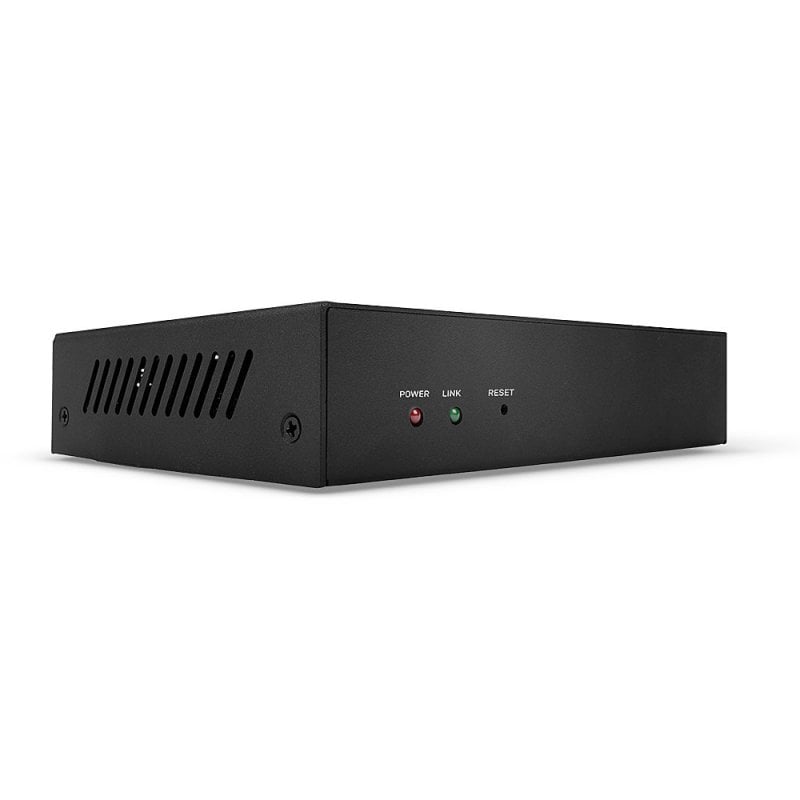

HDMI over Powerline Extender, Transmitter

Part No: 38225
  • £91.50
57 In Stock Now   |
Loading...

Product Summary

  • Extends HDMI® signals over a single powerline circuit
  • Transmit content to 3 compatible receivers, as well as to a local HDMI® display
  • Supports resolutions up to Full HD 1920x1080@60Hz
  • Receive IR signals from the display side of the setup
  • 2 year warranty



HDMI® over Powerline extenders provide a useful solution for extending HDMI® content to one or more displays within one electrical circuit.

The Lindy HDMI® over Powerline Transmitter is one part of a high-quality solution for extending HDMI® content from a source device to a display using a single electrical power circuit. Combined with the compatible receiver unit, this extender provides simple, hassle-free content distribution within small office, store front or residential setups.

Supporting resolutions up to 1920x1080@60Hz ensuring excellent Full HD quality for the user. This device is ideal for sharing video and audio content into bedrooms, home offices or small-scale digital signage using pre-existing electrical wiring.

An HDMI® loop-out allows for connection of a local HDMI® display, while connection to 3 compatible receivers allows for larger scale distribution to multiple displays. A 3.5mm IR connection also allows for simple control from the display side of the setup.

Specifications

  • AV Interface: HDMI®
  • Interface Standard: 1.3
  • Supported Bandwidth: 6.75Gbps
  • Maximum Distance: -
  • Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
  • HDCP Support: 1.4
  • EDID Pass Through: Pass-through
  • Supported Audio: LPCM 2CH
  • Separate Audio Ports: -
  • IR Support: 20-60kHz
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: IEC
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: ITE
  • Special Features: Output to 3 Receivers, HDMI® Local Loop Out

Connectors

  • Transmitter Input: HDMI® Type A (Female)
  • Transmitter Output: HDMI® Type A (Female), 3.5mm IR (Female), IEC C6 (Male)
  • Receiver Input: -
  • Receiver Output: -
  • Bi-directional Ports: -
  • Power : IEC C6 (Male)

Physical Properties

  • Dimensions (approx.) WxDxH: 135x29x96.5mm (5.31x1.14x3.8in)
  • Housing Material: Metal
  • Net Weight: 1.049kg (2.31lb)
  • Operating Temperature : 32°C - 104°C (90°F - 219°F)
  • Storage Temperature: -4°C - 104°C (25°F - 219°F)
  • Humidity: 20 -90% RH (non-condensing)
  • Power Requirements: 100-240 VAC
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 262x80x150mm (10.31x3.15x5.91in)
  • Gross Weight: 1.268kg (2.8lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • HDMI® over Powerline Extender, Transmitter
  • IR Emitter Cable, 1.5m
  • Multi-country C5 Power Cables (UK, EU, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 38225
  • EAN: 4002888382250
