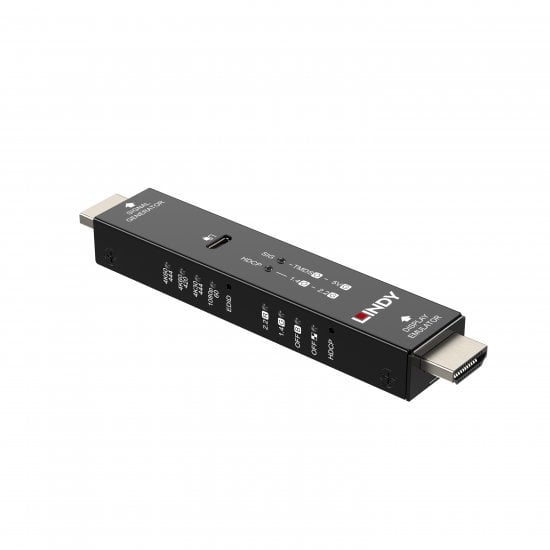

HDMI 4K60 Signal Generator & Display Emulator

The Lindy HDMI® 18G Signal Generator & Display Emulator is an essential tool for AV installers and system integrators, to test and emulate HDMI® signals. This portable device provides 4 EDID HDMI® resolutions: 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, or 1080p@60Hz. The selection can be done by pushing the EDID button on one side of the unit.

Connecting as display emulator, the unit can detect the HDCP content and signal status (5V, TMDS); 4 different patterns  show HDCP status while LEDs help the user selecting the desired choice.

No software or additional cables is needed, it can be connected directly to a source or display via HDMI® male connectors.

The unit is felf-powered from the HDMI® source when used as display emulator, while an external USB power supply is required when it's connected as signal generator.

With a extremely compact and portable design, this device can be easily added to any AV installers testing kit, perfect for on-the-go installers in both small home setups or larger scale professional installations.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: HDMI®
• Interface Standard: 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2 and 1.4
• EDID selection: 4K60 444, 4K60 420, 4K30 444, 1080p@60Hz
• Control: micro buttons
• Special Features: signal generator, display emulator, HDCP analyzer

Connectors

• Input: HDMI® Type A (Male)
• Output: HDMI® Type A (Male)
• Other Connections: USB Micro-B (Female)
• Power: USB Micro B (generator)

Physical Properties

• Dimensions (approx.) WxDxH: 100x22x13.6mm (3.94x0.87x0.54in)
• Housing Material: Metal
• Net Weight: 0.04kg (0.09lb)
• Operating Temperature: -5°C - 55°C (23°F - 131°F)
• Storage Temperature: -25°C - 70°C (-13°F - 158°F)
• Humidity: 10~90% RH (non condensing)
• Power Requirements: 1.2W
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions WxDxH: 122x60x18mm (4.8x2.36x0.71in)
• Gross Weight: 0.075kg (0.17lb)
• Warranty (Years): 3
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

• HDMI® 4K60 Signal Generator & Display Emulator
• USB Type A to Micro B cable
• Stainless pin
• Lindy Manual

Purchasing Information

• No.: 32683
• EAN: 4002888326834
