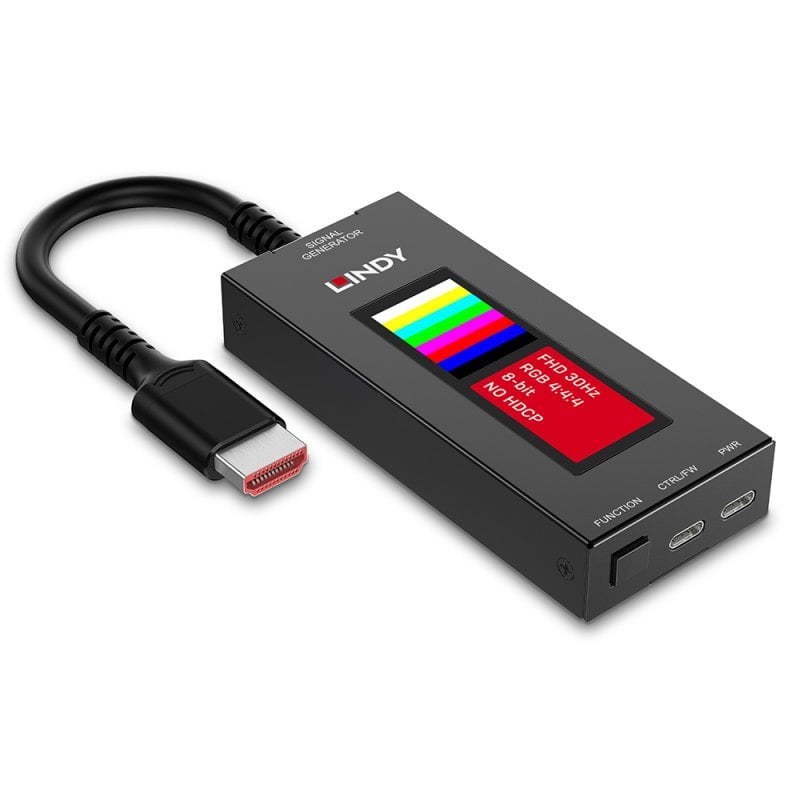

HDMI 8K30 Signal Generator

Part No: 32696
  • £350.30
221 In Stock Now   |
Loading...

Product Summary

  • Generate HDMI® 2.1 signals up to 40Gbps with support for resolutions up to 8K30, providing a reliable reference source for testing displays, cables and AV installations
  • Includes 13 built-in test patterns and multiple preset modes to simplify display validation, system commissioning and fault diagnosis across a wide range of professional environments
  • Supports RGB and YUV colour spaces, HDCP 2.3 and colour depths up to 12-bit, enabling accurate testing of modern HDMI® display systems
  • Compact USB-C powered metal enclosure with integrated LCD screen, push-button controls and dedicated USB-C port for firmware upgrades and serial communication
  • Backed by a 3 year warranty for dependable long-term performance

SECTION 1 - HERO HEADLINE

Generate Reliable HDMI® Test Signals with Confidence



The Lindy HDMI® 8K30 Signal Generator creates stable, high-bandwidth HDMI® test signals up to 40Gbps, allowing AV installers, integrators and engineers to validate displays, verify installations and troubleshoot systems with confidence.

SECTION 2 - FEATURE CALLOUT

Create a Known-Good HDMI® Signal for Fast Display Testing

Whether commissioning a new AV installation, validating a display or troubleshooting a suspected fault, the HDMI® 8K30 Signal Generator provides stable reference signals with multiple resolutions, colour formats and built-in test patterns. This enables installers and engineers to isolate problems quickly and verify system performance without relying on external source devices.

SECTION 3 - AT A GLANCE

At a Glance

Professional signal generation
Creates HDMI® 2.1 signals up to 40Gbps for display validation and system testing.

13 built-in test patterns
Verify image quality, colour reproduction and display performance with integrated test images.

Portable field tool
Compact metal enclosure with integrated LCD display for convenient on-site operation.

USB-C connectivity
USB-C power with a dedicated communication port for firmware upgrades and serial control.

SECTION 4 - KEY BENEFITS

Key Benefits

Generate reliable reference signals
Create stable HDMI® outputs across a wide range of resolutions and formats, allowing installers to verify displays, cabling and AV equipment with a trusted source signal.

Validate display performance quickly
The integrated test patterns provide a fast and effective way to check colour reproduction, scaling, sharpness and overall display quality without requiring external content.

Supports modern HDMI® installations
With HDMI® 2.1 compatibility, bandwidths up to 40Gbps and support for RGB and YUV colour spaces up to 12-bit colour depth, the generator is ready for today's professional AV systems.

Designed for field engineers
The lightweight metal enclosure, integrated LCD display and intuitive push-button controls make the generator easy to transport, configure and operate during installation, commissioning and service visits.

Flexible USB-C management
A dedicated USB-C communication port supports firmware upgrades and serial communication, while a separate USB-C power input enables convenient operation from standard USB power supplies.

Built for dependable operation
Designed for professional AV environments, the robust construction and straightforward standalone operation provide reliable performance whether used on-site, in workshops or during system commissioning.



SECTION 5 - TYPICAL APPLICATIONS

Typical Applications

The HDMI® 8K30 Signal Generator is ideal for AV installers, systems integrators, consultants, service engineers and technical support teams who need to verify display performance, commission new installations or troubleshoot HDMI® connectivity issues. It is equally suited to meeting rooms, education environments, digital signage, broadcast facilities and professional AV applications where reliable signal generation simplifies testing, speeds up fault diagnosis and reduces installation time.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The generator supports HDMI® 2.1 with bandwidths up to 40Gbps and can generate resolutions up to 7680x4320 at 30Hz (4:4:4, 12-bit). It supports RGB and YUV colour spaces, colour depths up to 12-bit, HDCP 2.3 and includes 13 integrated test patterns together with multiple preset operating modes for comprehensive display validation.

Operation is performed using the integrated LCD display and intuitive push-button controls, while a dedicated USB-C communication port supports firmware upgrades and serial communication. A separate USB-C input provides power, allowing convenient operation from standard USB power sources.

The compact metal enclosure measures approximately 260 × 48 × 19mm and is supplied with two USB Type-C to Type-A cables for power and connectivity. The generator is backed by a comprehensive 3-year warranty for dependable long-term performance.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

  • AV Interface: HDMI®
  • Interface Standard: 2.1
  • Supported Bandwidth: 40Gbps
  • Maximum Resolution: 7680x4320@30Hz 4:4:4 12bit
  • Colour Depth: up to 12bit
  • HDCP Support: 2.3
  • Test patterns: 13
  • Control: Push Button
  • Special Features: LCD display, serial communication
  • Input: -
  • Output: HDMI® Type A (Male)
  • Other Connections: USB-C (Female) for FW upgrade & serial communication
  • Power: USB-C (Female)

Physical Properties

  • Dimensions (approx.) WxDxH: 260x48x19mm (10.24x1.89x0.75in)
  • Housing Material: Metal
  • Net Weight: 0.19kg (0.42lb)
  • Operating Temperature: -5°C - 55°C (23°F - 131°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 0% ~ 80% RH (non condensing)
  • Power Requirements: 5V 1A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 292x144x32mm (11.5x5.67x1.26in)
  • Gross Weight: 0.37kg (0.82lb)
  • Warranty (Years): 3
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH, CP65

Package Contents

  • HDMI® 8K30 Signal Generator
  • 2x USB Type C/A Cable
  • Lindy Manual
