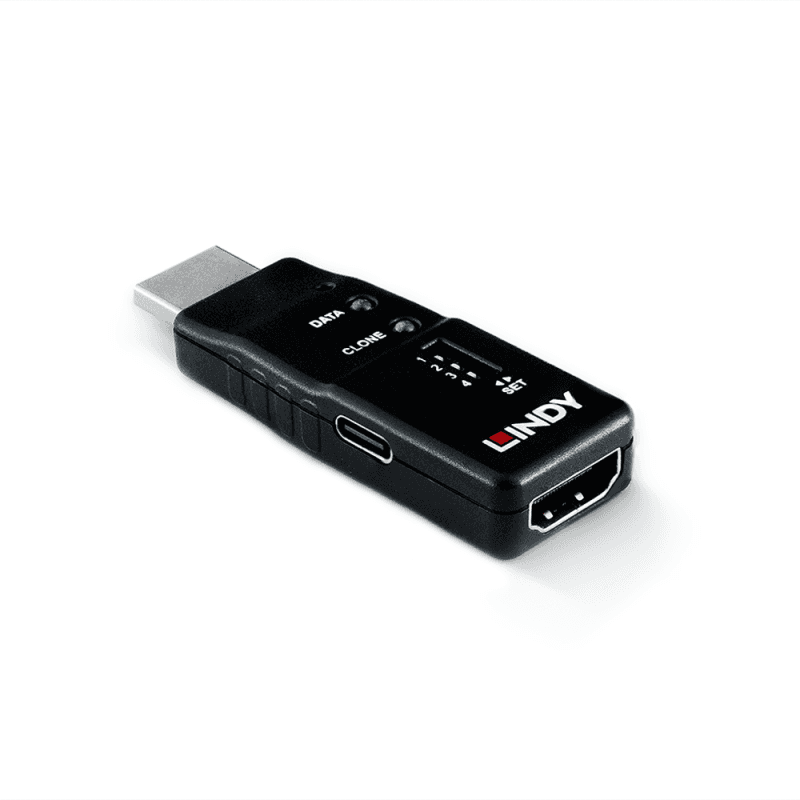

HDMI 8K60 EDID Feeder

The Lindy HDMI® 8K60 EDID Feeder adapter is designed for systems that require an uninterrupted signal to overcome EDID related issues that commonly occur when using AV equipment such KVM's, Extenders, Splitters & Switches. With the small-scale and minimalistic design, this is a handy connectivity solution for both AV and IT installers to ensure legacy and new HDMI® equipment works seamlessly with no compromise on performance.

With support for resolutions up to 7680x4320@60Hz or 3840x2160@120Hz HDR (Via cloning), HDCP 2.3 pass-through, this emulator is perfect for use with any HDMI® device

This adapter provides a fast and reliable way to clone EDID data directly from an HDMI® display, ensuring that your graphics card always receives accurate and consistent display information. By capturing the display’s EDID settings, it helps eliminate common compatibility issues such as incorrect resolutions, display drop-outs, or handshake problems making it ideal for professional AV installations, testing environments, and system integration work.

A key advantage of this unit is its eight independent EDID memory slots, allowing you to store and manage up to eight individual EDID profiles at once. Each slot can hold a different EDID configuration, giving you the flexibility to switch between multiple monitors, resolutions, and setups without needing to re-clone every time. Selection is made easily and instantly using the on-board DIP switch, providing full control and a clear, reliable workflow for multi-display environments or repeated installation tasks.

The cloning process takes less than 10 seconds, meaning you can capture, store, and deploy EDID data quickly – perfect for time-sensitive or high-volume installation work. For a full technical breakdown and operating instructions, please refer to the Technical Information section.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc

Specification

• AV Interface: HDMI®
• Interface Standard: 2.1
• Supported Bandwidth: 48Gbps
• Maximum Resolution: 7680x4320@60Hz 4:4:4 10Bit
• Audio EDID: Sample size: 16 to 24 bits, sample rates: 32kHz up to 192kHz
• HDCP Support: HDCP 2.3
• Special Features: Headless connection (no monitor connection required)

Connectors

• Input: HDMI® Male
• Output: HDMI® Female
• Power: Via HDMI® source interface
• Data: USB-C

Physical Properties

• Dimensions WxDxH: 64.5x22.5x11mm (2.53x0.88x0.43lb)
• Housing Material: ABS
• Net Weight: 0.013Kg (0.028lb)
• Operating Temperature: 0°C - 50°C (°32F - °122F)
• Storage Temperature: -20°C - 70°C (°-4F - °158F)
• Humidity: 0-80% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 136x146mm (5.35x5.74in)
• Gross Weight: 0.036Kg (0.079lb)
• Warranty (Years): 3
• Product Compliance: CE, FCC, RoHS, REACH, TAA

Package Contents

• EDID Emulator
• Lindy Manual

Purchasing Information

• No.:  32105
• EAN: 4002888321051

• Manual for 32105 HDMI 8K60 EDID Feeder
• UKCA for 32105 HDMI 8K60 EDID Feeder
• EDID bin default file for 32105 HDMI 8K60 EDID Feeder
