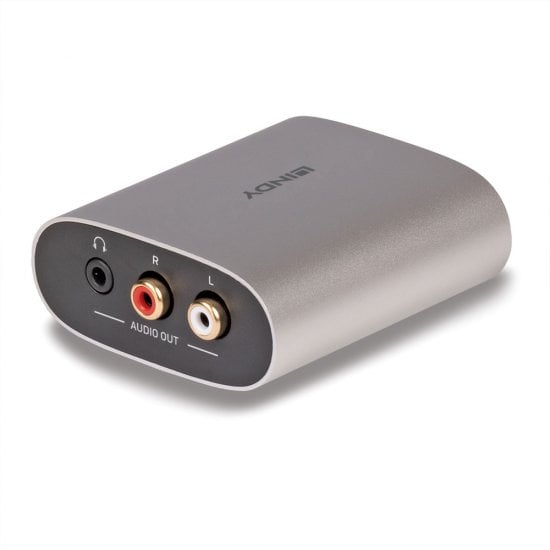

HDMI ARC Audio Extractor

The Lindy HDMI® ARC Audio Extractor is an effective solution for extracting audio from a HDMI® display to analogue audio devices.

The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.

This audio extractor allows output to HDMI® and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup.

With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device.

The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• Video Interface: HDMI®
• Interface Standard: HDMI® 1.4
• Supported Bandwidth: N/A
• Maximum Resolution: N/A
• HDCP Support: N/A
• Audio Interface: Analog Audio 3.5mm & RCA
• Chipset: SPHE8107S
• Supported Audio: N/A
• Maximum Supported Audio Sample Rate: 192k
• Input Impedance: N/A
• Output Impedance: 100R
• Output Voltage: N/A
• Frequency Response: 20 Hz to 20 kHz   -0.05 - +0.05dB
• Signal to Noise Ratio: 101db
• Special Features: N/A

Connectors

• Input: 1 x HDMI® Type A [19-Pin Female] / 1 x Micro USB
• Output: 1 x L/R Audio Out [RCA] / 1 x 3.5mm L/R
• Power: USB 5V/500mA 0.86W (Max)

Physical Properties

• Dimensions (approx.) WxDxH: 70 x 65 x 27mm (2.75 x 2.55 x 1.06in)
• Housing Material: Plastic
• Net Weight: 0.081kg (0.17lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C(-4°F - 140°F)
• Humidity:  20-90% RH (non-condensing)
• Power Requirements: USB 5V/500mA 0.86W (Max)
• Colour: Silver

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 146 x 105 x 65mm (5.74 x 4.13 x 2.55in)
• Gross Weight: 0.174kg (0.38lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• 1 x HDMI® ARC Audio Extractor
• 1 x 1m USB Cable (USB-A to Micro USB)
• 1 x Lindy User Manual

Purchasing Information

• No.: 38363
• EAN: 4002888383639
