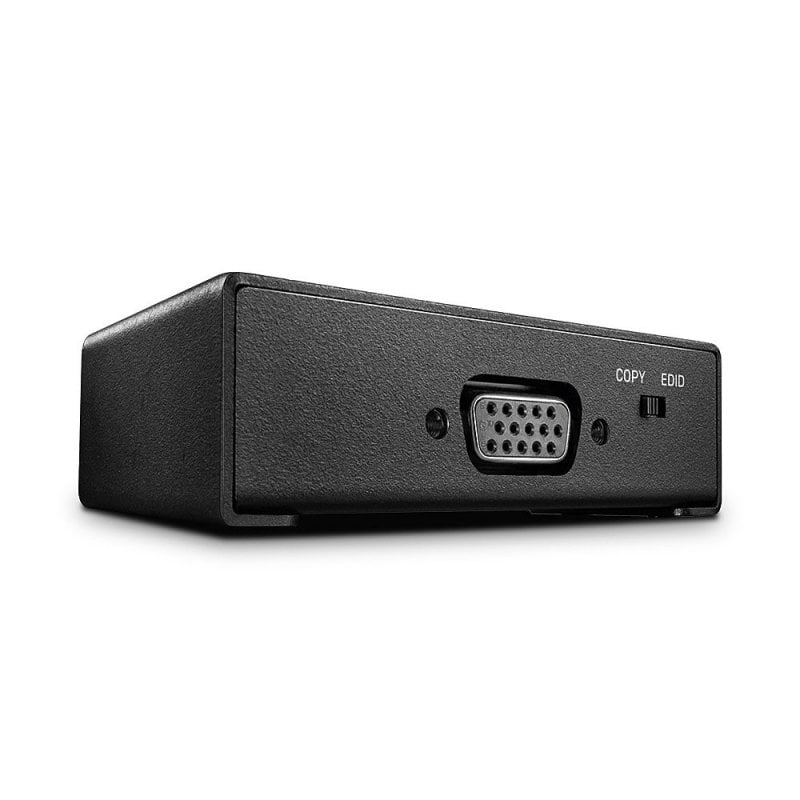

HDMI, VGA, DVI EDID Recorder

Part No: 32120
  • £72.04
17 In Stock Now   |
Loading...

Product Summary

  • Stores EDID data to ensure maximum compatibility between a source and display
  • Clones and stores EDID / DDC information from a HDMI®, VGA or DVI display
  • Overwrites pre-set EDID of emulators with stored EDID for time saving compatibility
  • For use with HDMI® (32104), VGA (32121) and DVI (32122) EDID Emulators
  • 3 Year Warranty

The Lindy EDID Recorder is a useful solution to solving a variety of EDID compatibility issues that may occur when connecting mixed displays or using splitters, extenders or switches.

This recorder intelligently copies a connected HDMI®, VGA or DVI displays EDID and stores it, to then be repeatedly used with Lindy’s range of EDID emulators (32104, 32121 and 32122), overwriting the emulator’s pre-set EDID to ensure seamless compatibility within the installation. The EDID recorder’s simple switch for copying EDID information allows for hassle free use for both professional and first time users.

This recorder is also backwards compatible with previous Lindy EDID emulators 32101 and 32102.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specification

  • AV Interface: HDMI® / VGA / DVI
  • Interface Standard: 2.0
  • Supported Bandwidth:
  • HDMI®: 18Gbps
  • VGA: 4.95Gbps
  • DVI: 9.9Gbps
  • Maximum Resolution:
      • HDMI®: 3840x2160@60Hz 4:4:4 8bit
      VGA: 1920x1200@60Hz
      DVI: 2560x1600@60Hz
  • Video EDID: -
  • Audio EDID: -
  • HDCP Support: -
  • Special Features: -

Connectors

  • Input: HDMI® Type A (Female), VGA (Female), DVI-D (Female)
  • Output: -
  • Power: 3.5/1.35mm

Physical Properties

  • Dimensions (approx.) WxDxH: 48x22x73mm (1.89x0.87x2.87in)
  • Housing Material: Metal
  • Net Weight: 0.234kg (0.52lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 2A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 185x55x140mm (7.28x2.17x5.51in)
  • Gross Weight: 0.313kg (0.69lb)
  • Warranty (Years): 3
  • Certified: CE, UKCA, FCC, RoHS, REACH, TAA

Package Contents

  • EDID Recorder
  • Multi-country PSU (UK, EU, US & AUS)
  • Lindy Manual

Purchasing Information

  • No.: 32120
  • EAN: 4002888321204
