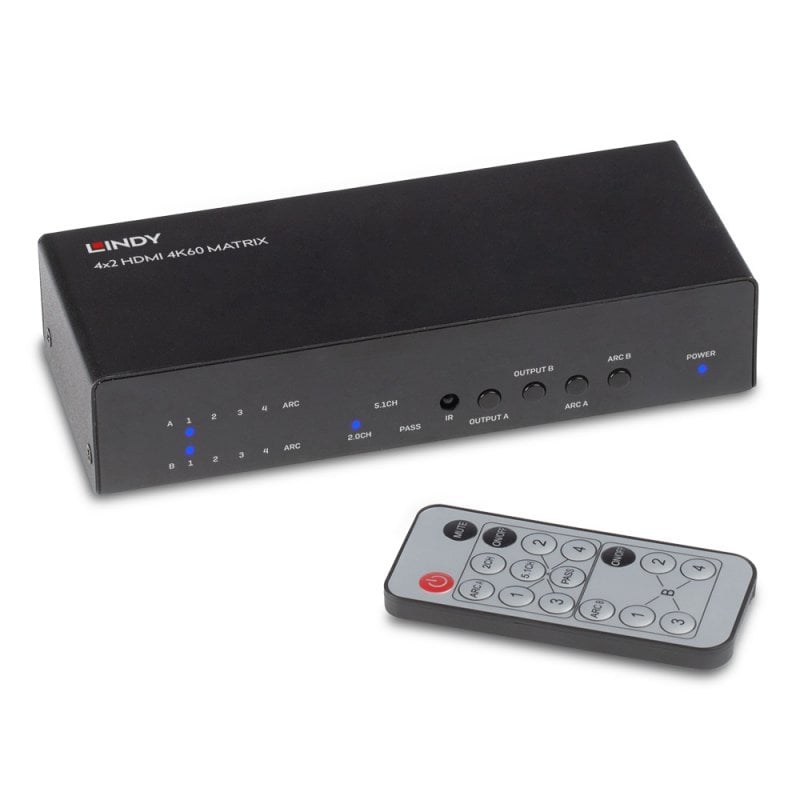

4x2 HDMI 4K60 Matrix

The Lindy 4x2 HDMI® 4K60 Matrix Switch is a high performance solution for distributing content from multiple source devices to two displays. Supporting HDMI® 2.0 18G signals, this matrix allows for the transmission of clear 4K Ultra HD 60Hz resolutions, while additional support for High Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail or hospitality or creating engaging educational setups. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.

As well as HDMI® audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.

This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Please Note: If you are an existing owner of this product, two versions exist with different connectors.

Please refer to the manuals to find out which version you have.

Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 2.0
• Supported Bandwidth: 18Gbps
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio:
• HDMI® Audio Pass-through
• Toslink (Optical) Up to 5.1CH
• Stereo Analogue
• IR Support: 38kHz
• CEC Support: -
• Serial Interface: -
• LED / LCD Display: -
• Control: Push Button, IR
• Special Features: EDID Management, ARC Support, 4K - 1080p Downscaling Functionality, Dual Audio Extraction

Connectors

• Input: 4 x HDMI® (Female)
• Output:
• 2 x HDMI® (Female)
• 2 x 3.5mm (Female)
• 2 x Coaxial (Female)
• 2 x TOosLink (Optical) (Female)
• Control: -
• Power: 3.5/1.35mm

Physical Properties

• Dimensions (approx.) WxDxH: 210x66x26.5mm (8.27x2.6x1.04in)
• Housing Material: Metal
• Net Weight: 0.348kg (0.77lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 5 - 90% RH (non-condensing)
• Power Requirements: 5VDC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton box
• Packaging Dimensions: 243x60x196mm (9.57x2.36x7.72in)
• Gross Weight: 0.636kg (1.4lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

 Package Contents

• HDMI® Matrix
• IR Remote Control & CR2025 Battery
• Multi-Country Power Supply  (EU, UK, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38084
• EAN: 4002888380843
