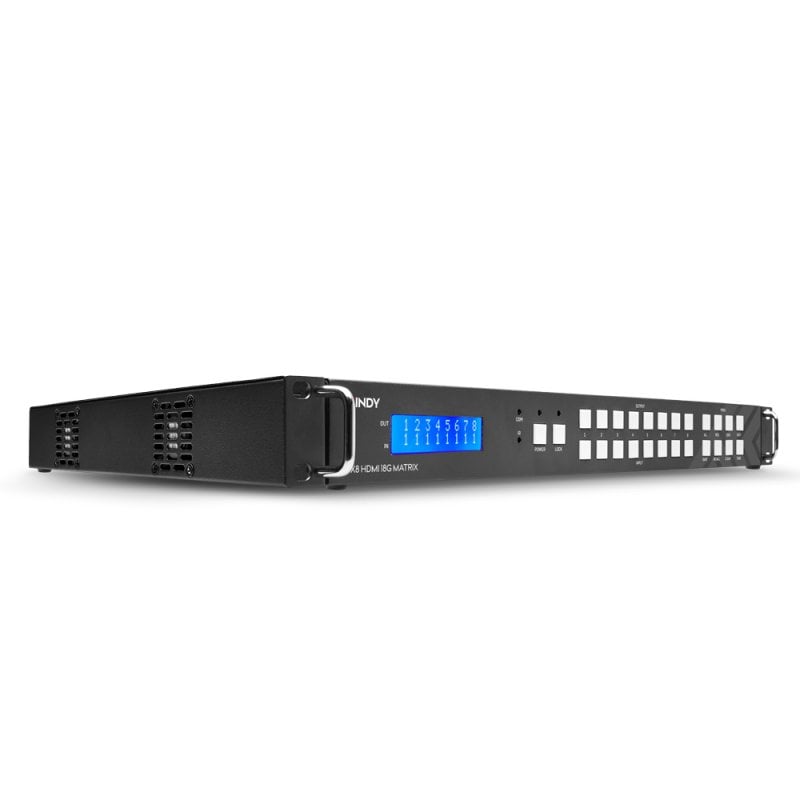

8x8 HDMI 18G Matrix with Video Wall Scaling

Part No: 38260
  • £4,235.02
13 In Stock Now   |
Loading...

Product Summary

  • Switches between 8 HDMI® source devices and 8 HDMI® displays as a professional matrix
  • Creates single video walls (up to 4x2) or multiple video walls (2x2)
  • Seamlessly switch between devices under 0.1ms
  • Control output scaling to ensure the optimum or consistent resolution is shown
  • 2 year warranty



SECTION 1 - HERO HEADLINE

Professional 8x8 HDMI® 18G Matrix with Video Wall Scaling



The Lindy 8x8 HDMI® 18G Matrix with Video Wall Scaling is a professional AV distribution solution for switching eight HDMI® sources to eight HDMI® displays, while also enabling flexible single or dual video wall configurations for demanding installations.

SECTION 2 - FEATURE CALLOUT

Seamless Switching with Scalable Video Wall Flexibility

Designed for professional AV environments, this matrix provides seamless switching between sources in under 0.1ms while supporting scalable single or dual video wall layouts up to 4x2. With output resolution scaling and independent audio extraction, it ensures consistent performance and flexible display control across a wide range of installations.

SECTION 3 - AT A GLANCE

At a Glance

8x8 HDMI® matrix switching
Route eight source devices to eight displays.

Seamless switching under 0.1ms
Instant transitions with no visible interruption.

Video wall creation up to 4x2
Build single or dual video wall layouts.

Output resolution scaling
Optimise or standardise display resolution.

SECTION 4 - KEY BENEFITS

Key Benefits

High quality 4K60 AV distribution
Supports resolutions up to 3840x2160@60Hz 4:4:4, delivering clear and detailed video for professional installations.

Flexible video wall configurations
Create customisable single video walls up to 4x2 or multiple 2x2 video walls for dynamic digital signage and display environments.

Output scaling for display consistency
User-controlled output scaling ensures the optimum or a consistent resolution is always shown across connected displays.

Seamless real-time switching
Instant source switching makes this matrix ideal for operation centres, monitoring systems and other live environments where continuity is essential.

Versatile control integration
Control via IR, push button, RS-232 and Telnet, with independent IR matrix support for straightforward operation and integration into larger systems.

Independent stereo audio extraction
2-channel analogue audio extraction allows separate audio routing for enhanced integration with external sound systems.



SECTION 5 - TYPICAL APPLICATIONS

Typical Applications

Ideal for sports bars, retail stores, transport hubs, hospitality venues, points of sale, security systems and operation centres, this matrix enables professional multi-display distribution, video wall creation and seamless switching in a wide variety of AV installations.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The Lindy 8x8 HDMI® 18G Matrix with Video Wall Scaling supports HDMI® 2.0 with bandwidth up to 18Gbps, resolutions up to 3840x2160@60Hz 4:4:4 8bit and HDCP 2.2. It features eight HDMI® inputs and eight HDMI® outputs, with additional 3.5mm audio connections for independent 2-channel analogue audio extraction.

Special features include seamless switching, video wall creation, output resolution scaling, independent audio extraction and independent IR matrix control. Control options include IR, push button, RS-232 and Telnet, while professional EDID management ensures broad compatibility with connected source devices and displays.

Housed in a durable metal chassis, the unit measures 430x300x44mm and operates from a 100W, 110-240VAC power input via IEC C14. It is designed for reliable professional use and is backed by a 2-year warranty.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

    • AV Interface: HDMI®
    • Interface Standard: 2.0
    • Supported Bandwidth: 18Gbps
    • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
    • HDCP Support: 2.2
    • Supported Audio
    • HDMI®
    • Audio Pass-through
    • 2CH Analogue Audio"
  • IR Support : 38kHz
  • CEC Support:  -
  • Serial Interface: RS-232
  • LED / LCD Display: Yes
  • Control:
      • IR
      Push Button
      RS-232
      Telnet
  • Special Features:
      • Seamless Switching
      Video Wall Creation
      Independent Audio Extraction
      Independent IR Matrix
      Output Resolution Scaling

Connectors

  • Input: 8 x HDMI® Type A (Female), 8 x 3.5mm (Female)
  • Output: 8 x HDMI® Type A (Female), 8 x 3.5mm (Female)
  • Control: RS-232 (Female), RJ-45 (Female), 8 x IR 3.5mm (Female)
  • Power: IEC C14 (Male)

Physical Properties

  • Dimensions (approx.): WxDxH 430x300x44mm (16.93x11.81x1.73in)
  • Housing Material: Metal
  • Net Weight: 5.236kg (11.54lb)
  • Operating Temperature:  0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 10-50% RH (non-condensing)
  • Power Requirements: 100W, 110-240VAC
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 550x120x36mm (21.65x4.72x14.17in)
  • Gross Weight: 6.26kg (13.8lb)
  • Warranty: (Years) 2
  • Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • 8x8 HDMI® Matrix
  • Multi-country C13 Power Cables, 1.5m
  • 8 x IR Emitter Cables
  • 8 x IR Receiver Cables
  • IR Remote & CR2025 Battery
  • Lindy Manual

Purchasing Information

  • No. 38260
  • EAN: 4002888382601
