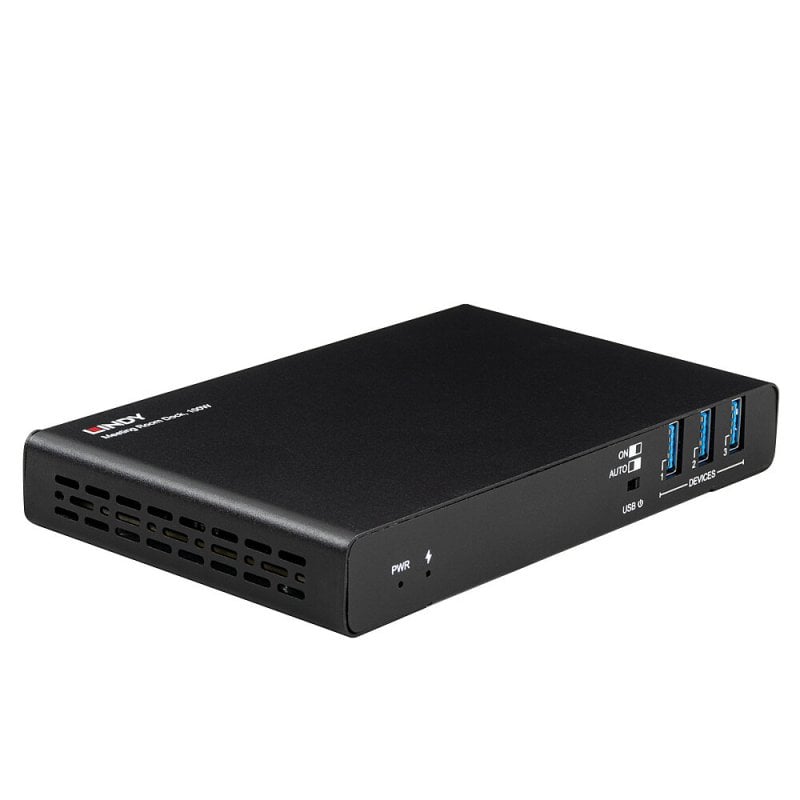

Meeting Room Dock, 100W

Part No: 43425
  • £619.42
34 In Stock Now   |
Loading...

Product Summary

  • All-in-one Dock for Meeting Room connectivity
  • Two HDMI® outputs with 4K video and audio support
  • USB Power Delivery 3.0 allows charging the laptop while the Dock is in use
  • Mounting options for clean installations
  • 2 year warranty

SECTION 1 - HERO HEADLINE

One Cable Connectivity for Modern Meeting Rooms



The Lindy Meeting Room Dock 100W provides a complete USB Type C connectivity solution for collaborative workspaces, enabling users to connect displays, USB peripherals, wired networks and power through a single cable for a streamlined meeting room experience.

SECTION 2 - FEATURE CALLOUT

Simplified Collaboration with Integrated Connectivity

Designed for hybrid working and professional meeting spaces, the Meeting Room Dock combines dual display support, USB peripheral connectivity, Gigabit Ethernet and up to 100W USB Power Delivery into a compact solution. By reducing multiple cables to a single USB Type C connection, it simplifies workstation setup, improves desk organisation and enables seamless collaboration for visiting users.

SECTION 3 - AT A GLANCE

At a Glance

Single USB Type C connection
Connects displays, peripherals, network and power through one cable.

100W USB Power Delivery
Charges compatible laptops while supporting connected devices.

Dual display capability
Supports high resolution external monitors for enhanced productivity.

Integrated USB and Ethernet
Provides reliable connectivity for peripherals and wired networks.

SECTION 4 - KEY BENEFITS

Key Benefits

Creates a cleaner meeting room experience
A single USB Type C connection replaces multiple cables for video, USB devices, networking and charging, allowing users to connect quickly with minimal setup.

Supports productive multi-display working
Connect compatible laptops to dual external displays for improved multitasking, presentations and collaborative working within professional meeting spaces.

Keeps laptops powered throughout meetings
Up to 100W USB Power Delivery charges connected notebooks while simultaneously supporting video output, USB peripherals and network connectivity.

Compatible with modern collaboration peripherals
Provides dedicated USB connections for cameras, speakerphones, keyboards, mice and storage devices, making it ideal for hybrid working environments.

Reliable wired networking
Integrated Gigabit Ethernet delivers consistent, secure network performance for video conferencing, cloud applications and large file transfers where Wi-Fi may be limited.

Designed for professional deployment
The compact enclosure and durable construction make the dock suitable for permanent meeting room installations, hot desks and collaborative workspaces.



SECTION 5 - TYPICAL APPLICATIONS

Typical Applications

The Meeting Room Dock 100W is ideal for conference rooms, huddle spaces, executive offices, hot-desking environments and educational facilities where users require immediate access to displays, wired networking, USB peripherals and laptop charging through a single USB Type C connection. It is equally suited to hybrid working environments that demand simple, reliable connectivity for a wide range of devices.



SECTION 6 - TECHNICAL SUMMARY

Technical Summary

The dock provides comprehensive USB Type C expansion including dual display outputs, multiple USB ports for peripherals, Gigabit Ethernet and audio connectivity. It supports high resolution video output while enabling simultaneous USB data transfer and network access through a single host connection.

USB Power Delivery supports charging compatible laptops with up to 100W, allowing connected devices to remain powered throughout meetings without requiring separate power adapters.

The compact desktop design is intended for permanent installation or flexible deployment within professional meeting spaces. The dock is supplied with a power supply and user documentation and is backed by a 2-year warranty.

Specifications

  • Interface: USB Type C to 2x HDMI® / 3x USB Type A / 1x USB Type C / 1x RJ45
  • Supported Bandwidth: HDMI® 2.1 with 40Gbps, USB 3.2 Gen 2 (10Gbps), Gigabit LAN (10/100/1000Mbps)
  • Maximum Input Resolution: 7680x4320 30Hz
  • Maximum Output Resolution: 2 x 3840x2160 60Hz / 1 x 7680x4320 30Hz
  • Chipset: AMS1117-1,.878M05, SY8368AQQC,P25Q40H-SSH, PCA9306DCUR, SY8089E1AAC, MX25V1606FM1I03, AX88179A, AP22652W6-7, FL5500-2F0,MP5036GJ-Z, VMM6210BYF_BGA100, MP4247GQV-0000, INA181A2IDBVR
  • Compatibility: USB Type C / Thunderbolt equipped computers with DisplayPort Alternate Mode support. Windows, macOS, Linux, Android, Chrome OS.
  • Power Delivery: PD 3.0 up to 100W (20V 5A)
  • HDCP Support: HDCP 2.3
  • Supported (HDMI) Audio: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus
  • Separate Audio Ports: -
  • Special Features: -

Connectors

  • Inputs: 1 x USB Type C (Female)
  • Outputs: 2x HDMI® (Female), 1x RJ45 (Female), 3x USB Type A (Female), 1x USB Type C (Female)
  • Power: 1x 4pin power socket

Physical Properties

  • Dimensions WxDxH: 160x23x100mm (6.3x0.91x3.94in)
  • Housing Material: Metal
  • Net Weight: 0.38kg (0.84lb)
  • Operating Temperature: -10°C - 55°C (14°F - 131°F)
  • Storage Temperature: -25 °C - 70°C (-13°F - 158°F)
  • Humidity: 10 - 90% RH (non-condensing)
  • Power Requirements: 16W
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 315x175x52mm (12.4x6.89x2.05in)
  • Gross Weight: 1.14kg (2.51lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, REACH & RoHS, CP65

Package Contents

  • Meeting Room Dock
  • DC 24V 6.5A Power Supply with 4pin power connector (male)
  • 4x IEC C13 Mains Cable (Schuko/UK/US/AUS)
  • 2x Mounting Ears with 4 screws
  • 4x Rubber Pads
  • Lindy Manual

Purchasing Information

  • No.: 43425
  • EAN: 4002888434256
