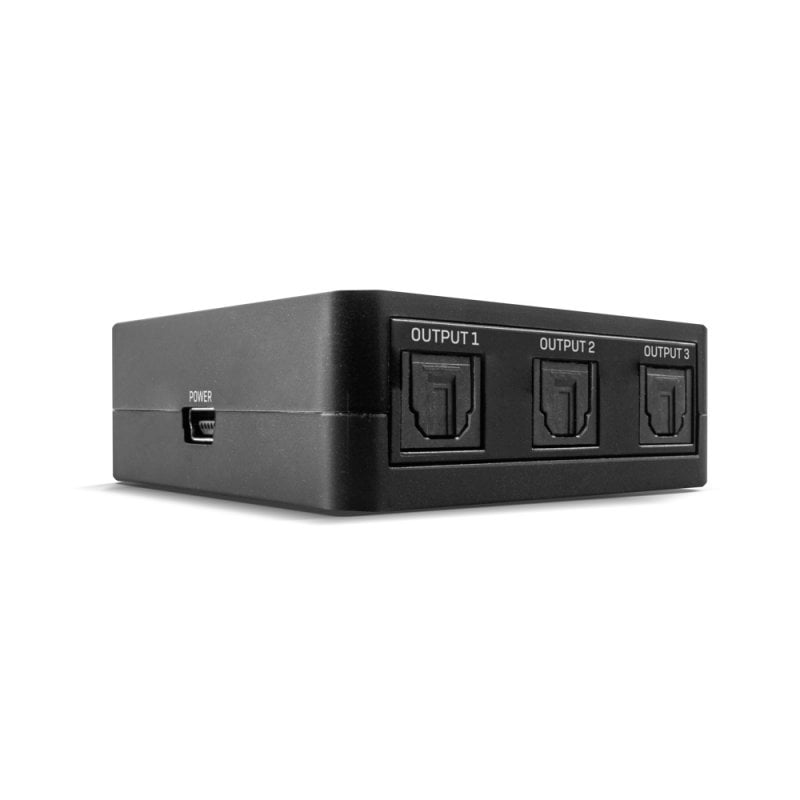

3 Port TosLink (Optical) Digital Audio Splitter

The Lindy 3 Port TosLink (Optical) Digital Audio Splitter allows the connection of up to 3 digital optical (SPDIF, TosLink) output devices such as; speakers, amplifiers or soundbars to a single digital audio source device.

Support for sampling rates up to 96kHz and audio and compatibility with multi-channel Dolby Digital & DTS audio formats ensures a reliable, loss-less audio transmission.

A compact, minimalistic design and low power requirement through USB ensures maximum flexibility within AV installations, ideal for smaller home AV configurations and larger office, education or retail applications.

Specifications:

• AV Interface: TosLink (Optical)
• Interface Standard: -
• Supports Bandwidth: -
• Maximum Resolution: -
• HDCP Support: -
• Supported Audio: LPCM2.0 / DTS / Dolby Digital
• Separate Audio Ports: -
• CEC Support: -
• Serial Interface: -
• Special Features: -

Connectors:

• Input: 1 x TosLink (Optical) (Female)
• Output: 3 x TosLink (Optical) (Female)
• Control: -
• Power: Mini-USB (Female)

Physical Properties:

• Dimensions (approx.) WxDxH: 54x60x20mm (2.13x2.36x0.79in)
• Housing Material: Plastic
• Net Weight: 0.054kg (0.12lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Humidity: 5-90% RH (non-condensing)
• Power Requirements: 2.5W
• Colour: Black

Miscellaneous:

• Packaging Type: Carton Box
• Packaging Dimensions: 133x105x24mm (5.24x4.13x0.94in)
• Gross Weight: 0.08kg (0.18lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents:

• 3 Port TosLink (Optical) Digital Audio Splitter
• USB Type A to Mini-B Cable, 0.76m
• Lindy Manual

Purchasing Information:

• No.: 70480
• EAN: 4002888704809

• Manual for 70480/70481 TosLink (Optical) Digital Audio Splitter
• Product Safety Information
