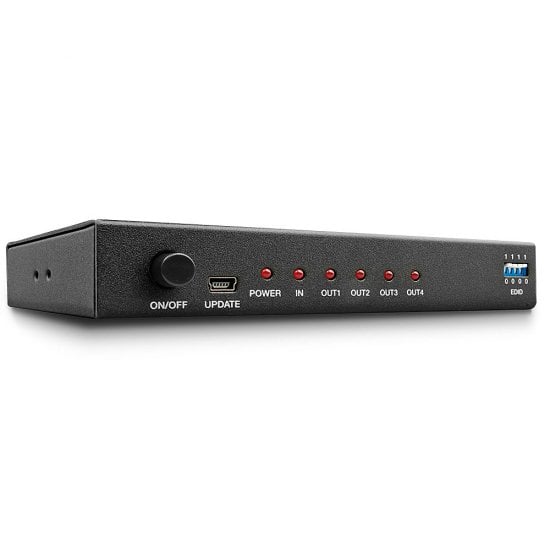

4 Port HDMI 10.2G Splitter

The Lindy 4 Port HDMI® 10.2G splitter is a low-cost, compact solution for distributing high quality 4K Ultra HD across four displays from a single source device. Supporting crystal clear 3840x2160@60Hz 4:2:0 resolutions, this splitter is ideal for retail or sports bar installations, or providing multi-screen playback in conference rooms. A simplistic EDID management system ensures hassle free installation, with optimum compatibility for a variety of displays, when connected to a wide range of source devices including media players, set-top boxes and games consoles.

The splitters minimalistic, compact housing provides a small footprint within the setup, with little distraction from the display.

Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI® 1.4
• Supports Bandwidth: 10.2G
• Maximum Resolution: 3840x2160@60Hz 4:2:0 8bit
• HDCP Support: 1.4
• Supported Audio: Pass-through
• Separate Audio Ports: -
• CEC Support: -
• Serial Interface: -
• Special Features: -

Connectors

• Input: HDMI® Type A (Female)
• Output: 4 x HDMI® Type A (Female)
• Control: -
• Power : 5.5/2.1mm

Physical Properties

• Dimensions (approx.) WxDxH: 146x71x25mm (5.75x2.8x0.98in)
• Housing Material: Metal
• Net Weight: 0.407kg (0.9lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity:  20 ~ 90% RH (Non-condensing)
• Power Requirements: 5VDC 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 215x150x55mm (8.46x5.91x2.17in)
• Gross Weight: 0.54kg (1.19lb)
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS & REACH

Package Contents

• HDMI® Splitter
• Multi-country Power Supply (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 38159
• EAN: 4002888381598

• User Manual For 2 & 4 Port 4K HDMI 1.4 Splitters
• Product Safety Information
