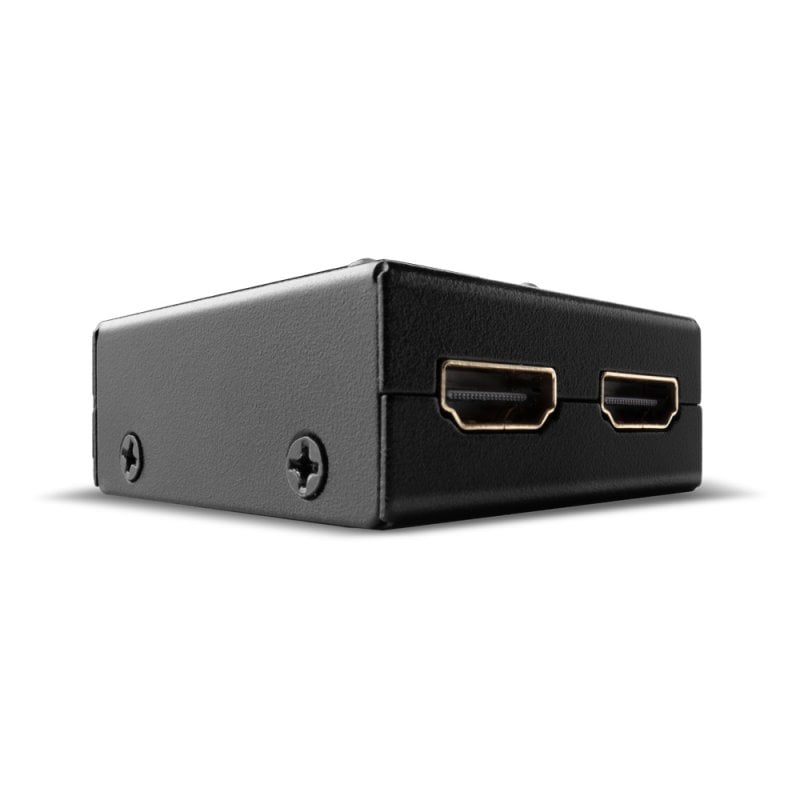

2 Port HDMI 18G Bi-Directional Switch

Part No: 38336
  • £29.64
104 In Stock Now   |
Loading...

Product Summary

  • Switches between two source devices to one output, or one source device to two outputs
  • Supports resolutions up to 4K 3840x2160 @60Hz
  • Supports HDMI® audio pass-through
  • No external power supply required, for easy and discreet installation
  • 2 year warranty

The Lindy HDMI® 18G Bi-directional Switch allows the user to connect two 4K Ultra High Definition source devices such as Blu-Ray players or games consoles to a single 4K Ultra HD display or projector and easily switch between them at the push of a button. Alternatively, connect one 4K Ultra HD source can be connected to two 4K Ultra HD displays or projectors and switch between displays at the touch of a button.

With support for resolutions up to 4K 3840x2160 @60Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.

The switch’s minimalistic design, with no external power requirement, allows for a clean, discreet installation.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

  • AV Interface: HDMI®
  • Interface Standard: HDMI® 2.0
  • Supports Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
  • HDCP Support: Pass-through
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • IR Support: -
  • CEC Support: Pass-through
  • Serial Interface: -
  • Special Features: Bi-Directional Capability

Connectors

  • Input: 2 x HDMI® Type A (Female) Bi-Directional
  • Output: HDMI® Type A (Female) Bi-Directional
  • Control: -
  • Power: Powered via HDMI® interface

Physical Properties

  • Dimensions (approx.) WxDxH: 49x52x20mm (1.93x2.05x0.79in)
  • Housing Material: Metal
  • Net Weight: 0.7kg (1.54lb)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)
  • Humidity: 10% to 85% RH (no condensation)
  • Power Requirements: -
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 63.5x80x28mm (2.5x3.15x1.1in)
  • Gross Weight: 0.84kg (1.85lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • 2 Port HDMI® 18G Bi-Directional Switch
  • Lindy Manual

Purchasing Information

  • No.38336
  • EAN: 4002888383363
