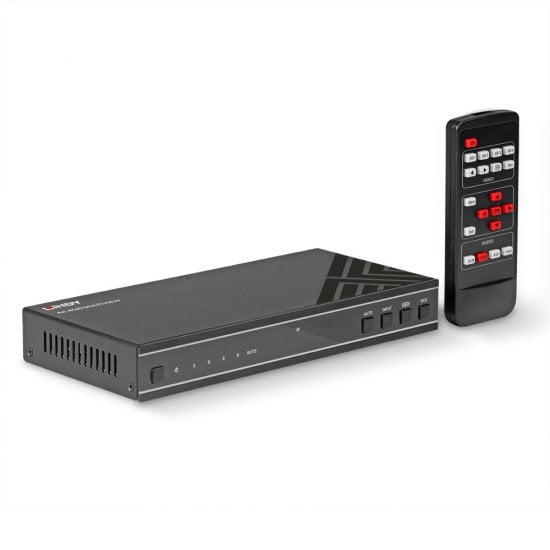

4x1 4K60 HDMI Seamless Multiview Switch

This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output.

In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;

• Digital Presentations
• CCTV Surveillance & Control
• Video Conference & Meeting rooms;

The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

• AV Interface: HDMI®
• Interface Standard: HDMI®
• Supports Bandwidth: 18Gbit/s
• Maximum Resolution: 3840 x 2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• Supported Audio: RCA / Optical de-embedding
• Separate Audio Ports: R/L / Optical / HDMI®
• IR Support: 38Khz
• Serial Interface: 3-pin Phoenix RS-232
• Special Features: PiP, PbP, Triple, Quad

Connectors

• Input: 4 x HDMI®
• Output: 1 x HDMI®
• Control: 3-pin RS-232, IR Remote Control
• Power: 5.5/2.1mm DC 12V/2.5A

Physical Properties

• Dimensions (approx.) 219[W] x 111 [L] x 30 [H] mm (8.6x4.37x1.18in)
• Housing Material: Metal
• Net Weight: 0.61kg (1.34lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -4°C - 140°C (-20°F - 60°F)
• Humidity: 20% - 90% RH (non-condensing)
• Power Requirements: 12VDC 2.5A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 280 x 179 x 78mm (11.02x7.04x3.07in)
• Gross Weight: 1.078kg (2.37lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH

Package Contents

• 1 x 4K60 HDMI® 4x1 Multiview Seamless UHD Video Switcher
• 1 x IR Remote Control
• 1 x 3pin-3.81mm Phoenix connector (male)
• 1 x 38KHz IR Wideband Receiver cable (1.5 Meters)
• 2 x Mounting Ears
• 4 x Machine Screws (KM3*4)
• 4 x Rubber Feet
• 1 x 12v/2.5A Locking Power Adapter
• 1 x User Manual

Purchasing Information

• No.: 38228
• EAN: 4002888382281

• UKCA for 38228
• Manual for 38228 4x1 HDMI switch
