VGA & Audio To HDMI Converter

Please Note: This product is a format converter, from analogue to digital, there is no resolution scaling.

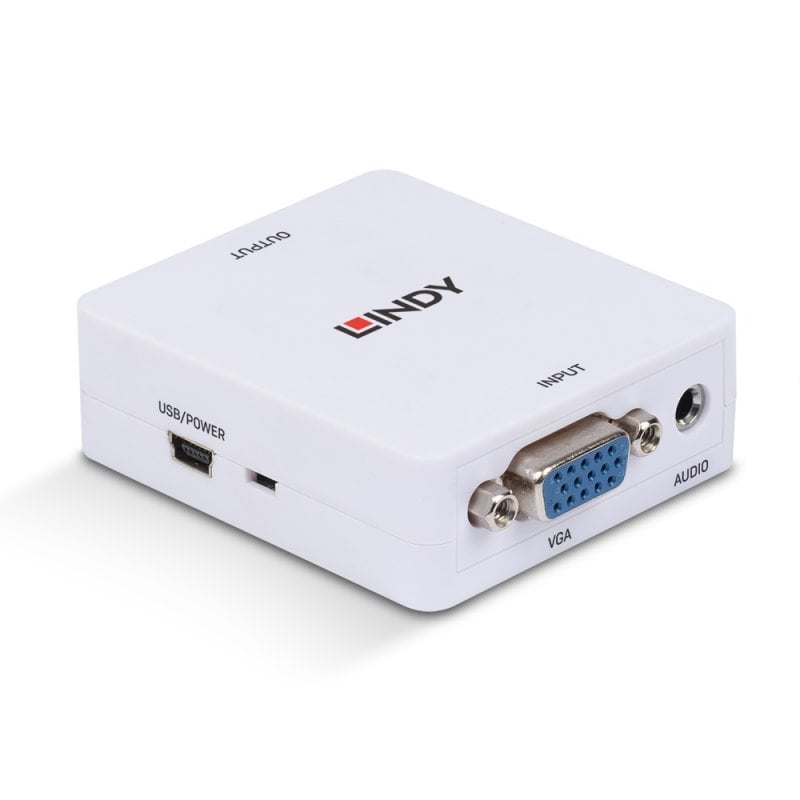

The VGA & Audio to HDMI® Converter is capable of combining analogue video and stereo audio signals and converting them into a HDMI signal, perfect for using legacy PC and AV equipment seamlessly with the latest LCD, LED and Plasma displays.

The VGA and Audio converter features simple plug and play installation, there is no configuration required as there is no scaling of the video signal, with the output resolution matching the input resolution.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

• Converts and combines analogue audio and video to HDMI®
• Supports 12bit per channel (36 bit total) deep colour
• Supports 225MHz/2.25Gbps per channel (6.75Gbps total) bandwidth
• Input resolution matches output resolution, no scaling
• Inputs: VGA & 2 x RCA
• Output: HDMI®
• HDMI® 1.2a and DVI 1.0 compliant
• Supported PC resolutions: 640x480, 800x600, 1024x768, 1280x720, 1280x768, 1280x960 & 1280x1024 @ 60/75Hz
• Supported HD resolutions: 480i, 576i, 480p, 576p, 720p, 1080i & 1080p @ 50/60Hz
• Power supply: 100~240V AC, 5V DC@ 1Amp centre positive
• Dimensions: 87 x 66 x 25mm (WxDxH)
• Weight: 0.2Kg
