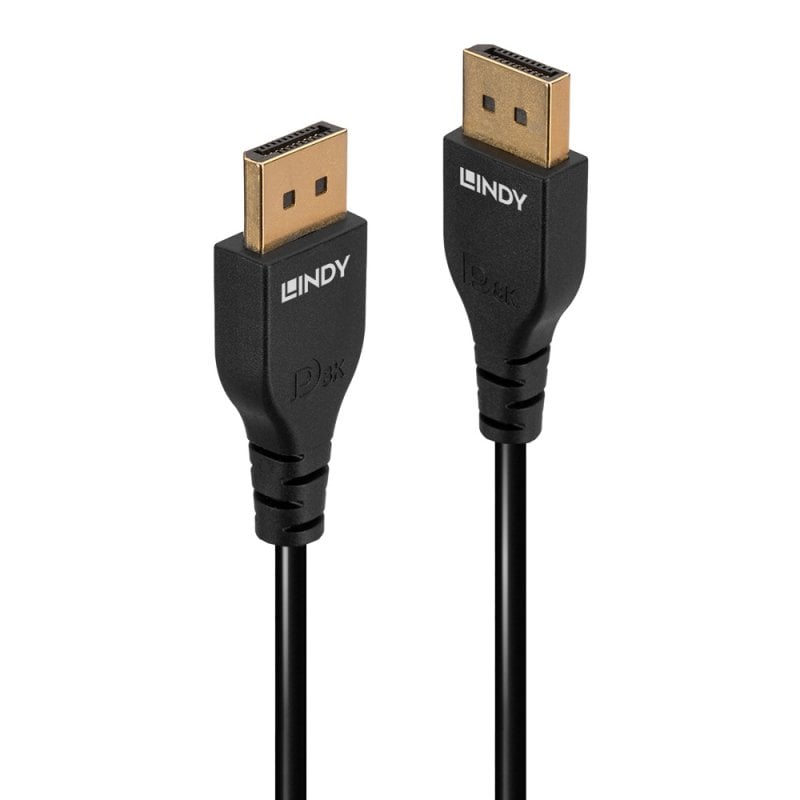

0.5m Slim DisplayPort 1.4 Cable

Part No: 36460
  • £15.41
105 In Stock Now   |
Loading...

Product Summary

  • Professional choice slim DisplayPort 1.4 cable with low profile connectors
  • Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit and 4K 4096x2160@144Hz 4:2:2 10bit
  • Robust ABS housing with 24K gold-plated connectors and contacts
  • Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
  • 10-year warranty

Lindy’s range of slim DisplayPort cables provide a more flexible and high-quality DP connection solution, utilising a specially designed compact, low profile connector and a smaller diameter cable structure.

With their compact, high performance design, these cables are ideal for situations where space is limited around source & display ports, such as with gaming monitors or graphics cards. Their triple shielded 30AWG pure copper conductors ensure overall improved performance, while gold-flashed phosphor bronze pins protect against corrosion and fatigue. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Supporting DP 1.4 resolutions including 8K@60Hz and 4K@144Hz, these cables are great for high-level gaming setups, whether in the home or in an eSports arena, or alternatively with small-scale, digital signage installs such as Shop-in-Shops or concession stands. With lengths available in 0.5, 1, 2 and 3m, they are also a versatile solution for collaborative huddle spaces or engaging education setups when combined with a touch panel or LFD (large format display).



Connectors

  • Connector A: DisplayPort Male (Non-Latching)
  • Connector B: DisplayPort Male (Non-Latching)
  • Housing Material: PVC
  • Connector Plating: Gold plated
  • Pin Construction: Phosphor bronze
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: WxDxH: 19.4x9.6x42.6mm (0.76x0.37x1.66in)

Cable Construction

  • Length: 0.5m (1.64ft)
  • Standard: DP 1.4
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.7mm (0.22in)
  • Jacket Material: PVC
  • Conductor Material: Copper
  • Conductor Gauge: 30AWG
  • Shielding: Tinned Copper Braid 85%

Specifications

  • Supported Bandwidth: 32.4 Gbps
  • Maximum Resolution: 7680x4320@60Hz 4:2:2
  • Nominal Attenuation:
  • -5.5dB @1350MHz
  • -8.5dB @2700MHz
  • -11dB @4050MHz
  • Minimum Bend Radius: 45.6mm (1.79in)
  • Operating Temperature: 10°C - 80°C (50°F - 176°F)
  • Storage Temperature: -0°C - 80°C (32°F - 176°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL (Raw Cable)

Purchasing Information

  • No.: 36460
  • EAN: 4002888364607

This product is also available in other lengths:

  • 36460 - 0.5m (1.64ft)
  • 36461 - 1m (3.28ft)
  • 36462 - 2m (6.56ft)
  • 36463 - 3m (9.84ft)
