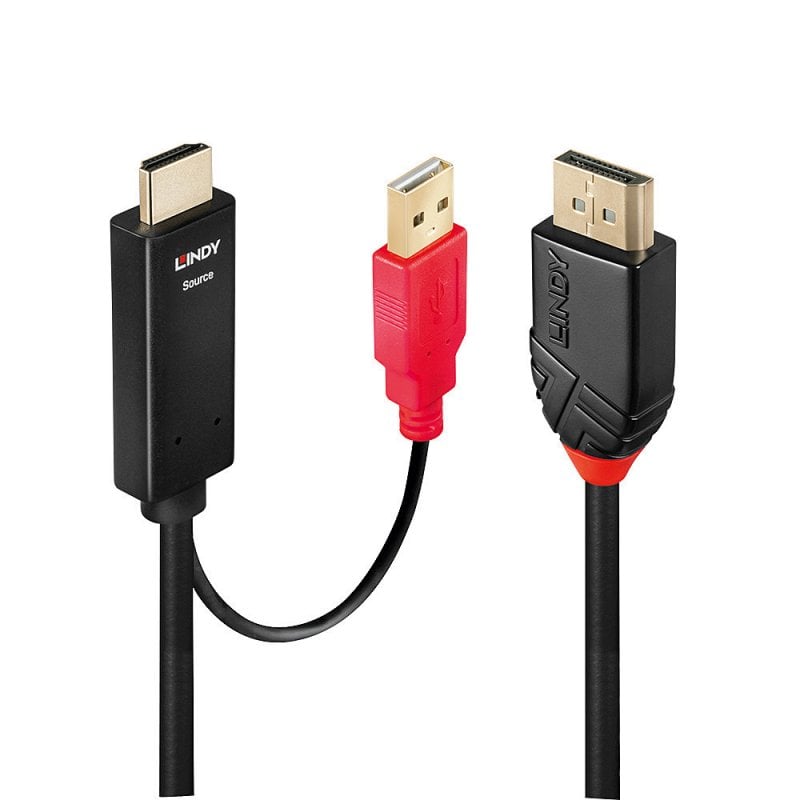

1m Active HDMI to DisplayPort 4k30Hz Adapter Cable

Lindy’s HDMI® to DisplayPort cables combine sleek, modern design with superior performance to provide a high quality conversion of HDMI® signals to output to a DisplayPort display. This range of active cables come with a chipset housed neatly inside the HDMI® connector to ensure a consistently reliable connection between HDMI® media players, games consoles and PCs to DisplayPort monitors.

With support for resolutions up to 4096x2160@30Hz, these cables are great for creating innovative working environments, engaging educational workstations or immersive gaming experiences, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video. The additional USB Type A connector can optionally be used to amplify the power to ensure a reliable connection in all situations.

Connectors

• Connector A: HDMI® Type A Male, USB Type A Male
• Connector B: DisplayPort A Male
• Housing Material: ABS
• Connector Plating: Gold 1µm
• Pin Construction: Phosphor Bronze
• Pin Plating: Gold 15µm
• Dimensions (approx.) WxDxH:
HDMI®: 48x20.9x11.3mm (1.89x0.82x0.44in)
USB: 37.5x15.8x8mm (1.48x0.62x0.31in)
DisplayPort: 36.4x20x9.4mm (1.43x0.79x0.37in)

Cable Construction

• Length: 1m (3.28ft)
• Standard: DisplayPort 1.2
• Colour: Black
• Type: Round
• Jacket Diameter: 5.5mm (0.22in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 30AWG
• Shielding: Aluminium Braid, 85%

Specifications

• Supported Bandwidth: 10.2Gbps/225MHz
• Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
• Nominal Attenuation:
300kHz-825MHz <5dB
825MHz-2.475GHz <5dB
2.475GHz-4.125GHz <12dB
4.125GHz-5.1GHz <20dB
• Minimum Bend Radius: 55mm (2.17in)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 2
• Certified: CE, UKCA, FCC, RoHS, REACH, UL (Raw Cable) & California Proposition 65

Purchasing Information

• No.: 41425
• EAN: 4002888414258

• Product Safety Information
