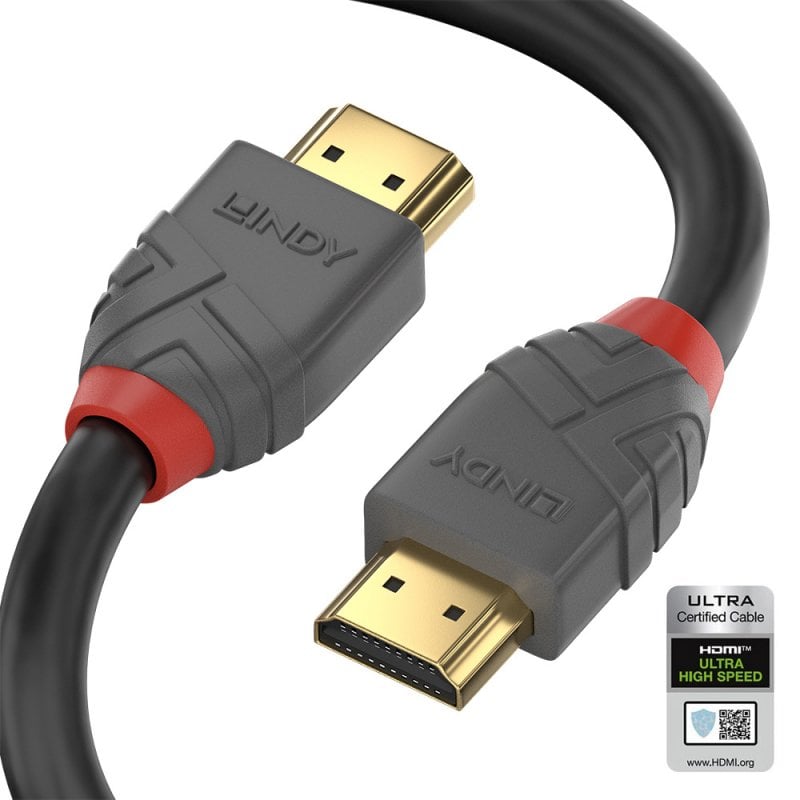

1m Ultra High Speed HDMI Cable, Anthra Line

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI® cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line HDMI® cables are premium connections that feature triple shielded with 30AWG copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 10k 10240x4320 4:2:0 12bit are supported. Anthra Line HDMI® cables are also capable of transmitting 32 channel audio and Dolby® Atmos.

The HDMI® specification is supported for 48Gbps bandwidth capacity in cable lengths up to 5m. Anthra Line HDMI® cables are available in lengths from 0.5m to 3m.

HDMI® Specification cables now support the following features:

Higher Resolutions – Now up to 10k 120Hz resolution with DSC, 8k120Hz without DSC

ALLM - automatic low latency mode – Made for Gamers, helps cut down the lag by removing advanced video processing providing the quickest response from your display.

VRR – Synchronises the source and displays refresh rate, this helps remove judder and image tearing.

Dynamic HDR – Instructed by the source a connected display can alter the HDR metadata on a scene by scene, or even frame by frame basis providing the best colour range at any time.

DSC – A high performance compression algorithm drastically reducing the signal bandwidth needed for super high resolutions.

eARC – An advanced version of ARC, using Object based audio which now provides uncompressed 7.1ch and 5.1ch and up to 192Khz, 24bit for Dolby Atmos and DTS:X

Connectors

• Connector A: HDMI® Type A Male
• Connector B: HDMI® Type A Male
• Housing Material: PVC
• Connector Plating: 24K Gold 15µm
• Pin Construction: Phosphor Copper
• Pin Plating: 24K Gold 3µm
• Dimensions (approx.) WxDxH: 20x34.2x10.9mm (0.79x1.35x0.43in)

 Cable Construction

• Length: 1m (3.28ft)
• Standard: Certified Ultra High Speed HDMI®
• Colour: Black
• Type: Round
• Jacket Diameter: 6mm (0.23in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge: 30AWG
• Shielding: Aluminium Magnesium Alloy Braid, 85%

 Specifications

• Supported Bandwidth: 48Gbps
• Maximum Resolution: 10240x4320@120Hz 4:2:0 12bit
• Nominal Attenuation:
• ≤ −5 dB from 0 GHz to 1 GHz
• −6.5 dB @ 2 GHz
• −9.2dB @ 3 GHz
• −16.5 dB @ 6 GHz
• −29 dB @ 12 GHz
• Minimum Bend Radius: 80mm (3.15in)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: 0°C - 50°C (32°F - 122°F)
• ATC Approved: Yes

 Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL (Raw Cable), ATC

 Purchasing Information

• No.: 36952
• EAN: 4002888369527

 This product is also available in other lengths:

• 36951 - 0.5m (1.64ft)
• 36952 - 1m (3.28ft)
• 36953 - 2m (6.56ft)
• 36954 - 3m (9.84ft)

• Product Safety Information
