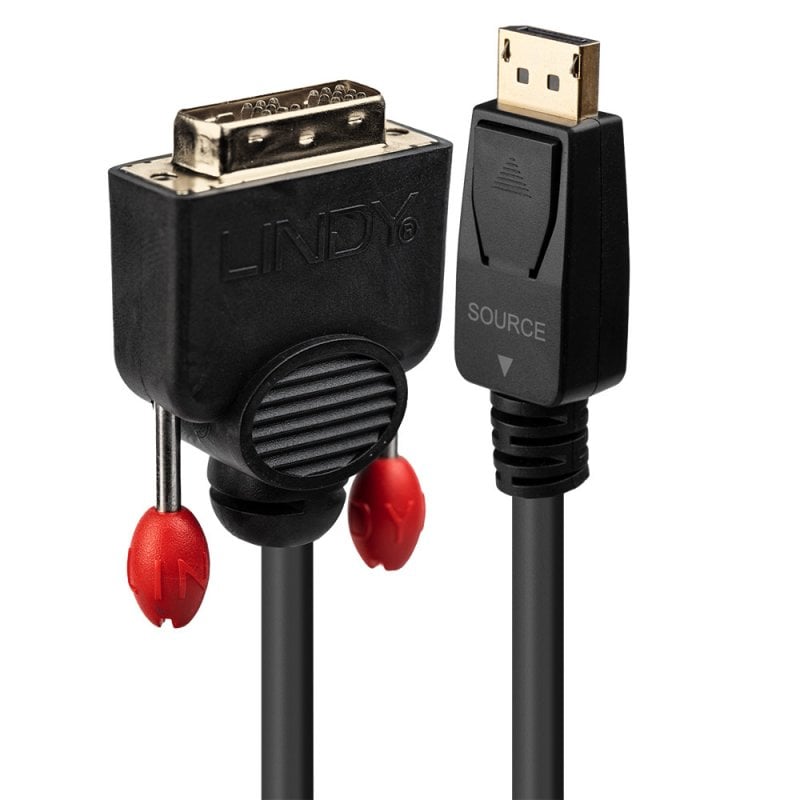

2m DisplayPort to DVI-D Adapter Cable

Part No: 41491
  • £22.27
322 In Stock Now   |
Loading...

Product Summary

  • Connects a DisplayPort equipped device to a DVI display
  • Supports resolutions up to 1920x1200@60Hz
  • Supports video mirroring and extended desktop modes
  • Male to male connections for a secure direct connection
  • 2 year warranty
The Lindy DisplayPort to DVI Cable is perfect for connecting a DisplayPort-equipped source, such as a PC or laptop, to a DVI display. It supports high-definition video resolutions up to 1920x1200@60Hz, ensuring clear and detailed visuals for your applications.

This versatile cable can also be used to add an additional display, extending the available desktop workspace and increasing productivity. Whether in a residential setup or a workplace office environment, the Lindy DisplayPort to DVI Cable provides a reliable and efficient way to expand your display options and enhance your overall workflow.

Connectors

  • Connector A: DisplayPort Male
  • Connector B: DVI-D Male
  • Housing Material:
  • DisplayPort: ABS
  • DVI: PVC
  • Connector Plating: Gold plated
  • Pin Construction: Copper
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH:
      • DisplayPort: 42x22x9.4mm (1.65x0.87x0.37in)
      DVI: 46x39.8x15.9mm (1.81x1.57x0.63in)

Cable Construction

  • Length: 2m (6.56ft)
  • Standard: DVI-D (Single Link), DisplayPort 1.1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 5.5mm (0.22in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 30AWG
  • Shielding: Aluminum Braid 85%

Specifications

  • Supported Bandwidth: 1.65Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Nominal Attenuation:
  • 300KHz-825MHz
  • 825MHz-2.475GHz
  • Minimum Bend Radius: 60mm (2.36in)
  • Operating Temperature: 0°C - 45°C (32°F - 113°F)
  • Storage Temperature:  -10°C - 80°C (14°F - 176°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Purchasing Information

  • No.: 41491
  • EAN: 4002888414913
