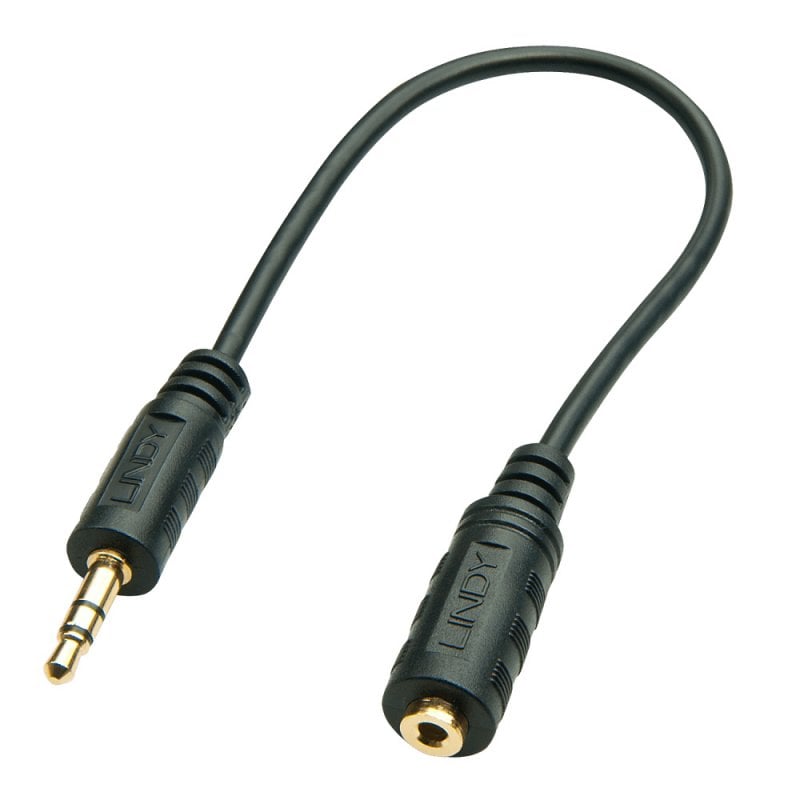

3.5mm Male to 2.5mm Female Audio Adapter

Analogue audio adapters allow for a simple connection of an audio output such as speakers, headphones or headset to an audio input.

The Lindy 3.5mm to 2.5mm audio adapter is a compact solution that allows for the connection of a variety of 2.5mm input headphones to smartphones, laptops & tablets.

The small, flexible adapter ensures the connection remains flexible and adaptable for the user.

The TRS 3.5mm connection allows for balanced mono input or output audio or unbalanced stereo audio output with connection of headphones.

Connectors

• Connector A: 3.5mm Audio (Male)
• Connector B: 2.5mm Audio (Female)
• Housing Material: PVC
• Connector Plating: Gold Plated
• Pin Construction: Brass
• Pin Plating: Gold Plated
• Dimensions (approx.) WxDxH:
• 2.5mm Connector: 18x9.4x9.4mm (0.71x0.37x0.37in)
• 3.5mm Connector: 26x11.3x11.3mm (1.02x0.44x0.44in)

Cable Construction

• Length: 0.2m (0.66ft)
• Colour: Black
• Type: Round
• Jacket Diameter: 3.5mm (0.14in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge: 28AWG
• Shielding: Copper-Covered Steel

Specifications

• Minimum Bend Radius: 20mm (0.79in)
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 65°C (-4°F - 149°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH & California Proposition 65

Purchasing Information

• No.: 35699
• EAN: 4002888356992
