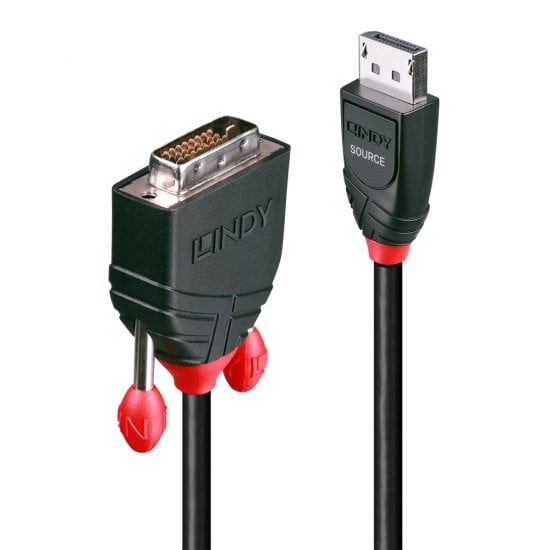

3m DisplayPort to DVI-D Adapter Cable

Part No: 41492
  • £25.82
7 In Stock Now   |
Loading...

Product Summary

  • Connects a DisplayPort equipped device to a DVI display
  • Supports resolutions up to 1920x1200@60Hz
  • Supports video mirroring and extended desktop modes
  • Male to male connections for a secure direct connection
  • 2 year warranty
The Display Port to VGA Adapter Cable is the perfect solution for connecting modern Display Port-equipped devices to older VGA displays or projectors. Whether you're looking to connect a PC, laptop, or other Display Port source to a VGA monitor, this adapter cable ensures seamless compatibility and high-quality video output. It supports video resolutions up to 1920x1200@60Hz, providing clear and detailed visuals for both professional and personal use.

The cable reliably converts digital signals from the Display Port to analogue VGA, maintaining the integrity and quality of the video signal. It is also ideal for adding another display to your setup, helping to extend your desktop workspace and enhance productivity and multitasking capabilities.

The plug-and-play design ensures simple and hassle-free installation without the need for additional drivers or software. Built with high-quality materials for durability and long-lasting performance, this cable is designed to withstand daily use. Whether for business presentations, educational environments, or home offices, the DisplayPort to VGA Adapter Cable offers modern technology with legacy display compatibility.

Connectors

  • Connector A: DisplayPort Male
  • Connector B: VGA Male
  • Housing Material:
  • DisplayPort: ABS
  • VGA: PVC
  • Connector Plating: Gold plated
  • Pin Construction: Copper
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH:
      • DisplayPort: 42x19.8x11.6mm (1.65x0.78x0.46in)
      VGA: 53x33.8x16.7mm (2.09x1.33x0.66in)

Cable Construction

  • Length: 3m (9.84ft)
  • Standard: VGA, DisplayPort 1.1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 6mm (0.24in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 28AWG
  • Shielding: Aluminum Braid 85%

Specifications

  • Supported Bandwidth: 1.65Gbps
  • Maximum Resolution: 1920x1200@60Hz
  • Nominal Attenuation:
      • 100MHz-450MHz 2.44-5.099dB
      450MHz-8100MHz  5.094-32.906dB
  • Minimum Bend Radius: 60mm (2.36in)
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature:  -10°C - 85°C (14°F - 185°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS, REACH, California Proposition 65

Purchasing Information

  • No.41942
  • EAN: 4002888414890
