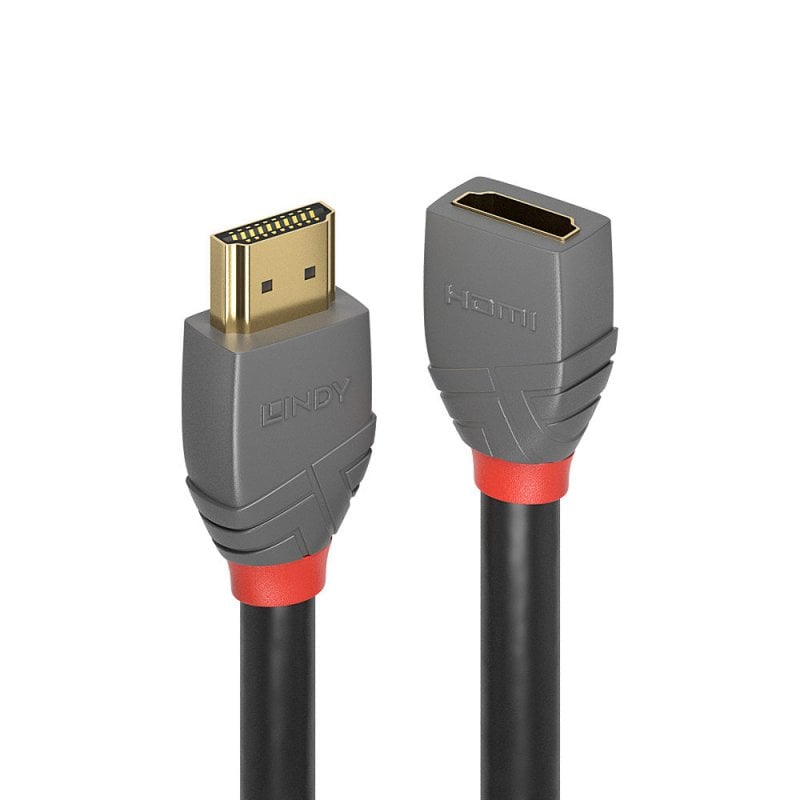

3m High Speed HDMI Extension Cable, Anthra Line

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI® cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line HDMI® cables are premium connections that feature triple shielded with 28AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI® cables are also capable of transmitting 32 channel audio and Dolby® True HD.

These HDMI® cables support 18Gbps bandwidth capacity in cable lengths from 0.5m up to 3m

Connectors:

• Connector A: HDMI® Type A Male
• Connector B: HDMI® Type A Female
• Housing Material: PVC
• Connector Plating: Gold
• Pin Construction: Copper Alloy
• Pin Plating: Gold
• Dimensions (approx.) WxDxH: M: 19.5x35.0x11.0mm (0.75x1.38x0.43in)
• F: 20.5x35.0x11.0 (0.81x1.38x0.43in)

Cable construction:

• Length: 3m (9.841ft)
• Standard: HDMI®
• Colour: Black
• Type: Round
• Jacket Diameter: 7.0mm (0.28n)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 28AWG
• Shielding: Aluminium Magnesium Alloy 85%

Specifications:

• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• Nominal Attenuation: 1.35GHz > -5.5dB (HBR1)
• 2.7GHz > -8.5dB (HBR2)
• 4.05GHz > -11.0dB (HBR3)
• Minimum Bend Radius: 70mm (2.76in)
• Operating Temperature: -10°C - 80°C (14°F - 176°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)

Miscellaneous:

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, CP65, UL (Raw Cable)

Purchasing information:

• No.: 36478
• EAN: 4002888364782

• Product Safety Information
