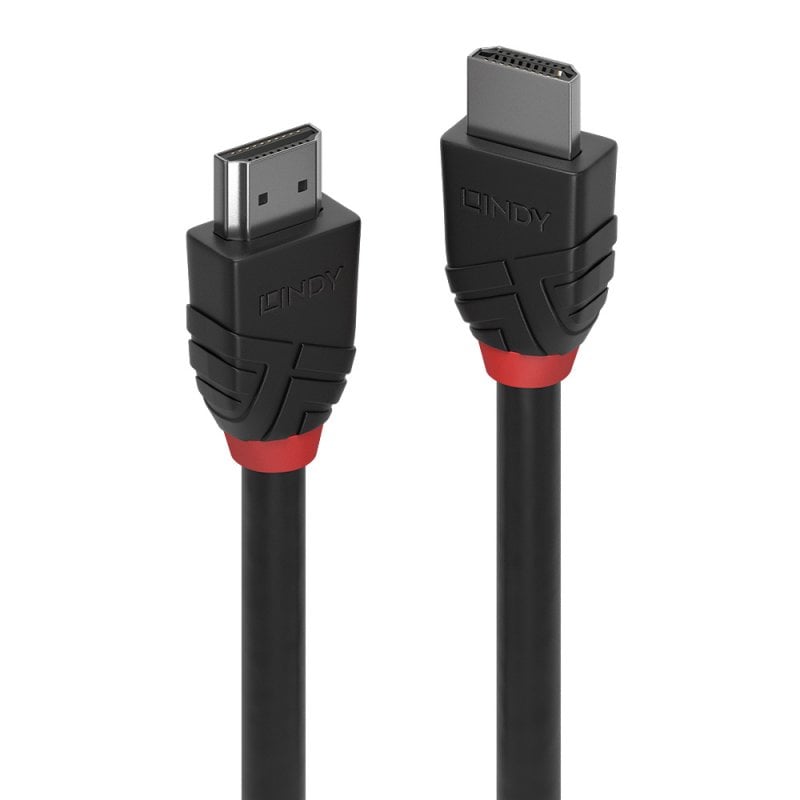

7.5m 4k60Hz HDMI Cable, LSZH

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Ideal for safety-critical installations, this cable is perfectly suited for public environments such as schools, transport hubs, and government buildings, anywhere safety compliance and performance are essential.

The cable features a double shielded construction with 28AWG bare copper for premium performance featuring gold connectors and gold flashed contacts to maintain signal integrity and reliability.

Supporting 18Gbps bandwidth the Lindy LSZH HDMI® Cable can support UHD resolutions up to 3840x2160@60Hz 4:4:4 8bit. Whilst also transmitting up to 32 Channel audio including Dolby® True HD & DTS-HD Master Audio.

The Lindy LSZH HDMI® Cable is available in lengths from 0.5m to 10m.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Connectors

• Connector A: HDMI® Type A Male
• Connector B: HDMI® Type A Male
• Housing material: LSZH PVC
• Connector plating: Gold Plating
• Pin construction: Copper Alloy
• Pin Plating: Gold Plated
• Dimensions (WxDxH): 20.3 x 35.8 x 10.5mm (0.79 x 1.40 x 0.41in)

Cable Construction

• Length: 7.5m (24.60ft)
• Standard: High Speed HDMI®
• Colour: Black
• Type: Round
• Jacket diameter: 7.0mm (0.27in)
• Jacket material: LSZH PVC
• Conductor material: Bare Copper
• Conductor gauge: 28AWG
• Shielding: Aluminum Foil
• Braid Shielding: Aluminum-Magnesium

Technical Information

• Supported bandwidth: 18Gbps
• Maximum resolution: 3840x2160@60Hz 4:4:4,8bit
• Nominal attenuation:
  • 300kHz~825MHz<5dB
  • 825MHz~2.475GHz<5dB
  • 2.475GHz~4.125GHz<12dB
  • 4.125GHz~5.1GHz<20dB
• Minimum bend radius: 60mm (2.36in)
• Operating Temperature: -10°C - 80°C (14°F - 176°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• ATC Approved: No

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS & REACH, California Proposition 65

Purchasing Information

• No.: 36506
• EAN: 4002888365062

This product is also available in other lengths

• 36501 - 0.5m (1.64ft)
• 36502 - 1m (3.28ft)
• 36503 - 2m (6.56ft)
• 36504 - 3m (9.84ft)
• 36505 - 5m (16.44ft)
• 36506 - 7.5m (24.60ft)
• 36507 - 10m (32.80ft)
