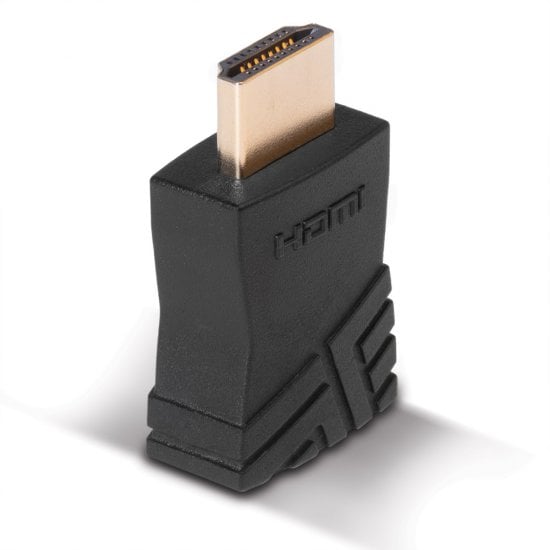

HDMI CEC Less Adapter, Female to Male

Part No: 41232
  • £10.30
504 In Stock Now   |
Loading...

Product Summary

  • Correct CEC connection issues
  • No connection on Pin 13 stops issues between your HDMI® devices and switches
  • High quality HDMI® adapter with gold plated connectors and contacts
  • HDMI® Type A Female to Male
  • HDCP compliant
  • 10 year warranty

The Lindy HDMI® CEC Less Adapter is the simple, effective solution for preventing unwanted CEC (Consumer Electronics Control) conflicts. In complex AV setups with HDMI® splitters, switches, or multiple displays, CEC signals can sometimes interfere with IR remote controls, leading to frustrating compatibility issues.

By blocking CEC signals from passing through, this adapter ensures smooth, stable operation across your installation. Simply connect it upstream of the device causing problems—no configuration required. For larger systems, multiple adapters can be used to guarantee consistent performance throughout.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.



Specifications

  • AV Interface: HDMI®
  • Interface Standard: HDMI®
  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8Bit
  • Audio EDID: LPCM 2-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz
  • HDCP Support: 2.2
  • Special Features: CEC Pin Disconnected

Connectors

  • Input: HDMI® Type A Female
  • Output: HDMI® Type A Male
  • Power: Via HDMI® Source Interface

Physical Properties

  • Dimensions (approx.) WxDxH: 20 x 40 x 10mm (0.78 x 1.57 x 0.39 in)
  • Housing Material: PVC
  • Net Weight: 0.008kg (0.02lb)
  • Operating Temperature: 0°C - 60°C (32°F - 140°F)
  • Storage Temperature: -10°C - 70°C (14°F - 158°F)
  • Humidity: 0 - 80% RH (non-condensing)
  • Power Requirements: -
  • Colour: Black

Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 136x138mm (5.35x5.43in)
  • Gross Weight: 0.013kg (0.03lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, UKCA

Package Contents

  • HDMI® NON-CEC Adapter Type A M/F
  • Lindy Manual

Purchasing Information

  • No.: 41232
  • EAN: 4002888412322
Showing 3 of our total 4 reviews, with an average rating of 5 stars. Read all 4 reviews for HDMI CEC Less Adapter, Female to Male.
Write a review ›
Review Summary - 5 out of 5 based on 4 ratings.
August 24, 2020 | Recardo
Awsome Fix

I had a huge problem for months!!My new Sony 4k TV would speak to my sound bar through Arc, hence no sound! ONLY WHEN I TURNED OFF AND ON THEN PUT THE HDMI CABLE BACK IN! I changed the sound bar 5 times .Sony didnt know what the problem was, nor did their Tec Guys! This went on for 5 months! Nightmare! This little gem when recommended to me..solved the problem in 1 secound! amazing! Very very happy!

Lindy International Ltd.
May 5, 2020 | David Picton
A simple solution to an irritating problem

CEC can be a pain sometimes. I bought an LG Blu-Ray player and connected it to a JVC TV with a soundbar. All was well until I switched off the Blu-Ray - and the sound then came out of the TV's own speakers as well as the soundbar. It sounded very odd indeed! I had a hunch that this was a CEC problem, so I bought the CEC Less Adapter. Now CEC is switched off and there are no more problems.

Lindy International Ltd.
February 10, 2017 | Matthew B
An extremely simple solution to a mind-boggling problem!

I'd been having all sorts of problems with my new home cinema setup. The Sony TV wouldn't send sound to the Onkyo receiver unless the Humax PVR was brought out of standby. If the Humax was switched back to standby the TV sound would stop after 5 minutes with a message about a "communication failure".
Someone on forum suggested this little adaptor would solve the problem, which it did. Everything now works exactly how I want it to work.
Even better, the adaptor arrived the day after I ordered it.

Lindy International Ltd.
