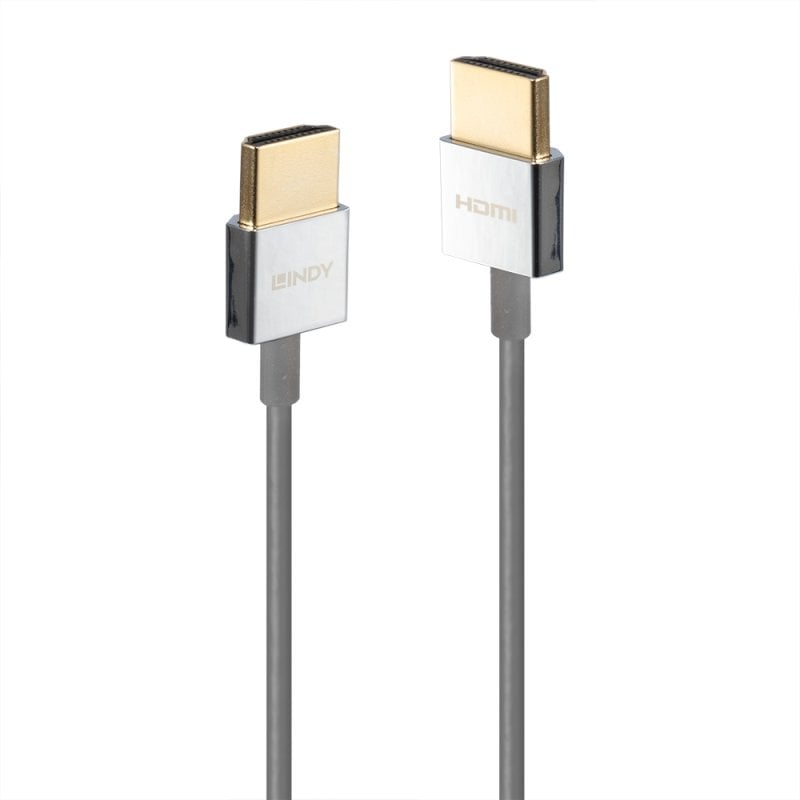

Ultra High Speed HDMI Slim Cable 1m

The Slim Ultra High Speed Cable is a high quality cable featuring gold plated contacts for better conductivity and resistance to corrosion and tarnishing

This super thin and flexible HDMI® cable has been specially designed for connection to devices in confined spaces or with restricted access to the HDMI® ports. 8K60Hz Support for immersive, lifelike clarity of your video content. HDR ( High Dynamic Range) support also provides a wider spectrum of colours, deeper black and brighter whites for perfect viewing experience for movies, Tv shows and games.

UHD resolutions up to 7680x4320@60Hz and 3840x2160@120hz are supported. Ultra high speed cable cables are also capable of transmitting 32 channel audio and Dolby® Atmos and DTS:X

The Slim form factor also reduces the weight of the cable by around 80% compared to the standard lines range cables making it perfect for connecting to awkwardly placed devices in rack, to displaying mounted close to a wall or when creating a minimalist desk or gaming setup.

HDMI® ATC (Authorised Test Centre) certified, this ensures the bandwidth stated and gives confidence in the cables ability to perform at the full HDMI® Specification

Connectors

• Connector A: HDMI® Type A Male
• Connector B: HDMI® Type A Male
• Housing Material: PVC
• Connector Plating: Gold Plating
• Pin Construction: Phosphor bronze
• Pin Plating:  1u Gold-plated
• Dimensions (approx.) WxDxH: 16.2x13.8x6.8mm (0.63x0.54x0.26in)

Cable Construction

• Length: 1m (3.28ft)
• Standard: Ultra High Speed HDMI®
• Colour: Black
• Type: Round
• Jacket Diameter: 2.8mm (0.11in)
• Jacket Material: PVC
• Conductor Material: OFC Copper
• Conductor Gauge: 38AWG
• Shielding: Tinned Copper Braid, 85%

Specifications

• Supported Bandwidth: 48Gbps
• Maximum Resolution: 7680x4320@60Hz 4:4:4, 10bit
• Special Features: Slim
• Nominal Attenuation:
  • ≤ −5 dB from 0 GHz to 1 GHz
  • −6.5 dB @ 2 GHz
  • −9.2 dB @ 3 GHz
  • −16.5 dB @ 6 GHz
  • −29 dB @ 12 GHz
• Minimum Bend Radius: 28mm (1.1in)
• Operating Temperature: 0°C - 80°C (14°F - 176°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)
• ATC Approved: Yes

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL (Raw Cable)

Purchasing Information

• No.: 36776
• EAN: 4002888367769

This product is also available in other lengths

• 36775 - 0.5m (1.64ft)
