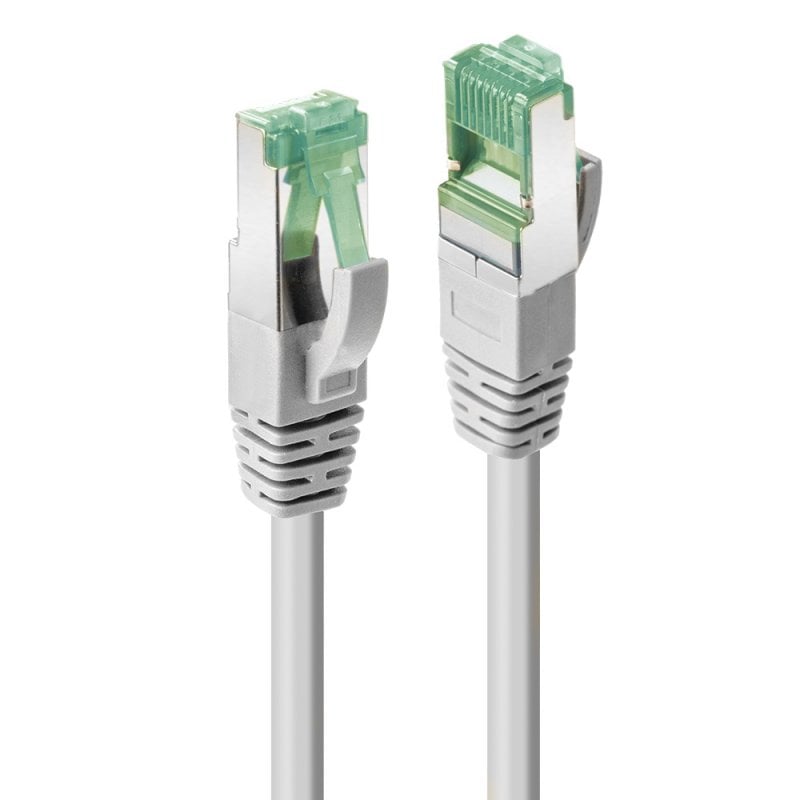

1m Cat.6A S/FTP TPE Ethernet Cable, Grey

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 Gigabit Ethernet (10GBaseT). The TPE Jacket is a more flexible alternative than PVC cables with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material and easy to install.

As part of your environmentally responsible projects, these RJ45 cables provide a sustainable alternative without compromising performance. These cables use recycled materials sourced from plastic waste. With more than 50% of the cord’s total weight made from recycled materials in the jacket, they help reduce the use of virgin resources.

Cat.6A cable, offers enhanced shielding to reduce interference and ensure optimal performance, especially in environments with high electromagnetic interference (EMI). The cable's shielding is achieved using an overall braid as well as a foil shield on each of the twisted pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a recycled polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m.

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Copper Alloy
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)

Cable Construction

• Length: 1m (3.28ft)
• Colour: Grey
• Type: Cat.6A
• Jacket Diameter: 5.8mm (0.22in)
• Jacket Material: TPE
• Conductor Material: Copper
• Conductor Gauge: 27AWG
• Shielding: Aluminium Braid + Aluminium Foil

Specifications

• Supported Bandwidth: 500MHz
• Nominal Attenuation: 49.3dB/100m @500MHz
• Minimum Band Radius: 74mm (2.91in)
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 75°C (-4°F - 167°F)

Miscellaneous

• Packaging Type: 100% Recycled Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL (Raw Cable), California Proposition 65

Purchasing Information

• No.: 47917
• EAN: 4002888479172

This product is also available in other lengths

• 47915 - 0.3m (0.98ft)
• 47916 - 0.5m (1.64ft)
• 47917 - 1m (3.28ft)
• 47918 - 1.5m (4.92ft)
• 47919- 2m (6.56ft)
• 47920 - 3m (9.84ft)
• 47921 - 5m (16.44ft)
• 47922 - 7.5m (24.61ft)
• 47923 - 10m (32.81ft)
• 47924 - 15m (49.21ft)
• 47925 - 20m (65.62ft)

• UKCA DoC 47915-47925
