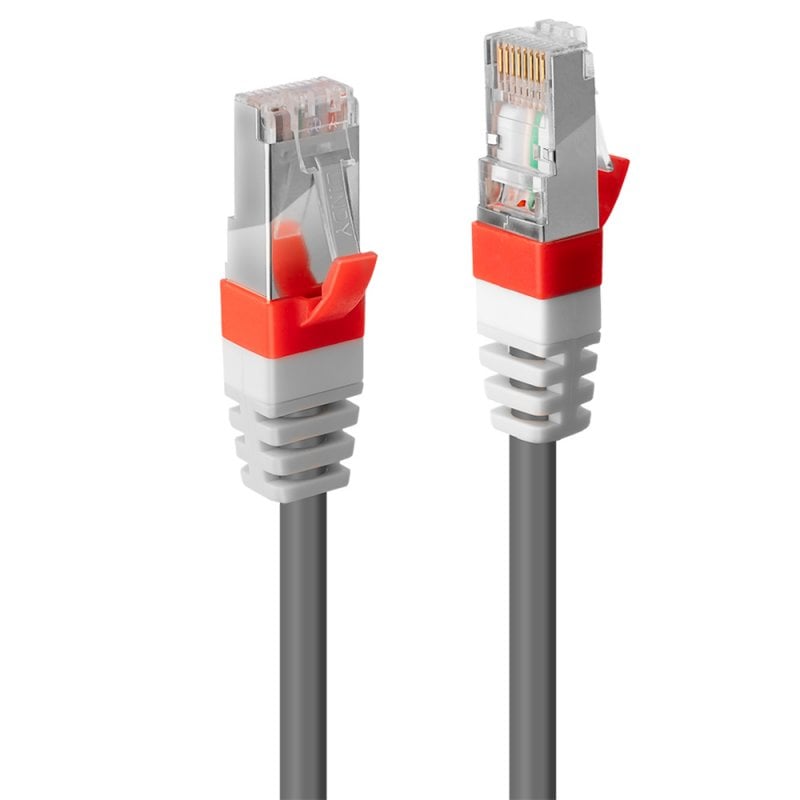

20m Cat.6A S/FTP LSZH Ethernet Cable, Grey

Part No: 45359
  • £87.55
15 In Stock Now   |
Loading...

Product Summary

  • Twisted Pair Patch Cable with RJ45 connectors and Test Report (100% Tested)
  • Cat.6A S/FTP PIMF, LSZH
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
  • 10 year warranty

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.



  • Connectors

    • Connector A: RJ45 Male
    • Connector B: RJ45 Male
    • Housing Material: Polycarbonate
    • Connector Plating: Nickel
    • Pin Construction: Brass
    • Pin Plating: Gold plated
    • Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)

    Cable Construction

    • Length: 20m (65.62ft)
    • Colour: Grey
    • Type: Cat.6A
    • Jacket Diameter: 6.2mm (0.24in)
    • Jacket Material: LSZH
    • Conductor Material: Copper
    • Conductor Gauge: 26AWG
    • Shielding: Aluminium / Polyester

    Specifications

    • Supported Bandwidth: 500MHz
    • Nominal Attenuation: 67.86dB/100m @ 500MHz
    • Minimum Bend Radius: 18.6mm (0.74in)
    • Operating Temperature: -25°C - 60°C (-43F - 140°F)
    • Storage Temperature: -25°C - 60°C (-43F - 140°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Certificated: RoHS, REACH, UL (Raw Cable)
    • Purchasing Information
    • No.: 45359
    • EAN: 4002888453592

    This product is also available in other lengths:

    • 45350 - 0.3m (0.98ft)
    • 45351  - 0.5m (1.64ft)
    • 45352 - 1m (3.28ft)
    • 45353 - 2m (6.56ft)
    • 45354 - 3m (9.84ft)
    • 45355 - 5m (16.44ft)
    • 45356 - 7.5m (24.61ft)
    • 45357 - 10m (32.81ft)
    • 45358 - 15m (49.21ft)
    • 45359 - 20m (65.62ft)
    • 45360 - 30m (98.43ft)
