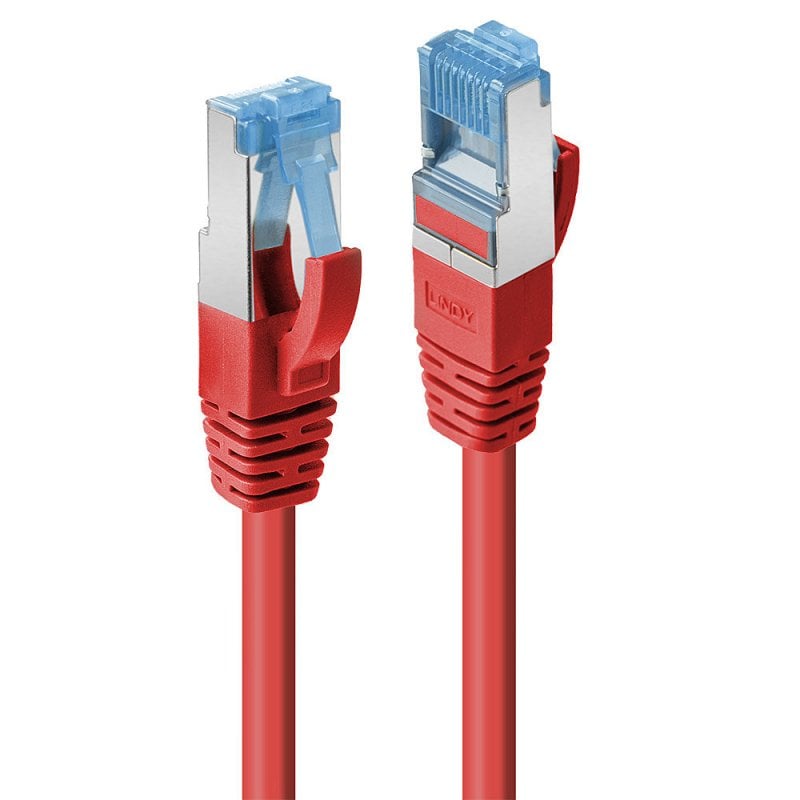

3m CAT6a S/FTP LS0H Snagless Gigabit Ethernet Cable, Red

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Available colours: Black, Blue, Grey, Red, White

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)

Cable Construction

• Length: 3m (9.84ft)
• Colour: Red
• Type: Cat.6A
• Jacket Diameter: 6.0mm (0.24in)
• Jacket Material: LSZH
• Conductor Material: Copper
• Conductor Gauge: 27AWG
• Shielding: Aluminium Braid

Specifications

• Supported Bandwidth: 500MHz
• Nominal Attenuation: 49.3dB/100m @ 500MHz
• Minimum Bend Radius: 72mm (2.84in)
• Operating Temperature: -10°C - 60°C (14F - 140°F)
• Storage Temperature: -20°C - 75°C (-4F - 167°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL (Raw Cable)

Purchasing Information

• No.: 47165
• EAN: 4002888471657

• Product Safety Information
