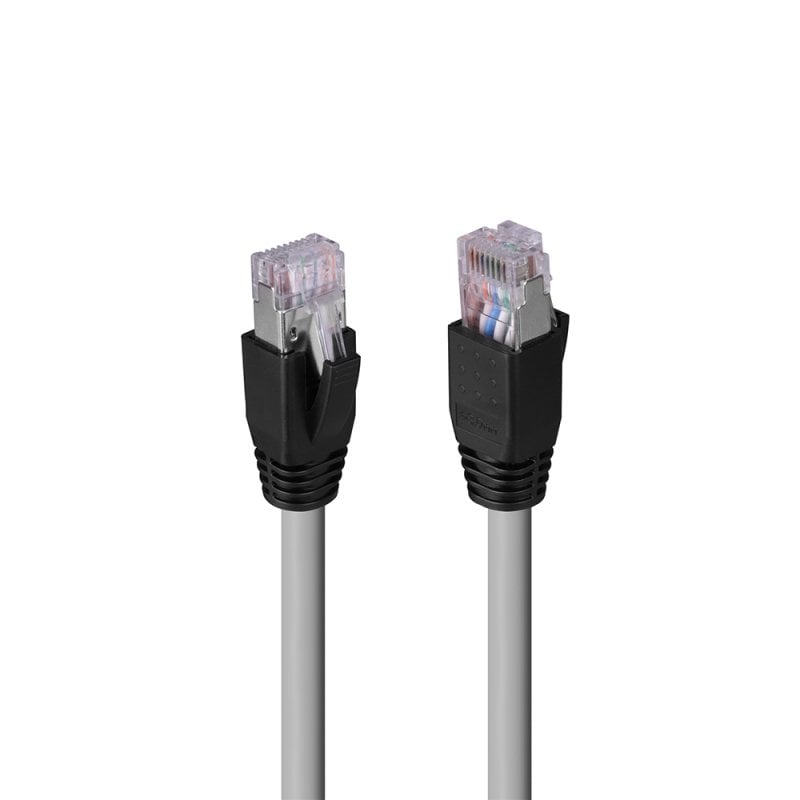

70m Cat.6A U/FTP LSZH Solid Core Ethernet Cable, Grey

Cat.6A U/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T. Cat 6A cable, shielded with foil shielded with single pair shielding (U/FTP). These cables are manufactured and tested according to the ISO/IEC 11801 specification.

Providing superior performance for HDBaseT devices and improving signal integrity, whilst providing stable electrical performance making this cable an ideal choice for high-speed data networks across a home or building. Ensuring reliable and stable signal transmission over extended distances, making it an excellent choice for professional installations where performance and dependability are paramount.

Ideal for use with HD A/V applications from HDBaseT extenders and Power over Ethernet (PoE) applications requiring higher levels of current. The HD A/V application is perfect for conference rooms and digital signage where greater distance requirements are needed between a source and a display.

Each cable consists of 4 pairs individually wrapped in a covering of high quality, strong, aluminium/polyester foil tape providing an individual screen for each pair. These are twisted together to form 4 pairs with varying lay lengths. The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Connectors

• Connector A: RJ45 Male
• Connector B: RJ45 Male
• Housing Material: Polycarbonate
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold plated
• Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)

Cable Construction

• Length: 70m (229.65ft)
• Colour: Grey
• Type: Cat.6A
• Jacket Diameter: 7.6mm (0.24in)
• Jacket Material: LSZH
• Conductor Material: Bare Copper
• Conductor Gauge: 23AWG
• Shielding: Aluminium Foil

Specifications

• Supported Bandwidth: 500MHz
• Nominal Attenuation: 49.3dB/100m @ 500MHz
• Minimum Bend Radius: 72mm (2.84in)
• Operating Temperature: -10°C - 60°C (14F - 140°F)
• Storage Temperature: -20°C - 75°C (-4F - 167°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: CE, UKCA, RoHS, REACH

Purchasing Information

• No.: 48652
• EAN: 4002888486521

This product is also available in other lengths:

• 48650 - 50m (165.68ft)
• 48651 - 60m (196.85ft)
• 48652 - 70m (229.65ft)
• 48653 - 80m (262.46ft)
• 48654 - 90m (295.27ft)
• 48655 - 100m (328.41ft)
