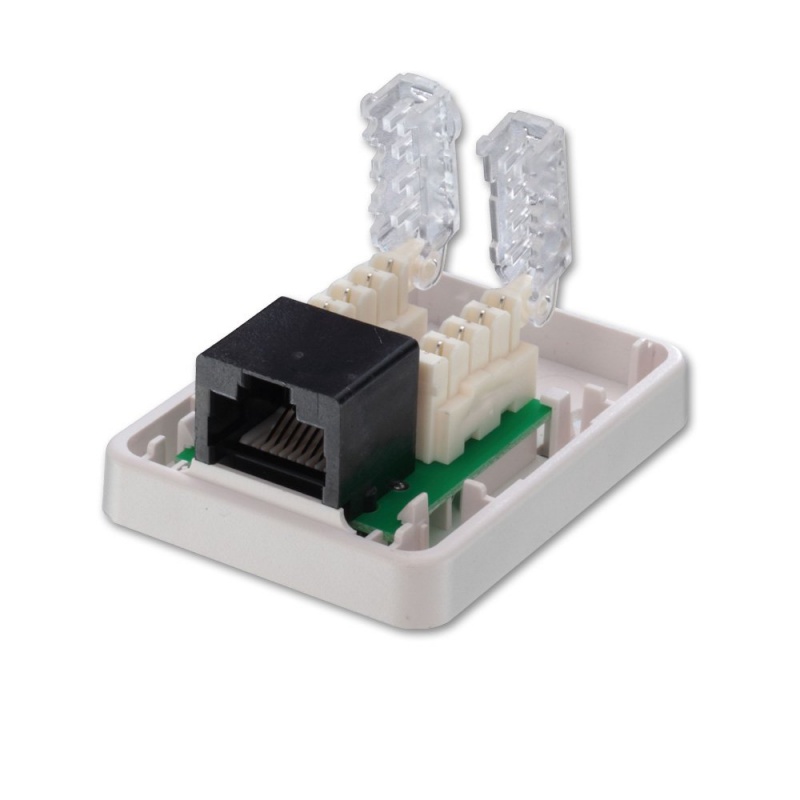

Toolless Cat.5e Surface Mount Box

Part No: 60175
  • £5.60
112 In Stock Now   |
Loading...

Product Summary

  • RJ45 to Toolless push down connector
  • For use with 22-26 AWG Cat.5e cable
  • Can also be used with 110 and Krone punch down tools
  • Colour: White
  • 2 year warranty
  • Meets C5e EIA/TIA 568B standard
  • Insulation resistance: 500M ohms (min)
  • Contact resistance: 20m ohms (max)
  • Current rating: 1.5 Amps
  • DC resistance: 0.1 ohms (max)
  • Withstanding voltage: 1000 VAC RMS @ 60Hz/1 min
  • IDC punch down cycle: over 250 cycles (min)
  • Jack insertion cycle: over 2000 cycles (min)
  • Operation temperature: -40 ~ +70 degrees C
Be the first to review Toolless Cat.5e Surface Mount Box. Write a review
