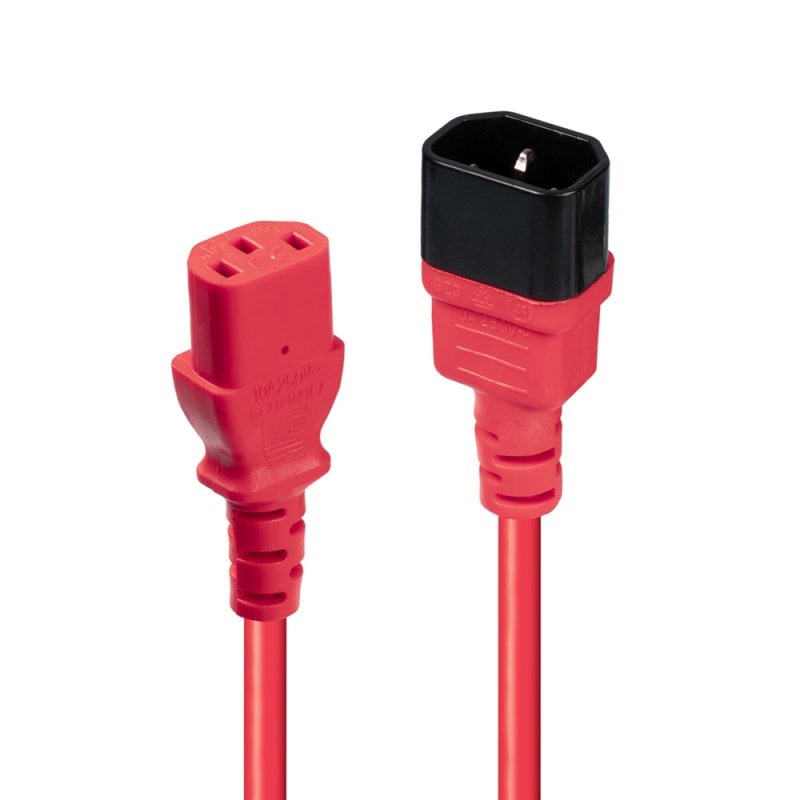

0.5m C14 to C13 Mains Extension Cable, Red

Part No: 30476
  • £4.13
92 In Stock Now   |
Loading...

Product Summary

  • IEC C14 to IEC C13 Mains Extension Cable for use in professional areas and private sectors
  • Provides max. 10A/250V to a device
  • Robust PVC housing and cable jacket, lead-free connectors (<0.1% lead in brass)
  • High temperature resistance allows the cable to be used in non air-conditioned areas
  • 10 year warranty

Lindy Power Cables are high quality, reliable power delivery connections for use in a wide variety of professional and home environments.

The IEC C13/IEC C14 connector fits to many devices, such as computers, monitors, printers, projectors and many more devices with IEC cold device ports. Therefore, these cables are perfect for use in offices, control rooms, digital signage and home theatre setups.

The brass used in the connectors has a lead content of far below 0.1% and is therefore SVHC-free, as are all other materials used in these cables.

Please note that this cable is for use in dry areas only.

IEC C14 to IEC C13 Mains Extension Cables are available in black, blue, red or orange colour. Red IEC C14 to C13 Mains Extension Cables are available in the following lengths: 0.5m, 1m and 2m.

Connectors

  • Connector A: IEC C14
  • Connector B: IEC C13
  • Housing Material:
    • A: PVC & PBT
    • B: PVC
  • Pin Construction:
    • A: Brass
    • B: Phosphor Bronze
  • Pin Plating: Nickel
  • Dimensions (approx.) WxDxH:
    • A: 28x64x21mm (1.1x2.52x0.83in)
    • B: 25.6x65x16.5mm (1.01x2.56x0.65in)

Cable Construction

  • Length: 0.5m (1.64ft)
  • Colour: Red
  • Conductor Material: Copper
  • Cable Material: H05-VVF 3G 1.0mm²
  • Number of Wires: 3
  • Wire Gauge: 0.75mm²
  • Jacket Diameter: 6.8mm (0.27in)
  • Jacket Material: PVC

Specifications

  • Rated Voltage and Current: 10A/250V
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

  • No.: 30476
  • EAN: 4002888304764

This product is also available in other lengths

  • 30476 - 0.5m (1.64ft)
  • 30477 - 1m (3.28ft)
  • 30478 - 2m (6.56ft)
