1m UK 3 Pin to C5 Mains Cable, lead free

Part No: 30460
  • £6.18
Item out of Stock   |
Loading...

Product Summary

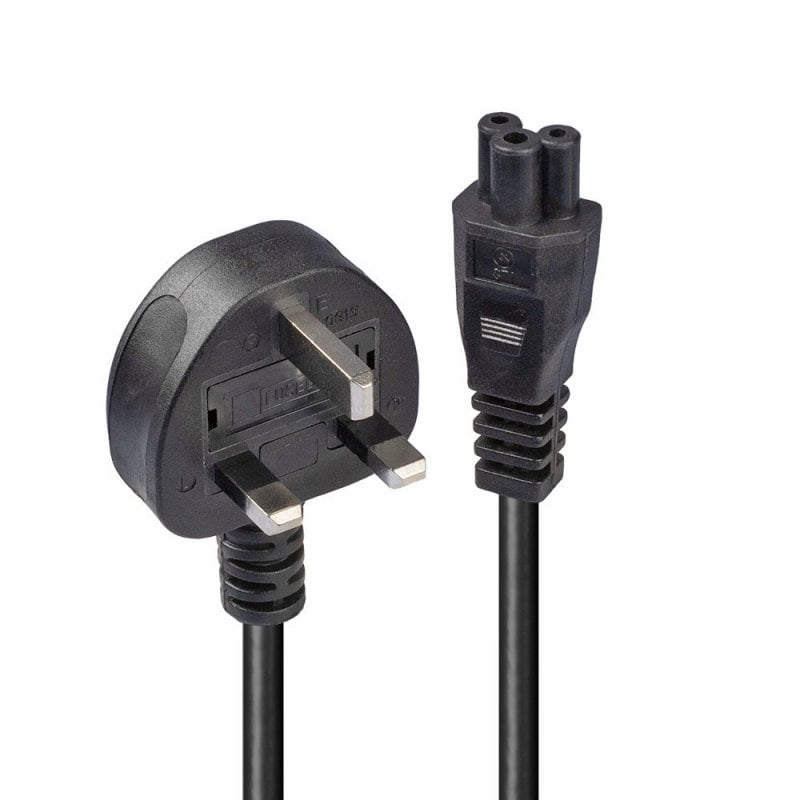

  • UK 3 Pin to IEC C5 Mains Cable for use in professional areas and private sectors
  • Provides max. 2.5A/250V, UK plug with 3A fuse
  • Robust PVC/PBT housing and PVC cable jacket, lead-free connectors (<0.1% lead in brass)
  • High temperature resistance allows the cable to be used in non air-conditioned areas
  • 10 year warranty



Lindy Power Cables are high quality, reliable power delivery connections for use in a wide variety of professional and home environments.

This cable is perfect for the connection between a notebooks' power supply and the English electricity grid. It is an ideal replacement for a missing or damaged laptop power cable as the C5 connector is used on most major laptop power supplies.

Please note that this cable is for use in dry areas only.

UK 3 Pin to IEC C5 Mains Cables are available in the following lengths: 1m, 2m and 3m.

Connectors

  • Connector A: UK 3 Pin Plug
  • Connector B: IEC C5
  • Housing Material:
    • A: PVC
    • B: PVC & PBT
  • Pin Construction:
    • A: Brass
    • B: Phosphor Bronze
  • Pin Plating: Nickel
  • Dimensions (approx.) WxDxH:
    • A: 48x69.5x21mm (1.89x2.74x0.83in)
    • B: 22.8x64x15mm (0.9x2.52x0.59in)

Cable Construction

  • Length: 1m (3.28ft)
  • Colour: Black
  • Conductor Material: Copper
  • Cable Material: H05VV-F 3G 0.75mm²
  • Number of Wires: 3
  • Wire Gauge: 0.75mm²
  • Jacket Diameter: 6.4mm (0.25in)
  • Jacket Material: PVC

Specifications

  • Rated Voltage and Current: 2.5A/250V
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

  • No.: 30460
  • EAN: 4002888304603

This product is also available in other lengths

  • 30460 - 1m (3.28ft)
  • 30409 - 2m (6.56ft)
  • 30461 - 3m (9.84ft)
