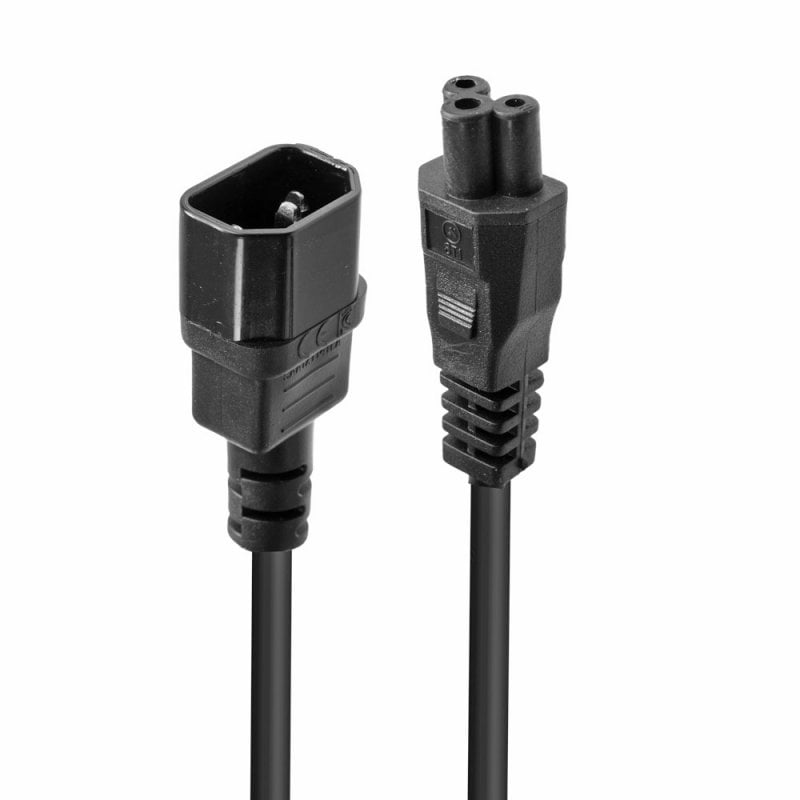

2m C5 to C14 Mains Cable, lead free

Lindy Power Cables are high quality, reliable power delivery connections for use in a wide variety of professional and home environments.

The IEC C14 connector fits to many devices with IEC C13 ports and is widely used in the IT-, Audio-, Video- and Event sector. The C5 (Mickey Mouse) connector is ideal for the connection of a notebook power supply.

The brass used in the connectors has a lead content of far below 0.1% and is therefore SVHC-free, as are all other materials used in these cables.

Please note that this cable is for use in dry areas only.

IEC C5 to IEC C14 Mains Cables are available in the following lengths: 1m, 2m, 3m and 5m.

Connectors

• Connector A: IEC C5
• Connector B: IEC C14
• Housing Material:
  - A: PVC & PBT
  - B: PVC
• Pin Construction:
  - A: Brass
  - B: Phosphor Bronze
• Pin Plating: Nickel
• Dimensions (approx.) WxDxH:
  - A: 22.8x64x15mm (0.9x2.52x0.59in)
  - B: 28.5x64x21mm (1.12x2.52x0.83in)

Cable Construction

• Length: 2m (6.56ft)
• Colour: Black
• Conductor Material: Copper
• Cable Material: H05VV-F 3G 0.75mm²
• Number of Wires: 3
• Wire Gauge: 0.75mm²
• Jacket Diameter: 6.4mm (0.25in)
• Jacket Material: PVC

Specifications

• Rated Voltage and Current: 2.5A/250V
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 30341
• EAN: 4002888303415

This product is also available in other lengths

• 30340 - 1m (3.28ft)
• 30341 - 2m (6.56ft)
• 30342 - 3m (9.84ft)
• 30343 - 5m (16.40ft)

• UKCA doc for 30340-3, 30370 C5 to C14 Mains Cables
• Product Safety Information
